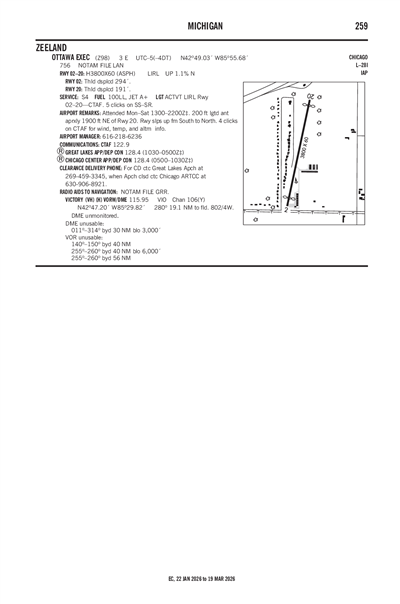

OTTAWA EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

Z98
Local Z98
OTTAWA EXEC
PublicPUB

3 miles E of ZEELAND, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 49' 02"N 85° 55' 40"W
Elevation
756' MSL
Pattern Alt
1756' MSL
Mag Variation
6°W
Declination
6°W
Fuel
JET A (FSII), 100LL
FSS
LANSING (LAN)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
KBIV (9nm) MVFR
8:53 PM EST
Overcast 2,600'
10sm
50°F
42°F
30.05"Hg
Calm
AO2 SLP182 T01000056
METAR KBIV 050153Z AUTO 00000KT 10SM OVC026 10/06 A3005 RMK AO2 SLP182 T01000056
+ Add Your Business

Z98 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT LIRL RWY 02/20 - CTAF. 5 CLICKS ON SS-SR.; 4 CLICKS ON CTAF FOR WIND, TEMP, & ALTM INFO.

Approach

GREAT LAKES APPROACH 128.4

Departure

GREAT LAKES DEPARTURE 128.4

Center

GREAT LAKES CENTER 128.4
LOW

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KGRR (18nm)
Wed, 3/4 6:40 PM EST
Wed, 3/4 7:00 PM EST - Thu, 3/5 7:00 PM EST
VFR
7:00 PM EST - 9:00 PM EST
Broken 5,000'
Scattered 3,500'
6sm
VRB° 4kts
MVFR
9:00 PM EST - 1:00 AM EST
Broken 2,500'
6sm
VRB° 4kts
MVFR
1:00 AM EST - 8:00 AM EST
Mist
Broken 1,300'
4sm
090° 5kts
LIFR
8:00 AM EST - 10:00 AM EST
Light Rain
Broken 400'
2sm
080° 8kts
LIFR
10:00 AM EST - 2:00 PM EST
Light Rain and Mist
Overcast 300'
0.75sm
080° 9kts
IFR
2:00 PM EST - 7:00 PM EST
Light Rain
Broken 500'
4sm
070° 10kts
TAF KGRR 042340Z 0500/0524 VRB04KT P6SM SCT035 BKN050
   FM050200 VRB04KT P6SM BKN025
   FM050600 09005KT 4SM BR BKN013
   FM051300 08008KT 2SM -RA BKN004
   FM051500 08009KT 3/4SM -RA BR OVC003
   FM051900 07010KT 4SM -RA BKN005
Z98
EffectiveExpiresCategoryNOTAM
Domestic
1/3/26
0036Z
6/30/26
2359Z
!LAN 01/087 Z98 OBST TOWER LGT (ASR 1001094) 425014.00N0855917.00W (2.9NM WNW Z98) 1187.7FT (479.0FT AGL) U/S 2601030036-2606302359
No
MON-SAT 0800-1700
PHP INC
5923 BYRON RD
ZEELAND, MI 49464
Phone: 616-437-3414
BRAD PUGH
5923 BYRON RD
ZEELAND, MI 49464
Phone: 616-218-6236
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
ACTVT LIRL RWY 02/20 - CTAF. 5 CLICKS ON SS-SR.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 02/20

3800 ft. x 60 ft.
ASPH
Good
NONE
LOW

--
--
--
--
  Runway 02 Runway 20
True Heading 12°192°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 42° 48' 43"N 42° 49' 20"N
Longitude 85° 55' 46"W 85° 55' 35"W
Elevation 715' 756'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RWY SLPS UP FM SOUTH TO NORTH.
A110-4200 FT LGTD ANT APRXLY 1900 FT NE OF RWY 20.
A110-5FOR CD CTC GREAT LAKES APCH AT 269-459-3344, WHEN APCH CLSD CTC CHICAGO ARTCC AT 630-906-8921.
A110-64 CLICKS ON CTAF FOR WIND, TEMP, & ALTM INFO.
A57-02APCH RATIO 20:1 TO DTHR.
A57-20APCH RATIO 20:1 TO DTHR.
A58-02+16 FT ROAD, 125 FT DIST, 125 FT L/R; 8 FT SEASONAL CROPS.
A81-APTACTVT LIRL RWY 02/20 - CTAF. 5 CLICKS ON SS-SR.
E111SEE ASP LTR DATED 3/7/94.
OTTAWA EXEC (IATA: Z98) is a public airport located in ZEELAND, MI, US.
