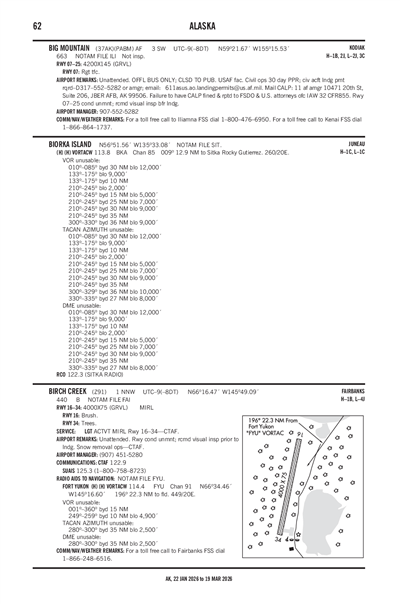

BIRCH CREEK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

Z91
IATA KBCLocal Z91
BIRCH CREEK
PublicPUB

1 miles NNW of BIRCH CREEK, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
66° 16' 28"N 145° 49' 05"W
Elevation
440' MSL
Pattern Alt
1440' MSL
Mag Variation
17°E
Declination
16°E
Fuel
None Listed
FSS
FAIRBANKS (FAI)
Sectional
FAIRBANKS
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PFYU (23nm) VFR
4:56 PM AKST
Clear
10sm
0°F
-13°F
30.03"Hg
060° 6kts
AO2 SLP196 T11781250
METAR PFYU 040156Z 06006KT 10SM CLR M18/M25 A3003 RMK AO2 SLP196 T11781250
+ Add Your Business

Z91 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RWY 16/34 - CTAF.; SNOW REMOVAL OPS - CTAF.

FAA A/FD Pages

Terminal Area Forecast

PAFB (97nm)
Tue, 3/3 3:45 PM AKST
Tue, 3/3 3:00 PM AKST - Wed, 3/4 8:00 PM AKST
VFR
3:00 PM AKST - 12:00 PM AKST
Sky Clear
6sm
29.56"Hg
030° 12kts
Light Turbulence: 1,000 - 6,000'
MVFR
Temporary 6:00 AM AKST - 10:00 AM AKST
Mist
Few 400'
3.73sm
Calm
MVFR
Becoming 12:00 PM AKST - 8:00 PM AKST
Broken 3,000'
6sm
29.53"Hg
VRB° 5kts
TAF AMD PAFB 040045Z 0400/0505 03012KT 9999 SKC 510105 QNH2957INS
   TEMPO 0415/0419 6000 BR FEW004
   BECMG 0421/0422 VRB05KT 9999 BKN030 620305 QNH2952INS TXM16/0400Z TXN38/0416Z
Z91
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99709
Phone: (907) 451-5280
JASON LUDINGTON
2301 PEGER RD
FAIRBANKS, AK 99709
Phone: (907) 451-5280
FAIRBANKS FSS (FAI)
Toll Free: 1-866-248-6516
FAI
--
ACTVT MIRL RWY 16/34 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 16/34

4000 ft. x 75 ft.
GRAVEL
Good
NONE
MED

--
--
--
--
  Runway 16 Runway 34
True Heading 191°11°
Traffic Pattern
Markings
Markings Condition
Latitude 66° 16' 47"N 66° 16' 09"N
Longitude 145° 48' 56"W 145° 49' 15"W
Elevation 440' 440'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1SNOW REMOVAL OPS - CTAF.
A110-2RWY COND UNMNT; RCMD VISUAL INSP PRIOR TO LNDG.
A110-3SUAIS - 125.3, 1-800-758-8723.
A81-APTACTVT MIRL RWY 16/34 - CTAF.
BIRCH CREEK (IATA: Z91) is a public airport located in BIRCH CREEK, AK, US.
