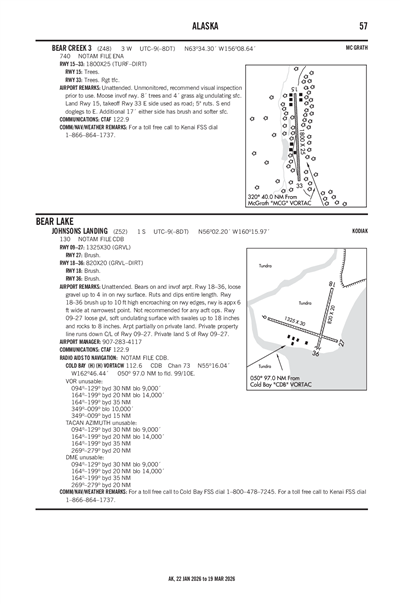

JOHNSONS LANDING - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

Z52
Local Z52
JOHNSONS LANDING
PublicPUB

1 miles S of BEAR LAKE, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
56° 02' 12"N 160° 15' 58"W
Elevation
130' MSL
Pattern Alt
1130' MSL
Mag Variation
11°E
Declination
18°E
Fuel
None Listed
FSS
COLD BAY (CDB)
Sectional
KODIAK
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PAOU (30nm) MVFR
4:56 PM AKST
Light Snow
Overcast 1,800'
8sm
14°F
9°F
29.78"Hg
290° 10kts
AO2 SLP083 P0000 T11001128 FZRANO
METAR PAOU 040156Z AUTO 29010KT 8SM -SN OVC018 M10/M13 A2978 RMK AO2 SLP083 P0000 T11001128 FZRANO
+ Add Your Business

Z52 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

PASD (44nm)
Tue, 3/3 2:20 PM AKST
Tue, 3/3 3:00 PM AKST - Wed, 3/4 3:00 PM AKST
VFR
3:00 PM AKST - 3:00 PM AKST
Sky Clear
6sm
330° 10kts
TAF PASD 032320Z 0400/0424 33010KT P6SM SKC
Z52
No NOTAM Available
No
UNATNDD
PUBLIC DOMAIN
P.O. BOX 1267
KENAI, AK 99611
Phone: 907-283-4117.
WARREN JOHNSON
P.O. BOX 1267
KENAI, AK 99611
Phone: 907-283-4117
COLD BAY FSS (CDB)
Toll Free: 1-800-478-7250
CDB
--
--
N/A
No
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Cargo Handling

Runway 09/27

1325 ft. x 30 ft.
GRAVEL
Poor
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

820 ft. x 20 ft.
GRVL DIRT
Poor
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11ARPT PARTIALLY ON PRIVATE LAND. PRIVATE OWNER WARREN JOHNSON.
A110-2PRIVATE PROPERTY LINE RUNS DOWN C/L OF RWY 09/27. PRIVATE LAND S OF RWY 09/27.
A110-3BEARS ON & INVOF ARPT.
A32-18/36BRUSH UP TO 10 FT HIGH ENCROACHING ON RWY EDGES, RWY IS APPX 6 FT WIDE AT NARROWEST POINT. NOT RECOMMENDED FOR ANY ACFT OPS.
A33-09/27_CONDLOOSE GRVL, SOFT UNDULATING SURFACE WITH SWALES UP TO 18 INCHES & ROCKS TO 8 INCHES.
A33-18/36_CONDRWY 18/36. LOOSE GRAVEL UP TO 4 IN ON RWY SURFACE. RUTS AND DIPS ENTIRE LENGTH.
E111PENDING.
JOHNSONS LANDING (IATA: Z52) is a public airport located in BEAR LAKE, AK, US.
