iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

Y72
BLOYER FLD
PublicPUB

1 miles E of TOMAH, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 58' 34"N 90° 28' 50"W
966' MSL
1966' MSL
00E
100LL
GREEN BAY (GRB)
CHICAGO
CHICAGO (ZAU)
10/31/24-11/28/24
KVOK (10nm) LIFR
5:55 AM CST
Freezing Fog
Clear
0.38sm
31°F
30°F
30.25"Hg
Calm
AO2 SLP257 T10041010 10024 21023 56005 $
KVOK 091155Z AUTO 00000KT 3/8SM R27/1800V2800FT FZFG CLR M00/M01 A3025 RMK AO2 SLP257 T10041010 10024 21023 56005 $
Add Your Business

Y72 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

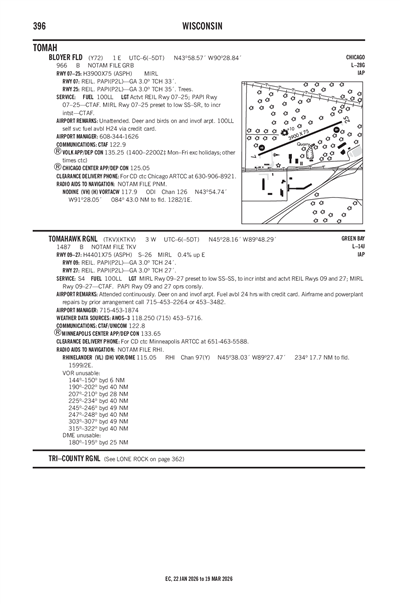

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KVOK (10nm)
Sat, 11/9 5:30 AM CST
Sat, 11/9 5:00 AM CST - Sun, 11/10 9:00 AM CST
VFR
5:00 AM CST - 10:00 AM CST
Scattered 4,000'
6sm
30.24"Hg
120° 6kts
LIFR
Temporary 5:00 AM CST - 9:00 AM CST
Mist
No Clouds
0.75sm
Calm
VFR
Becoming 10:00 AM CST - 9:00 PM CST
Broken 16,000'
6sm
30.27"Hg
130° 6kts
VFR
Becoming 9:00 PM CST - 9:00 AM CST
Overcast 20,000'
Broken 14,000'
Scattered 2,000'
6sm
30.24"Hg
140° 6kts
TAF AMD KVOK 091130Z 0911/1015 12006KT 9999 SCT040 QNH3025INS
   TEMPO 0911/0915 1200 BR
   BECMG 0916/0917 13006KT 9999 BKN160 QNH3026INS
   BECMG 1003/1004 14006KT 9999 SCT020 BKN140 OVC200 QNH3024INS TX15/0920Z TNM03/0912Z
Y72
Domestic
11/3/242216Z !GRB 11/034 Y72 OBST TOWER LGT (ASR 1293098) 440829.90N0903226.40W (10.3NM NNW Y72) 1307.7FT (259.8FT AGL) U/S 2411032216-2412182216
FDC
10/4/241231Z !FDC 4/4745 Y72 IAP BLOYER FLD, TOMAH, WI.
RNAV (GPS) RWY 25, ORIG...
DELETE ADDITIONAL FLIGHT DATA NOTE: FALLS 1 MOA AND FALLS 2 MOA.
DELETE NOTE: DME/DME RNP-0.3. PBN REQUIREMENTS NOTE: RNP APCH-GPS.
CHANGE HELICOPTER NOTE TO READ: RWY 7 HELICOPTER VISIBILITY
REDUCTION BELOW 1 SM NOT AUTHORIZED. CHANGE NOTE TO READ: OBTAIN
LOCAL ALTIMETER SETTING ON CTAF, WHEN NOT RECEIVED, USE CMY
ALTIMETER SETTING AND INCREASE ALL MDAS 20 FEET. 20:1 IS NOT CLEAR.
THIS IS RNAV (GPS) RWY 25, ORIG-A. 2410041231-PERM
10/4/241229Z !FDC 4/4739 Y72 IAP BLOYER FLD, TOMAH, WI.
RNAV (GPS) RWY 7, ORIG...
DELETE ADDITIONAL FLIGHT DATA NOTE: FALLS 1 MOA AND FALLS 2 MOA.
DELETE NOTE: DME/DME RNP-0.3. PBN REQUIREMENTS NOTE: RNP APCH-GPS.
CHANGE HELICOPTER NOTE TO READ: RWY 7 HELICOPTER VISIBILITY
REDUCTION BELOW 1 SM NOT AUTHORIZED. CHANGE NOTE TO READ: OBTAIN
LOCAL ALTIMETER SETTING ON CTAF, WHEN NOT RECEIVED, USE CMY
ALTIMETER SETTING AND INCREASE ALL MDAS 20 FEET, INCREASE LNAV
VISIBILITY CAT C 1/8 SM. 20:1 IS NOT CLEAR.
THIS IS RNAV (GPS) RWY 7, ORIG-A. 2410041229-PERM
No
UNATNDD
CITY OF TOMAH
819 SUPERIOR AVE
TOMAH, WI 54660
Phone: 608-374-7440
KIRK ARITY
819 SUPERIOR AVE.
TOMAH, WI 54660
Phone: 608-374-7440
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
GRB
--
MIRL RWY 07/25 PRESET TO LOW INTST SS-SR; TO INCR INTST & ACTVT REIL RWY 7 & 25; PAPI RWY 07 & 25 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 07/25

3900 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 07 Runway 25
True Heading 68°248°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 58' 27"N 43° 58' 42"N
Longitude 90° 29' 15"W 90° 28' 25"W
Elevation 966' 962'
Threshold Crossing Height 33 ft. AGL 35 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1DEER & BIRDS ON & INVOF AIRPORT.
A110-2FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
BLOYER FLD (IATA: Y72) is a public airport located in TOMAH, WI.
