X43
SUNRAY
Public
PUB
1 miles NW of SUNRAY, TX
View on
Map
Status
Operational
Coordinates
36° 01' 45"N
101° 49' 44"W
Elevation
3507' MSL
Pattern Alt
4507' MSL
Mag Variation
09E
Fuel
None Listed
FSS
FORT WORTH (FTW)
Sectional
WICHITA
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
7/11/24-8/8/24
KBGD (29nm)
VFR
5:51 AM CDT
RAW
Clear
Viz
10sm
Temp
77°F
Dew
65°F
Pres
29.91"Hg
Wind
190° 4kts
RMK
AO2 SLP073 T02500183
KBGD 191051Z AUTO 19004KT 10SM CLR 25/18 A2991 RMK AO2 SLP073 T02500183
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
X43 FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

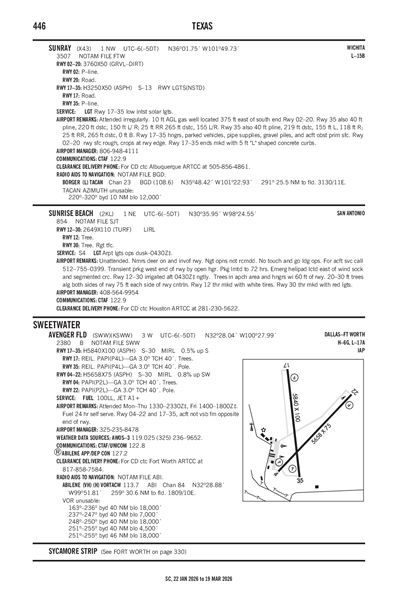

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KDHT (35nm)
RAW
Reported
Thu, 9/19 12:23 AM CDT
Valid
Thu, 9/19 1:00 AM CDT - Fri, 9/20 1:00 AM CDT
VFR
1:00 AM CDT - 11:00 AM CDT
Sky Clear
Viz
6sm
Wind
250° 7kts
VFR
11:00 AM CDT - 4:00 PM CDT
Few 25,000'
Viz
6sm
Wind
330° 7kts
VFR
4:00 PM CDT - 1:00 AM CDT
Few 25,000'
Viz
6sm
Wind
VRB° 6kts
KDHT 190523Z 1906/2006 25007KT P6SM SKC
FM191600 33007KT P6SM FEW250
FM192100 VRB06KT P6SM FEW250
X43
No NOTAM Available
ATC Tower
No
Attendance
IREG
Owner
CITY OF SUNRAY
PO BOX 250
SUNRAY, TX 79086
Phone: 806-948-4111
Manager
KJ PERRY
PO BOX 250
SUNRAY, TX 79086
Phone: 806-948-4111
FSS
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
NOTAM
FTW
Light Schedule
Sunset to Sunrise
Lights
--
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
None
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
11
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Pilot Instruction
Runway 02/20
Dimensions
3760 ft. x 50 ft.
Surface Type
GRVL DIRT
Surface Cond
Poor
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 02
Runway 20
True Heading
Not Listed
Not Listed
Traffic Pattern
Left
Left
Markings
Markings Condition
Latitude
N/A
N/A
Longitude
N/A
N/A
Elevation
--
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway 17/35
Dimensions
3250 ft. x 50 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
NSTD
Pavement Class
Single Wheel
13,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 17
Runway 35
True Heading
Not Listed
Not Listed
Traffic Pattern
Left
Left
Markings
BSC
BSC
Markings Condition
FAIR
FAIR
Latitude
N/A
N/A
Longitude
N/A
N/A
Elevation
--
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
RWY 17/35 HNGRS, PARKED VEHICLES, PIPE SUPPLIES, GRAVEL PILES & ACFT OBST PRIM SFC.
A110-2
10 FT AGL GAS WELL LCTD 375 FT EAST OF SOUTH END RWY 02/20.
A110-3
FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A110-4
RWY 35 ALSO 40 FT PLINE, 220 FT DSTC, 150 FT L/R; 25 FT RR 265 FT DSTC, 155 L/R.
A110-5
RWY 35 ALSO 40 FT PLINE, 219 FT DSTC, 155 FT L, 118 FT R; 25 FT RR, 265 FT DSTC, 0 FT B.
A110-6
RWY 17/35 ENDS MKD WITH TWO 5 FT "L" SHAPED CONCRETE CURBS.
SUNRAY (IATA: X43) is a public airport located in SUNRAY, TX.
