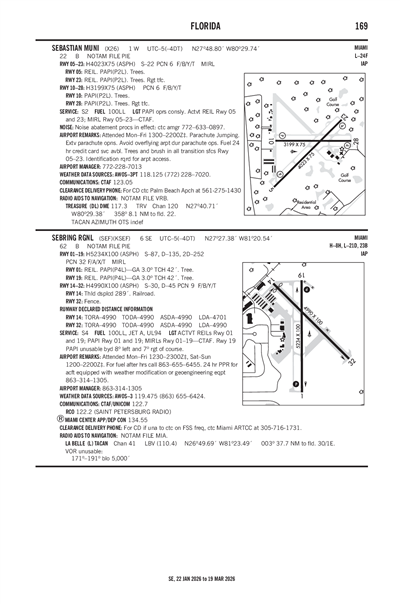

SEBASTIAN MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

X26
Local X26
SEBASTIAN MUNI
PublicPUB

1 miles W of SEBASTIAN, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
27° 48' 48"N 80° 29' 44"W
Elevation
22' MSL
Pattern Alt
1022' MSL
Mag Variation
7°W
Declination
6°W
Fuel
100LL
FSS
SAINT PETERSBURG (PIE)
Sectional
MIAMI
ARTCC
MIAMI (ZMA)
Data Effective
2/19/26-3/19/26
KX26 VFR
10:35 PM EST
Clear
10sm
68°F
68°F
30.24"Hg
080° 4kts
AO2
METAR KX26 040335Z AUTO 08004KT 10SM CLR 20/20 A3024 RMK AO2
+ Add Your Business

X26 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.125
(772) 228-7020

Common

CTAF 123.05
PAPI OPRS CONSLY. ACTVT REIL RWY 5 & 23; MIRL RWY 5/23 - CTAF.

Approach

MIAMI APPROACH 123.625
NORTH

Departure

MIAMI DEPARTURE 123.625
NORTH

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KVRB (10nm)
Tue, 3/3 6:20 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
7:00 PM EST - 10:00 AM EST
Showers in vicinity
Scattered 3,000'
6sm
080° 9kts
VFR
10:00 AM EST - 7:00 PM EST
Scattered 3,000'
6sm
100° 12kts
TAF KVRB 032320Z 0400/0424 08009KT P6SM VCSH SCT030
   FM041500 10012KT P6SM SCT030
X26
No NOTAM Available
No
MON-FRI 0800-1700
CITY OF SEBASTIAN
1225 MAIN STREET
SEBASTIAN, FL 32958
Phone: 772-638-8820
JEFFREY SABO
202 AIRPORT DRIVE EAST
SEBASTIAN, FL 32958
Phone: 772-228-7013
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
PIE
--
PAPI OPRS CONSLY. ACTVT REIL RWY 5 & 23; MIRL RWY 5/23 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Charter Service
Pilot Instruction
Parachute Jump Activity
Aircraft Rental

Runway 05/23

4023 ft. x 75 ft.
ASPH
Excellent
NONE
MED
6/F/B/Y/T
22,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 45°225°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 27° 48' 31"N 27° 48' 59"N
Longitude 80° 30' 01"W 80° 29' 29"W
Elevation 18' 22'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 10/28

3199 ft. x 75 ft.
ASPH
Fair
NONE

6/F/B/Y/T
--
--
--
--
  Runway 10 Runway 28
True Heading 90°270°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 27° 48' 51"N 27° 48' 51"N
Longitude 80° 30' 00"W 80° 29' 25"W
Elevation 18' 21'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11CTC PERSON: BRIAN BENTON 772-638-8820
A110-2TREES & BRUSH IN ALL TRSN SFCS RWY 5/23.
A110-3NOISE ABATEMENT PROCS IN EFCT: CTC AMGR 772-633-0897.
A110-4IDENTIFICATION RQR FOR ARPT ACCESS.
A110-5EXTSV PRCHT OPNS. AVOID OVERFLYING ARPT DURG PRCHT OPNS.
A110-6FOR CD CTC PALM BEACH APCH AT 561-275-1430
A57-10RWY 10 APRCH SLOPE 24:1 TO AER.
A70-100LLFUEL 24 HR CREDIT CARD SVC AVBL.
A81-APTPAPI OPRS CONSLY. ACTVT REIL RWY 5 & 23; MIRL RWY 5/23 - CTAF.
E111EXISTED PRIOR TO 1959.
SEBASTIAN MUNI (IATA: X26) is a public airport located in SEBASTIAN, FL, US.
