X23
UMATILLA MUNI
PublicPUB

1 miles E of UMATILLA, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
28° 55' 29"N 81° 39' 06"W
106' MSL
1106' MSL
07W
100LL, 100
SAINT PETERSBURG (PIE)
JACKSONVILLE
JACKSONVILLE (ZJX)
4/17/25-5/15/25
KLEE (10nm) VFR
5:53 PM EST
Clear
10sm
74°F
59°F
30.11"Hg
100° 3kts
AO2 SLP193 T02330150
METAR KLEE 082253Z 10003KT 10SM CLR 23/15 A3011 RMK AO2 SLP193 T02330150
+ Add Your Business

X23 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

No frequencies available for this airport.

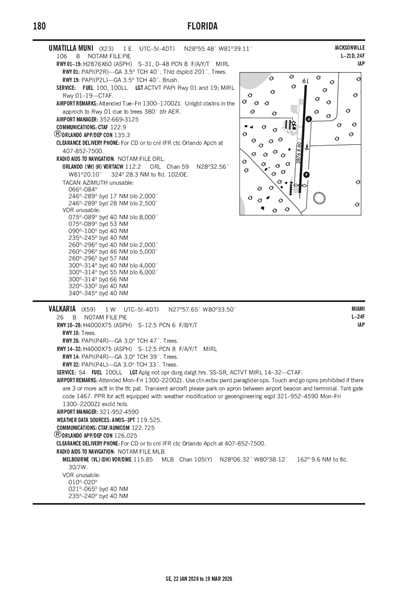

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KLEE (10nm)
Thu, 1/8 12:23 PM EST
Thu, 1/8 1:00 PM EST - Fri, 1/9 1:00 PM EST
VFR
1:00 PM EST - 7:00 PM EST
Scattered 25,000'
Scattered 3,500'
6sm
130° 5kts
VFR
7:00 PM EST - 10:00 AM EST
Scattered 25,000'
Scattered 6,000'
6sm
VRB° 3kts
IFR
Temporary 4:00 AM EST - 7:00 AM EST
Mist
Scattered 300'
1sm
Calm
VFR
10:00 AM EST - 1:00 PM EST
Scattered 3,000'
6sm
150° 6kts
TAF KLEE 081723Z 0818/0918 13005KT P6SM SCT035 SCT250
   FM090000 VRB03KT P6SM SCT060 SCT250
   TEMPO 0909/0912 1SM BR SCT003
   FM091500 15006KT P6SM SCT030
X23
EffectiveExpiresCategoryNOTAM
Domestic
12/21/25
1110Z
2/4/26
1109Z
!PIE 12/258 X23 OBST TOWER LGT (ASR 1323124) 285955.35N0813851.41W (4.4NM NE X23) 280FT (199FT AGL) U/S 2512211110-2602041109
12/18/25
0249Z
4/17/26
0249Z
!PIE 12/228 X23 OBST TOWER LGT (ASR 1027963) 290807.00N0815330.40W (17.5NM NW X23) 350.7FT (238.8FT AGL) U/S 2512180249-2604170249
12/6/25
1635Z
3/6/26
0500Z
!PIE 12/091 X23 OBST TOWER LGT (ASR 1203999) 290007.10N0813158.80W (7.9NM NE X23) 265.1FT (199.1FT AGL) U/S 2512061635-2603060500
10/9/25
1219Z
1/8/26
0400Z
!PIE 10/105 X23 OBST TOWER LGT (ASR 1028825) 285500.00N0814051.10W (1.6NM WSW X23) 291.7FT (212.9FT AGL) U/S 2510091219-2601080400
No
TUE-FRI 0800-1200
CITY OF UMATILLA
PO BOX 2286
UMATILLA, FL 32784-2286
Phone: 352-669-3125
AARON MERCER
PO BOX 2286
UMATILLA, FL 32784-2286
Phone: 352-669-3125
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
PIE
--
ACTVT PAPI RWY 01 & 19; MIRL RWY 01/19- CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction

Runway 01/19

2876 ft. x 60 ft.
ASPH
Excellent
NONE
MED
8 /F/A/Y/T
31,000lbs
48,000lbs
--
--
  Runway 01 Runway 19
True Heading 3°183°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 28° 55' 15"N 28° 55' 43"N
Longitude 81° 39' 07"W 81° 39' 06"W
Elevation 101' 106'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.5° 3.5°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD OR TO CNL IFR CTC ORLANDO APCH AT 407-852-7500.
A15AIRPORT PHYSICAL ADDRESS: 1 UMATILLA AIRPORT WAY, UMATILLA, FL 32784
A57-01RWY 01 APCH SLP 16:1 TO DTHR.
A57-19RWY 19 APCH SLP 24:1 TO DTHR.
A81-APTACTVT PAPI RWY 01 & 19; MIRL RWY 01/19- CTAF.
E111EXISTED PRIOR TO 1959.
UMATILLA MUNI (IATA: X23) is a public airport located in UMATILLA, FL.
