No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

X21
ARTHUR DUNN AIR PARK
PublicPUB

2 miles NW of TITUSVILLE, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
28° 37' 21"N 80° 50' 07"W
30' MSL
830' MSL
05W
JET A, 100LL
SAINT PETERSBURG (PIE)
JACKSONVILLE
MIAMI (ZMA)
4/17/25-5/15/25
KTIX (7nm) VFR
6:47 AM EDT
Sky Clear
7sm
77°F
75°F
29.94"Hg
220° 5kts
KTIX 241047Z 22005KT 7SM SKC 25/24 A2994
+ Add Your Business

X21 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3PT

AWOS-3PT
321-385-0383
 119.725

FAA A/FD Pages

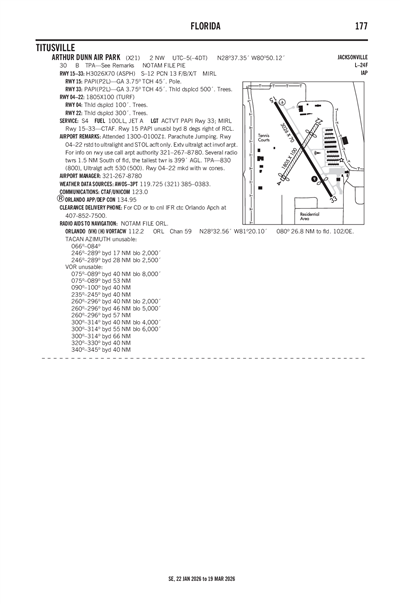

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KTIX (7nm)
Sun, 8/24 1:35 AM EDT
Sun, 8/24 2:00 AM EDT - Mon, 8/25 2:00 AM EDT
VFR
2:00 AM EDT - 10:00 AM EDT
Scattered 25,000'
Few 2,000'
6sm
240° 6kts
VFR
10:00 AM EDT - 4:00 PM EDT
Thunderstorm in vicinity
Broken 25,000'
Broken 5,000'
Scattered 3,000'
6sm
240° 10kts
MVFR
Temporary 11:00 AM EDT - 2:00 PM EDT
Thunderstorm and Rain
Broken 3,000'
3sm
Calm
VFR
4:00 PM EDT - 8:00 PM EDT
Showers in vicinity
Broken 25,000'
Broken 8,000'
Scattered 5,000'
6sm
270° 8kts
VFR
8:00 PM EDT - 2:00 AM EDT
Overcast 25,000'
Broken 10,000'
Scattered 6,000'
6sm
230° 5kts
KTIX 240535Z 2406/2506 24006KT P6SM FEW020 SCT250
   FM241400 24010KT P6SM VCTS SCT030CB BKN050 BKN250
   TEMPO 2415/2418 3SM TSRA BKN030CB
   FM242000 27008KT P6SM VCSH SCT050 BKN080 BKN250
   FM250000 23005KT P6SM SCT060 BKN100 OVC250 AMD NOT SKED TIL 241100
X21
Domestic
5/17/250805Z !PIE 05/167 X21 OBST TOWER LGT (ASR 1011715) 283217.50N0805818.30W (9.0NM SW X21) 298.9FT (289.0FT AGL) U/S 2505170805-2506010400
4/24/251216Z !PIE 04/239 X21 RWY 15 PAPI BEYOND 8DEG RIGHT OF RCL UNUSABLE 2504241216-PERM
4/15/251723Z !PIE 04/146 X21 OBST TOWER LGT (ASR 1212124) 283512.60N0810457.50W (13.4NM W X21) 1749.0FT (1682.1FT AGL) U/S 2504151723-2508131723
4/14/251157Z !PIE 04/130 X21 OBST TOWER LGT (ASR 1040401) 283451.90N0810431.20W (13.0NM W X21) 1671.9FT (1606.0FT AGL) U/S 2504141157-2508121157
No
0800-2000
TITUSVILLE -COCOA AIRPORT DISTRICT
355 GOLDEN KNIGHTS BLVD
TITUSVILLE, FL 32780
Phone: 321-267-8780
KEVIN DAUGHERTY
355 GOLDEN KNIGHTS BLVD.
TITUSVILLE, FL 32780
Phone: 321-267-8780
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
PIE
--
ACTVT PAPI RWY 33; MIRL RWY 15/33 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Parachute Jump Activity

Runway 04/22

1805 ft. x 100 ft.
TURF
Good
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 32°212°
Traffic Pattern
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 28° 37' 13"N 28° 37' 28"N
Longitude 80° 50' 13"W 80° 50' 03"W
Elevation 28' 25'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

3026 ft. x 70 ft.
ASPH
Fair
NONE
MED
13 /F/B/X/T
12,000lbs
--
--
--
  Runway 15 Runway 33
True Heading 149°329°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 28° 37' 34"N 28° 37' 08"N
Longitude 80° 50' 16"W 80° 49' 58"W
Elevation 24' 29'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3.75° 3.75°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1EXTENSIVE ULTRALIGHT ACTIVITY INVOF ARPT.
A110-2SVRL RADIO TOWERS 1.5 NM SOUTH OF FIELD; THE TALLEST TOWER IS 399 FT AGL.
A110-3FOR INFO ON RY USE CALL ARPT AUTHORITY 321-267-8780.
A110-4FOR CD OR TO CNL IFR CTC ORLANDO APCH AT 407-852-7500.
ARTHUR DUNN AIR PARK (IATA: X21) is a public airport located in TITUSVILLE, FL.
