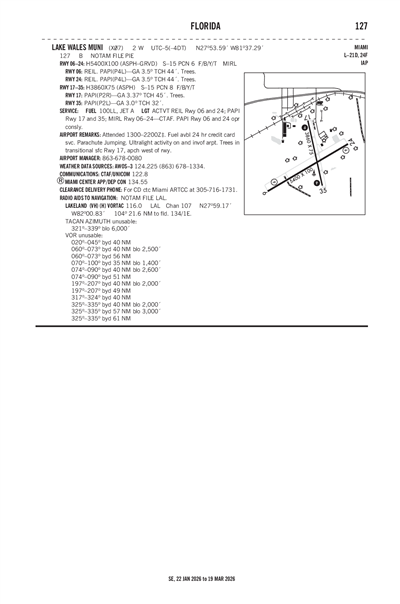

LAKE WALES MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

X07
Local X07
LAKE WALES MUNI
PublicPUB

2 miles W of LAKE WALES, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
27° 53' 36"N 81° 37' 17"W
Elevation
127' MSL
Pattern Alt
1127' MSL
Mag Variation
6°W
Declination
7°W
Fuel
JET A, 100LL
FSS
SAINT PETERSBURG (PIE)
Sectional
MIAMI
ARTCC
MIAMI (ZMA)
Data Effective
2/19/26-3/19/26
KBOW (9nm) VFR
10:55 PM EST
Clear
10sm
68°F
66°F
30.25"Hg
060° 5kts
AO2 PWINO
METAR KBOW 040355Z AUTO 06005KT 10SM CLR 20/19 A3025 RMK AO2 PWINO
+ Add Your Business

X07 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 124.225
(863) 678-1334

Common

CTAF 122.8
ACTVT REIL RWY 6 & 24; PAPI RWY 17 & 35; MIRL RWY 6/ 24 - CTAF. PAPI 6 & 24 OPR CONSLY.
UNICOM 122.8

Center

MIAMI CENTER 134.55
LOW, APCH/DEP SVC PRVDD BY MIAMI ARTCC ON FREQS 134.55/257.7 (AVON PARK RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KLAL (22nm)
Tue, 3/3 6:20 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
7:00 PM EST - 9:00 PM EST
Scattered 8,000'
6sm
070° 10kts
Gusts 20kts
VFR
9:00 PM EST - 7:00 PM EST
Few 8,000'
6sm
070° 9kts
TAF KLAL 032320Z 0400/0424 07010G20KT P6SM SCT080
   FM040200 07009KT P6SM FEW080
X07
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
1300Z
2/27/26
2100Z
!PIE 02/293 X07 AIRSPACE AEROBATIC ACFT WI AN AREA DEFINED AS 5NM RADIUS OF X07 SFC-5000FT AGL DLY 1300-2100 2602231300-2602272100
1/28/26
2023Z
!PIE 01/269 X07 SVC AUTOMATED WX BCST SYSTEM VIS/PRECIPITATION/PRESENT WX UNREL 2601282023-2602282359EST
1/23/26
1200Z
2/27/26
2300Z
!PIE 01/197 X07 AIRSPACE SEE ZMA 01/411 NUMEROUS MIL ACFT DLY 1200-2300 2601231200-2602272300
No
0800-1700
LAKE WALES AIRPORT AUTHORITY
CITY ADMINISTRATION BUILDING 201 CENTRAL AVENUE WEST
LAKE WALES, FL 33853
Phone: 863-678-4182
AMANDA LOMNECK
450 SOUTH AIRPORT RD
LAKE WALES, FL 33859
Phone: 863-678-0080
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
PIE
--
ACTVT REIL RWY 6 & 24; PAPI RWY 17 & 35; MIRL RWY 6/ 24 - CTAF. PAPI 6 & 24 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Parachute Jump Activity

Runway 06/24

5400 ft. x 100 ft.
ASPH
Good
GRVD
MED
6/F/B/Y/T
15,000lbs
--
--
--
  Runway 06 Runway 24
True Heading 59°239°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 27° 53' 19"N 27° 53' 46"N
Longitude 81° 37' 45"W 81° 36' 53"W
Elevation 123' 121'
Threshold Crossing Height 44 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3.5° 3.5°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 17/35

3860 ft. x 75 ft.
ASPH
Fair
NONE

8/F/B/Y/T
15,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 167°347°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 27° 53' 59"N 27° 53' 22"N
Longitude 81° 37' 19"W 81° 37' 10"W
Elevation 124' 122'
Threshold Crossing Height 45 ft. AGL 32 ft. AGL
Visual Glide Path Angle 3.37° 3°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11CONTACT PERSON: JAMES SLATON
A110-2ULTRALIGHT ACTIVITY ON & INVOF ARPT.
A110-4TREES IN TRANSITIONAL SFC RY 17; APCH WEST OF RY.
A110-7FOR CD CTC MIAMI ARTCC AT 305-716-1731.
A70-100LLFUEL AVBL 24 HR CREDIT CARD SVC.
A81-APTACTVT REIL RWY 6 & 24; PAPI RWY 17 & 35; MIRL RWY 6/ 24 - CTAF. PAPI 6 & 24 OPR CONSLY.
E111EXISTED PRIOR TO 1959.
LAKE WALES MUNI (IATA: X07) is a public airport located in LAKE WALES, FL, US.
