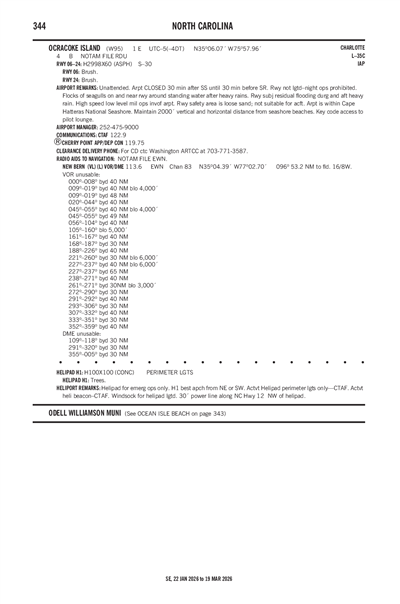

OCRACOKE ISLAND - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

W95
Local W95
OCRACOKE ISLAND
PublicPUB

1 miles E of OCRACOKE, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 06' 04"N 75° 57' 57"W
Elevation
4' MSL
Pattern Alt
1004' MSL
Mag Variation
11°W
Declination
9°W
Fuel
None Listed
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
KHSE (19nm) IFR
8:58 PM EST
Mist
Obscured 500'
1sm
50°F
49°F
30.35"Hg
Calm
AO2 T01000094 TSNO
SPECI KHSE 040158Z AUTO 00000KT 1SM BR VV005 10/09 A3035 RMK AO2 T01000094 TSNO
+ Add Your Business

W95 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT HELI BEACON - CTAF.; ACTVT HELI PERIMETER LTS ONLY - CTAF.

Approach

CHERRY POINT APPROACH 119.75

Departure

CHERRY POINT DEPARTURE 119.75

FAA A/FD Pages

Instrument Approach

Terminal Area Forecast

KNKT (47nm)
Tue, 3/3 4:16 PM EST
Tue, 3/3 4:00 PM EST - Wed, 3/4 4:00 PM EST
VFR
4:00 PM EST - 9:30 AM EST
Scattered 4,000'
Few 1,000'
6sm
30.30"Hg
VRB° 6kts
IFR
Temporary 4:00 AM EST - 9:00 AM EST
Mist
Overcast 3,000'
Broken 500'
2.98sm
VRB° 6kts
VFR
9:30 AM EST - 4:00 PM EST
Scattered 1,000'
6sm
30.21"Hg
210° 8kts
MVFR
Temporary 10:00 AM EST - 4:00 PM EST
Broken 1,000'
N/A
200° 8kts
Gusts 18kts
TAF KNKT 0321/0421 VRB06KT 9999 FEW010 SCT040 QNH3030INS
   TEMPO 0409/0414 VRB06KT 4800 BR BKN005 OVC030
   FM041430 21008KT 9999 SCT010 QNH3020INS
   TEMPO 0415/0421 20008G18KT BKN010 TX23/0418Z TN11/0410Z
W95
No NOTAM Available
No
UNATNDD
NATIONAL PARK SERVICE
1401 NATIONAL PARK DR.
MANTEO, NC 27954
Phone: 252-475-9000
MARK SEAMAN
1401 NATIONAL PARK DRIVE
MANTEO, NC 27954
Phone: 252-475-9000
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
--
ACTVT HELI PERIMETER LTS ONLY - CTAF.
ACTVT HELI BEACON - CTAF.
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 06/24

2998 ft. x 60 ft.
ASPH
Fair
NONE


30,000lbs
--
--
--
  Runway 06 Runway 24
True Heading 50°230°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 35° 05' 55"N 35° 06' 14"N
Longitude 75° 58' 11"W 75° 57' 44"W
Elevation 4' 4'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

100 ft. x 100 ft.
CONC
Good
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 35° 06' 19"N N/A
Longitude 75° 57' 43"W N/A
Elevation 4' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11NCDOT DIVISION OF AVIATION COOPERATING AGENCY UNDER MOU; CTC NR 919-814-0550.
A110-1ARPT CLSD 30 MIN AFTER SS TIL 30 MIN BEFORE SR.
A110-10FOR CD CTC WASHINGTON ARTCC AT 703-771-3587.
A110-1130 FT PLINE ALONG NC HWY 12 N OF HELIPAD.
A110-2HIGH SPEED LOW LEVEL MIL OPS INVOF OF ARPT.
A110-3FLOCKS OF SEAGULLS ON AND NEAR RWY ARND STANDING WATER AFTER HVY RAINS.
A110-4RWY SAFETY AREA IS LOOSE SAND; NOT SUITABLE FOR ACFT.
A110-5RWY NOT LGTD - NIGHT OPS PROHIBITED.
A110-6ARPT IS WI CAPE HATTERAS NTL SEASHORE. MNTN 2000 FT VER & HORIZONTAL DIST FROM SEASHORE BEACHES.
A110-7RWY SUBJ RESIDUAL FLOODING DURG AND AFT HEAVY RAIN.
A110-8KEY CODE ACES TO PILOT LOUNGE.
A110-9HELIPAD FOR EMERG OPS ONLY.
A16NATL PARKS SVC NR ANSWERED 7 DAYS A WEEK BTWN 0800 TO 1700.
A30-H1BEST APCH FM NE OR SW.
A57-H1APCH SLOPE FOR NE HELI APCH IS 13:1 DUE TO 12 FT BRUSH 162 FT FM HELI OFFSET 31 FT L; AND APCH SLOPE FOR SW HELI APCH IS 10:1 DUE TO 15 FT TREES 151 FT FROM HELI OFFSET 0 FT BOTH SIDES.
A58-065 FT BRUSH 0-200 FT FM THR 81 FT R OF CNTRLN; 5 FT BRUSH 50-200 FT FM THR 145 FT L OF CNTRLN.
A58-2412 FT SCRUB TREES 155 FT FM THR 94 FT R OF CNTRLN; 10 FT SCRUB TREES 0-200 FT FM THR 74 FT L OF CNTRLN.
A81-APTACTVT HELI PERIMETER LTS ONLY - CTAF.
A81-BCNACTVT HELI BEACON - CTAF.
A83WINDSOCK FOR HELI LGTD.
OCRACOKE ISLAND (IATA: W95) is a public airport located in OCRACOKE, NC, US.
