UPSHUR COUNTY RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

W22
Local W22
UPSHUR COUNTY RGNL
PublicPUB

2 miles W of BUCKHANNON, WV, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 00' 02"N 80° 16' 30"W
Elevation
1635' MSL
Pattern Alt
2635' MSL
Mag Variation
9°W
Declination
8°W
Fuel
JET A, 100LL
FSS
ELKINS (EKN)
Sectional
CINCINNATI
ARTCC
CLEVELAND (ZOB)
Data Effective
2/19/26-3/19/26
KW22 LIFR
4:55 AM EST
Mist
Overcast 1,700'
0.5sm
52°F
52°F
30.19"Hg
Calm
AO2
METAR KW22 040955Z AUTO 00000KT 1/2SM BR OVC017 11/11 A3019 RMK AO2
+ Add Your Business

W22 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.975
(304) 472-9428

Common

CTAF 122.8
ACTVT PAPI RWY 29; MIRL RWY 11/29 - CTAF.
UNICOM 122.8

Approach

CLARKSBURG APPROACH 121.15

Departure

CLARKSBURG DEPARTURE 121.15

Center

CLARKSBURG CENTER 128.6
LOW, APCH/DEP SVC PRVDD BY WASHINGTON ARTCC ON FREQS 128.6/226.675 (ELKINS RCAG) WHEN CLARKSBURG APCH CTL CLSD.

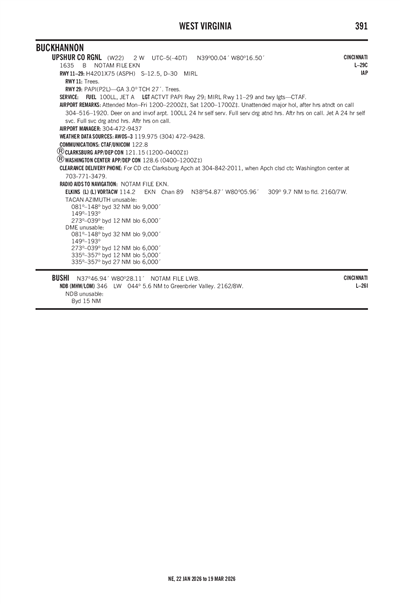

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KCKB (18nm)
Wed, 3/4 1:11 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
MVFR
1:00 AM EST - 3:00 AM EST
Light Rain and Mist
Overcast 1,500'
6sm
210° 4kts
IFR
3:00 AM EST - 5:00 AM EST
Light Rain and Mist
Overcast 1,500'
2sm
VRB° 3kts
IFR
5:00 AM EST - 7:00 AM EST
Light Rain and Mist
Overcast 700'
4sm
220° 2kts
IFR
7:00 AM EST - 12:00 PM EST
Light Rain and Mist
Overcast 600'
3sm
210° 3kts
IFR
12:00 PM EST - 1:00 AM EST
Light Rain and Mist
Overcast 800'
4sm
180° 4kts
TAF KCKB 040611Z 0406/0506 21004KT 6SM -RA BR OVC015 WS010/19040KT
   FM040800 VRB03KT 2SM -RA BR OVC015
   FM041000 22002KT 4SM -RA BR OVC007
   FM041200 21003KT 3SM -RA BR OVC006
   FM041700 18004KT 4SM -RA BR OVC008
W22
EffectiveExpiresCategoryNOTAM
Domestic
3/3/26
2200Z
3/4/26
1300Z
!EKN 03/024 W22 AD AP SFC COND NOT REP 2603032200-2603041300
3/3/26
0054Z
4/17/26
0053Z
!EKN 03/018 W22 OBST TOWER LGT (ASN 2017-AEA-10137-OE) 390423N0801123W (5.9NM NE W22) 1944FT (310FT AGL) U/S 2603030054-2604170053
3/2/26
1813Z
5/2/26
2359Z
!EKN 03/011 W22 OBST TOWER LGT (ASR 1034480) 385850.00N0800743.00W (6.9NM E W22) 2389.8FT (409.8FT AGL) U/S 2603021813-2605022359
2/24/26
1216Z
3/31/26
1700Z
Runway!EKN 02/270 W22 RWY 29 RWY END ID LGT U/S 2602241216-2603311700
2/24/26
1216Z
3/31/26
1700Z
!EKN 02/269 W22 APRON SOUTH APN WIP HVY EQPT 2602241216-2603311700
1/28/26
0205Z
3/28/26
0205Z
!EKN 01/344 W22 OBST TOWER LGT (ASR 1034295) 390801.00N0802214.40W (9.1NM NNW W22) 1913.4FT (415.7FT AGL) U/S 2601280205-2603280205
No
MON-FRI 0700-1700
SAT 0700-1200
UNATNDD MAJ HOL, AFTR HRS ATNDT ON CALL 304-516-1920.
BUCKHANNON-UPSHUR ARPT AUTH
P. O. BOX 1042
BUCKHANNON, WV 26201
Phone: 412-812-2757
JENNIFER L. POWERS
PO BOX 1042
BUCKHANNON, WV 26201
Phone: 304-472-9437
ELKINS FSS (EKN)
Toll Free: 1-800-WX-BRIEF
EKN
--
ACTVT PAPI RWY 29; MIRL RWY 11/29 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 11/29

4201 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
30,000lbs
--
--
  Runway 11 Runway 29
True Heading 98°278°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 00' 05"N 38° 59' 59"N
Longitude 80° 16' 56"W 80° 16' 04"W
Elevation 1,631' 1,635'
Threshold Crossing Height -- 27 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights No
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1DEER ON & INVOF ARPT.
A110-2FOR CD CTC CLARKSBURG APCH AT 304-842-2011, WHEN APCH CLSD CTC WASHINGTON CENTER AT 703-771-3479.
A13ARPT AUTHORITY PRESIDENT, MIKE RUFFING.
A15ARPT PHYS ADS: 630 AIRPORT RD, BUCKHANNON, WV.
A16AFTR HRS AMGR CELL 304-516-1920 OR 304-613-7989.
A17-M3UNATNDD MAJ HOL, AFTR HRS ATNDT ON CALL 304-516-1920.
A58-2920 FT TREES, 311 FT DSTC, 138 FT L.
A70-100LL100LL 24 HR SELF SVC. FULL SVC DRG ATND HRS. AFTR HRS ON CALL.
A70-AJET A 24 HR SELF SVC. FULL SVC DRG ATND HRS. AFTR HRS ON CALL.
A81-APTACTVT PAPI RWY 29; MIRL RWY 11/29 - CTAF.
UPSHUR COUNTY RGNL (IATA: W22) is a public airport located in BUCKHANNON, WV, US.
