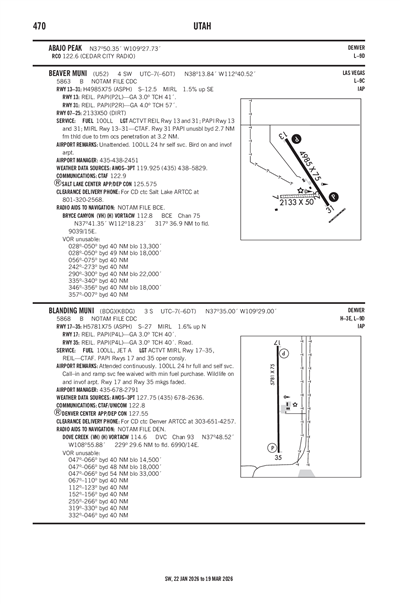

BEAVER MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

U52
Local U52
BEAVER MUNI
PublicPUB

4 miles SW of BEAVER, UT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 13' 50"N 112° 40' 31"W
Elevation
5863' MSL
Pattern Alt
6863' MSL
Mag Variation
11°E
Declination
14°E
Fuel
100LL
FSS
CEDAR CITY (CDC)
Sectional
LAS VEGAS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
2/19/26-3/19/26
KU52 VFR
7:55 PM MST
Light Drizzle
Clear
10sm
37°F
30°F
30.20"Hg
Calm
AO2
METAR KU52 040255Z AUTO 00000KT 10SM -DZ CLR 03/M01 A3020 RMK AO2
+ Add Your Business

U52 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.925
(435) 438-5829

Common

CTAF 122.9
ACTVT REIL RWY 13 & 31; PAPI RWY 13 & 31; MIRL RWY 13/31 - CTAF.

Center

SALT LAKE CENTER 125.575
LOW, APCH/DEP CTL SVC PRVDD BY SALT LAKE CITY ARTCC (ZLC) ON FREQS 125.575/379.275 (CEDAR CITY RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KCDC (37nm)
Tue, 3/3 4:28 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 8:00 PM MST
Sky Clear
6sm
360° 9kts
VFR
8:00 PM MST - 11:00 PM MST
Sky Clear
6sm
VRB° 4kts
VFR
11:00 PM MST - 11:00 AM MST
Sky Clear
6sm
140° 4kts
VFR
11:00 AM MST - 5:00 PM MST
Few 25,000'
6sm
220° 14kts
Gusts 24kts
TAF KCDC 032328Z 0400/0424 36009KT P6SM SKC
   FM040300 VRB04KT P6SM SKC
   FM040600 14004KT P6SM SKC
   FM041800 22014G24KT P6SM FEW250
U52
EffectiveExpiresCategoryNOTAM
FDC
8/8/25
1435Z
!FDC 5/3820 U52 IAP BEAVER MUNI, BEAVER, UT.
RNAV (GPS)-A, ORIG-B...
CIRCLING TO RWY 7/25 NA.
2508081435-2708081435EST
No
UNATNDD
BEAVER CITY
PO BOX 271
BEAVER, UT 84713
Phone: 435-438-2451
MONTE HAWKINS
30 WEST 300 NORTH PO BOX 271
BEAVER, UT 84713
Phone: 435-438-2451
CEDAR CITY FSS (CDC)
Toll Free: 1-800-WX-BRIEF
CDC
--
ACTVT REIL RWY 13 & 31; PAPI RWY 13 & 31; MIRL RWY 13/31 - CTAF.
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 07/25

2133 ft. x 50 ft.
DIRT
Fair
NONE


--
--
--
--
  Runway 07 Runway 25
True Heading 87°267°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition POOR POOR
Latitude 38° 13' 40"N 38° 13' 41"N
Longitude 112° 40' 50"W 112° 40' 24"W
Elevation 5,842' 5,845'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

4985 ft. x 75 ft.
ASPH
Excellent
NONE
MED

12,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 148°328°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 14' 15"N 38° 13' 33"N
Longitude 112° 40' 46"W 112° 40' 12"W
Elevation 5,791' 5,863'
Threshold Crossing Height 41 ft. AGL 57 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P2L P2R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BIRDS ON & INVOF ARPT.
A110-3FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A43-31PAPI UNUSBL BYD 2.7 NM FM THLD DUE TO TRRN OCS PENETRATION AT 3.2 NM.
A53-072 FT DELIMINATORS ACRS RWY 180 FT FM AER 25.
A70-100LL24 HR SELF SVC.
A81-APTACTVT REIL RWY 13 & 31; PAPI RWY 13 & 31; MIRL RWY 13/31 - CTAF.
BEAVER MUNI (IATA: U52) is a public airport located in BEAVER, UT, US.
