GRAHAM USFS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

U45
Local U45
GRAHAM USFS
PublicPUB

11 miles NW of ATLANTA, ID, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 57' 19"N 115° 16' 21"W
Elevation
5726' MSL
Pattern Alt
6726' MSL
Mag Variation
13°E
Declination
17°E
Fuel
None Listed
FSS
BOISE (BOI)
Sectional
SALT LAKE CITY
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
2/19/26-3/19/26
KSNT (20nm) VFR
7:51 PM MST
No Clouds
N/A
38°F
25°F
30.14"Hg
150° 6kts
AO1 SLP205 T00331039 53002
METAR KSNT 040251Z AUTO 15006KT 03/M04 A3014 RMK AO1 SLP205 T00331039 53002
+ Add Your Business

U45 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

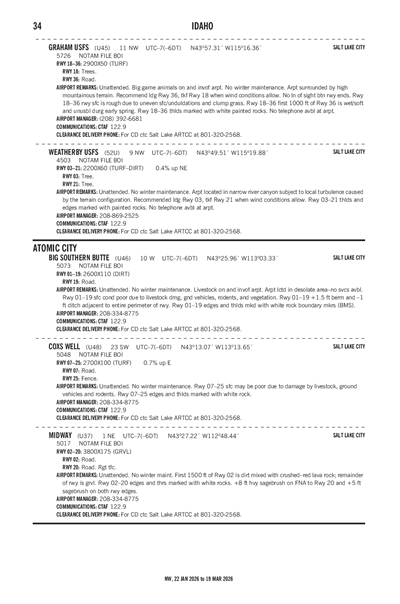

FAA A/FD Pages

Terminal Area Forecast

KBOI (48nm)
Tue, 3/3 4:38 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 9:00 AM MST
Broken 20,000'
6sm
140° 12kts
VFR
9:00 AM MST - 1:00 PM MST
Showers in vicinity
Broken 7,000'
6sm
160° 11kts
VFR
1:00 PM MST - 3:00 PM MST
Light Rain and Mist
Overcast 3,500'
6sm
290° 9kts
MVFR
3:00 PM MST - 5:00 PM MST
Light Rain and Mist
Overcast 2,500'
Scattered 1,500'
4sm
320° 18kts
Gusts 30kts
TAF KBOI 032338Z 0400/0424 14012KT P6SM BKN200
   FM041600 16011KT P6SM VCSH BKN070
   FM042000 29009KT 6SM -RA BR OVC035
   FM042200 32018G30KT 4SM -RA BR SCT015 OVC025
U45
No NOTAM Available
No
UNATNDD
U S FOREST SERVICE
324 25TH ST
OGDEN, UT 84401
Phone: 801-625-5511
COLIN GOOD-FIRE MGMT. OFFICER-USFS
3833 HIGHWAY 21 PO BOX 129
IDAHO CITY, ID 83631
Phone: (208) 392-6681
BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF
BOI
--
--
N/A
Yes
No
No
Tie-Down
No
None
None
None
None
None

Runway 18/36

2900 ft. x 50 ft.
TURF
Poor
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NO WINTER MAINTENANCE.
A110-2RECOMMEND LNDG RWY 36; TAKEOFF RWY 18 WHEN WIND CONDITIONS ALLOW.
A110-3ARPT SURROUNDED BY HIGH MOUNTAINOUS TERRAIN.
A110-5BIG GAME ANIMALS ON & INVOF ARPT.
A110-6NO TELEPHONE AVBL AT ARPT.
A110-7RWY 18/36 FIRST 1000 FT OF RWY 36 IS WET/SOFT AND UNUSBL DRG EARLY SPRING.
A110-8FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A110-9NO LN OF SIGHT BTN RWY ENDS.
A33-18/36_CONDRWY SFC IS ROUGH DUE TO UNEVEN SFC/UNDULATIONS & CLUMP GRASS.
A42-18_MARK18/36 THRS MKD WITH WHITE PAINTED ROCKS.
A52-18RWY 18 35 FT TREES AT 0 FT 75 FT R; 30 FT TREES AT 60 FT ON CNTRLN; 100 FT TREES & TRRN AT 300 FT ON CNTRLN.
A52-36RWY 36 ADDNL OBSTNS 12 FT ROAD 25 FT FM THLD ON CNTRLN; 135 FT RIDGE 1500 FT FM THLD, 300 FT L; 900-1500 FT RIDGE ON EXT CNTRLN 1 MILE FM THLD.
A57-18NMRS TREES AND TRRN OBSTNS IN VCNTY OF RWY 36.
E111EXISTED PRIOR TO 31 DEC 1958.
GRAHAM USFS (IATA: U45) is a public airport located in ATLANTA, ID, US.
