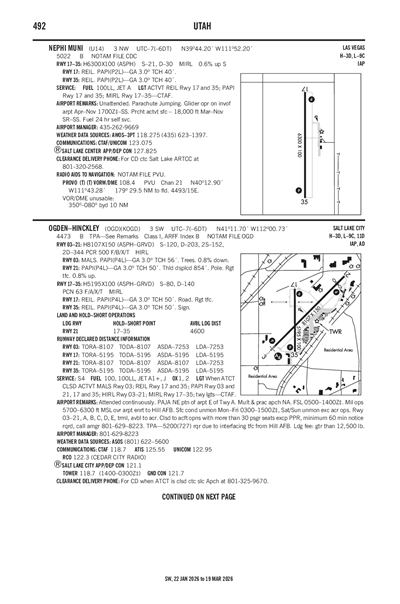

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

U14
NEPHI MUNI
PublicPUB

3 miles NW of NEPHI, UT
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 44' 12"N 111° 52' 12"W
5022' MSL
6022' MSL
12E
JET A, 100LL
CEDAR CITY (CDC)
LAS VEGAS
SALT LAKE CITY (ZLC)
10/31/24-11/28/24
KSPK (26nm) VFR
4:35 AM MST
Clear
10sm
28°F
23°F
30.15"Hg
Calm
AO2
KSPK 091135Z AUTO 00000KT 10SM CLR M02/M05 A3015 RMK AO2
Add Your Business

U14 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.075 123.075

AWOS-3

AWOS-3
435-623-1397
 118.275

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPVU (30nm)
Sat, 11/9 4:20 AM MST
Sat, 11/9 5:00 AM MST - Sun, 11/10 5:00 AM MST
VFR
5:00 AM MST - 5:00 AM MST
Few 20,000'
6sm
VRB° 4kts
KPVU 091120Z 0912/1012 VRB04KT P6SM FEW200
U14
Domestic
10/12/241735Z !CDC 10/121 U14 OBST TOWER LGT (ASR 1216126) 392645.20N1120129.80W (18.8NM SSW U14) 5310.0FT (304.1FT AGL) U/S 2410121735-2501100400
5/24/241359Z !CDC 05/173 U14 AIRSPACE PJE WI AN AREA DEFINED AS 4NM RADIUS OF U14 SFC-17999FT DLY SR-SS 2405241359-2412010004
FDC
10/3/231338Z !FDC 3/9054 U14 IAP NEPHI MUNI, NEPHI, UT.
RNAV (GPS) RWY 35, ORIG-D...
LNAV MDA 5980/HAT 958 ALL CATS. CIRCLING CAT A/B MDA 5980/HAA 958.
2310031338-2510031338EST
9/8/231202Z !FDC 3/7367 U14 IAP NEPHI MUNI, NEPHI, UT.
RNAV (GPS) RWY 17, ORIG-C...
MISSED APPROACH: CHANGE MISSED APPROACH INSTRUCTIONS TO READ: CLIMB TO 11400 DIRECT ACAGO AND ON TRACK 191 TO PILTE AND HOLD, CONTINUE CLIMB-IN-HOLD TO 11400.
2309081202-2509081202EST
No
UNATNND
CITY OF NEPHI
1915 N. AIRPORT RD
NEPHI, UT 84648
Phone: 435-262-9669
SCOTT NOLL
1915 N. AIRPORT RD.
NEPHI, UT 84648
Phone: 435-262-9669
CEDAR CITY FSS (CDC)
Toll Free: 1-800-WX-BRIEF
CDC
--
ACTVT REIL RWY 17 & 35; PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Glider Service
Parachute Jump Activity

Runway 17/35

6300 ft. x 100 ft.
ASPH
Good
NONE
MED

21,000lbs
30,000lbs
--
--
  Runway 17 Runway 35
True Heading 179°359°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 39° 44' 43"N 39° 43' 41"N
Longitude 111° 52' 12"W 111° 52' 12"W
Elevation 4,987' 5,022'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1GLDR OPS ON AND INVOF ARPT APR-NOV. 1000 - SS.
A110-2FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A110-3PRCHT OPS ON AND INVOF ARPT MAR-NOV SR-SS.
NEPHI MUNI (IATA: U14) is a public airport located in NEPHI, UT.
