TJPS
MERCEDITA
PublicPUB

3 miles E of PONCE, PR
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
18° 00' 32"N 66° 33' 52"W
28' MSL
1028' MSL
11W
JET A, 100LL
SAN JUAN (SJU)
PUERTO RICO-VIRGIN ISLANDS
SAN JUAN (ZSU)
4/17/25-5/15/25
TJPS VFR
2:35 AM AST
Clear
8sm
77°F
72°F
30.04"Hg
070° 4kts
AO2 PWINO
TJPS 030635Z AUTO 07004KT 8SM CLR 25/22 A3004 RMK AO2 PWINO
+ Add Your Business

TJPS FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3PT

AWOS-3PT
787-843-0444
 118.4

FAA A/FD Pages

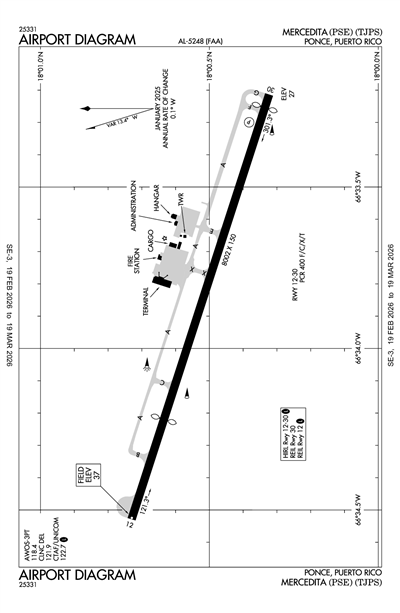

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

TJPS
Tue, 6/3 1:21 AM AST
Tue, 6/3 2:00 AM AST - Wed, 6/4 2:00 AM AST
MVFR
2:00 AM AST - 11:00 AM AST
Haze
Sky Clear
5sm
080° 5kts
VFR
11:00 AM AST - 7:00 PM AST
Scattered 4,500'
6sm
140° 14kts
Gusts 25kts
VFR
7:00 PM AST - 11:00 PM AST
Few 3,000'
6sm
110° 11kts
VFR
11:00 PM AST - 2:00 AM AST
Sky Clear
6sm
060° 6kts
TJPS 030521Z 0306/0406 08005KT 5SM HZ SKC
   FM031500 14014G25KT P6SM SCT045
   FM032300 11011KT P6SM FEW030
   FM040300 06006KT P6SM SKC
TJPS
Domestic
5/19/251220Z !TJPS 05/018 PSE OBST TOWER LGT (ASR 1221676) 180051.30N0664402.60W (9.8NM W PSE) 607.0FT (254.9FT AGL) U/S 2505191220-2508170400
5/15/251247Z !TJPS 05/014 PSE OBST TOWER LGT (ASR 1292981) 180058.50N0663147.00W (2.1NM ENE PSE) 232.0FT (169.9FT AGL) U/S 2505151247-2505301247
5/14/251950Z !TJPS 05/013 PSE OBST TOWER LGT (ASR 1291779) 180120.60N0663217.10W (1.8NM ENE PSE) 237.5FT (155.8FT AGL) U/S 2505141950-2505290400
5/11/250816Z !TJPS 05/010 PSE OBST TOWER LGT (ASR 1011219) 180418.00N0661227.10W (21.5NM E PSE) 2744.1FT (357.0FT AGL) U/S 2505110816-2506252359
5/11/250458Z !TJPS 05/009 PSE OBST TOWER LGT (ASR 1204272) 180219.80N0663901.00W (5.1NM WNW PSE) 596.8FT (257.9FT AGL) U/S 2505110458-2506250457
5/2/251613Z !TJPS 05/001 PSE OBST TOWER LGT (ASR 1256602) 180211.80N0664833.40W (14.1NM W PSE) 461.9FT (210.0FT AGL) U/S 2505021613-2508010400
4/24/252226Z !TJPS 04/051 PSE SVC AUTOMATED WX BCST SYSTEM PRESENT WX UNREL 2504242226-2507312359EST
4/16/251655Z !TJPS 04/026 PSE OBST TOWER LGT (ASR 1230698) 180229.10N0663131.10W (3.2NM NE PSE) 731.0FT (254.9FT AGL) U/S 2504161655-2507150400
4/2/252334Z !TJPS 04/010 PSE OBST TOWER LGT (ASR 1221680) 180441.30N0664456.20W (11.0NM WNW PSE) 2242.8FT (254.9FT AGL) U/S 2504022334-2507010400
2/16/251457Z !TJPS 02/023 PSE OBST JET BLAST FENCE (ASN 2024-ASO-10715-NRA) 180045N0663432W (0.7NM WNW PSE) 86FT (49FT AGL) NOT LGTD 2502161457-2602162359
2/16/251457Z !TJPS 02/022 PSE OBST JET BLAST FENCE (ASN 2024-ASO-10714-NRA) 180043N0663433W (0.7NM WNW PSE) 81FT (46FT AGL) NOT LGTD 2502161457-2602162359
2/16/251456Z !TJPS 02/021 PSE OBST JET BLAST FENCE (ASN 2024-ASO-10713-NRA) 180046N0663432W (0.7NM WNW PSE) 90FT (50FT AGL) NOT LGTD 2502161456-2602162359
FDC
4/24/251249Z !FDC 5/0553 PSE IAP MERCEDITA, PONCE, PR.
RNAV (GPS) RWY 30 ORIG-D ...
TERMINAL ROUTE: MAZ VOR/DME TO JIREG MINIMUM ALT 5400 2504241249-2704231249EST
8/19/241845Z !FDC 4/1850 PSE SID MERCEDITA, PONCE, PR.
WLFRD TWO DEPARTURE (RNAV)...
TAKE-OFF MINIMUMS: RWY 30: NA - ENVIRONMENTAL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2408191845-2608191845EST
No
ALL
PUERTO RICO PORT AUTH
PO BOX 2829
SAN JUAN, PR 00936
Phone: 787-729-8715
WILLIAM FEBLES
P.O. BOX 670
MERCEDITA, PR 00715
Phone: 787-729-8715
SAN JUAN FSS (SJU)
Toll Free: 1-800-WX-BRIEF
TJPS
--
HIRL RWY 12/30 PRESET MED INTST DUSK-2200; TO INCR INTST & ACTVT HIRL RWY 12/30 AND REIL RWY 12 AFTER 2200 - UNICOM 122.70. PAPI RWY 30 OPER CONT.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Crop Dusting
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Glider Towing

Runway 12/30

8004 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH

--
--
--
--
  Runway 12 Runway 30
True Heading 108°288°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 18° 00' 44"N 18° 00' 19"N
Longitude 66° 34' 32"W 66° 33' 13"W
Elevation 28' 27'
Threshold Crossing Height -- 53 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-3CUSTOMS AVAILABLE 1200Z TO 2100Z MON-FRI.
A110-4FOR CD IF FREQ ARE OTS CTC SAN JUAN CERAP AT 787-253-8664/8665.
MERCEDITA (ICAO: TJPS, IATA: PSE) is a public airport located in PONCE, PR.
