iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

TJIG
FERNANDO LUIS RIBAS DOMINICCI
PublicPUB

0 miles W of SAN JUAN, PR
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
18° 27' 24"N 66° 05' 55"W
10' MSL
1000' MSL
12W
JET A, 100
SAN JUAN (SJU)
PUERTO RICO-VIRGIN ISLANDS
SAN JUAN (ZSU)
10/31/24-11/28/24
TJIG VFR
7:45 AM AST
Scattered 6,000'
Scattered 3,000'
10sm
82°F
77°F
29.87"Hg
130° 3kts
TJIG 091145Z 13003KT 10SM SCT030 SCT060 28/25 A2987
Add Your Business

TJIG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 135.875

ATIS

ATIS
 120.4

Ground

GND/P
 121.7

Tower

LCL/P
 135.875

Other

ARNG OPS
FM
 40.2
ARNG OPS
 139.1

FAA A/FD Pages

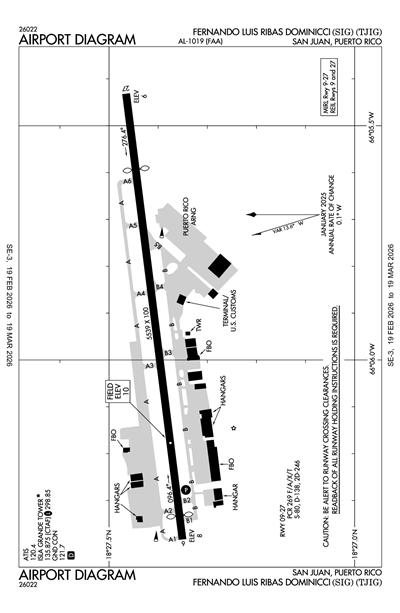

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

TJSJ (5nm)
Sat, 11/9 7:36 AM AST
Sat, 11/9 8:00 AM AST - Sun, 11/10 8:00 AM AST
VFR
8:00 AM AST - 9:00 AM AST
Showers in vicinity
Broken 8,000'
Scattered 6,000'
Few 2,400'
6sm
Calm
VFR
9:00 AM AST - 12:00 PM AST
Showers in vicinity
Broken 6,000'
Scattered 3,500'
Scattered 2,500'
6sm
080° 6kts
VFR
12:00 PM AST - 7:00 PM AST
Thunderstorm in vicinity
Broken 8,000'
Broken 3,500'
Scattered 2,000'
6sm
100° 12kts
VFR
7:00 PM AST - 10:00 PM AST
Light Rain and Thunderstorm in vicinity
Broken 9,000'
Broken 3,500'
Scattered 2,000'
6sm
VRB° 4kts
VFR
10:00 PM AST - 8:00 AM AST
Light Showers and Rain and Thunderstorm in vicinity
Broken 8,000'
Broken 4,000'
Scattered 2,200'
6sm
110° 4kts
TJSJ 091136Z 0912/1012 00000KT P6SM VCSH FEW024 SCT060 BKN080
   FM091300 08006KT P6SM VCSH SCT025 SCT035 BKN060
   FM091600 10012KT P6SM VCTS SCT020CB BKN035 BKN080
   FM092300 VRB04KT P6SM -RA VCTS SCT020CB BKN035 BKN090
   FM100200 11004KT P6SM -SHRA VCTS SCT022 BKN040CB BKN080
TJIG
Domestic
11/6/241040Z !TJSJ 11/039 SIG RWY 09 FICON 5/5/5 100 PCT WET OBS AT 2411061040. 2411061040-2411062330
11/6/241010Z !TJSJ 11/038 SIG AD AP ARFF VEHICLE U/S INDEX UNCHANGED 2411061010-2411061600
11/2/240435Z !TJSJ 11/014 SIG OBST TOWER LGT (ASR 1203645) 182134.00N0661142.00W (8.5NM SW SIG) 572.8FT (210.0FT AGL) U/S 2411020435-2411170335
10/31/242106Z !TJSJ 10/288 SIG OBST TOWER LGT (ASR 1011309) 182548.00N0660806.00W (2.8NM SW SIG) 313.6FT (307.1FT AGL) U/S 2410312106-2504302359
10/31/242106Z !TJSJ 10/287 SIG OBST TOWER LGT (ASR 1011311) 181642.70N0660636.50W (10.7NM S SIG) 1967.2FT (304.1FT AGL) U/S 2410312106-2504302359
10/31/242105Z !TJSJ 10/286 SIG OBST TOWER LGT (ASR 1011023) 181622.00N0660648.00W (11.1NM S SIG) 1868.1FT (358.9FT AGL) U/S 2410312105-2504302359
10/30/241439Z !TJSJ 10/247 SIG OBST TOWER LGT (ASR 1011020) 181647.00N0660645.00W (10.7NM S SIG) 1912.7FT (242.8FT AGL) U/S 2410301439-2411141339
10/29/240626Z !TJSJ 10/227 SIG OBST TOWER LGT (ASR 1064595) 181845.00N0660527.00W (8.5NM S SIG) 669.0FT (274.9FT AGL) U/S 2410290626-2411130526
10/23/242223Z !TJSJ 10/186 SIG OBST TOWER LGT (ASR 1220615) 182425.20N0661137.10W (6.5NM WSW SIG) 394.0FT (211.0FT AGL) U/S 2410232223-2411062359
10/18/242227Z !TJSJ 10/157 SIG AD AP WDI FOR RWY 09 LGT U/S 2410182227-2412312330
10/16/240904Z !TJSJ 10/126 SIG OBST TOWER LGT (ASR 1011475) 181502.00N0661957.00W (19.3NM SW SIG) 2710.0FT (282.2FT AGL) U/S 2410160904-2501162359
9/18/241850Z !TJSJ 09/218 SIG TWY B CLSD TO ACFT MORE THAN 90000LB EXC MIL OPS 2409181850-2412312024
9/15/241455Z !TJSJ 09/183 SIG OBST TOWER LGT (ASR 1247136) 181541.50N0660821.70W (12.1NM S SIG) 1217.8FT (253.0FT AGL) U/S 2409151455-2412140400
8/29/240230Z !TJSJ 08/349 SIG OBST TOWER LGT (ASR 1059383) 181734.90N0660954.10W (10.9NM SSW SIG) 1935.0FT (208.0FT AGL) U/S 2408290230-2411260400
7/11/242227Z !TJSJ 07/084 SIG RWY 09 PAPI U/S 2407112227-PERM
6/17/241853Z !TJSJ 06/168 SIG OBST TOWER LGT (ASR 1011474) 182140.00N0660818.00W (6.4NM SSW SIG) 385.5FT (287.1FT AGL) U/S 2406171853-2412172359
6/17/241853Z !TJSJ 06/167 SIG OBST TOWER LGT (ASR 1011473) 182138.00N0660817.00W (6.4NM SSW SIG) 385.5FT (287.1FT AGL) U/S 2406171853-2412172359
6/17/241852Z !TJSJ 06/166 SIG OBST TOWER LGT (ASR 1011472) 182136.00N0660816.00W (6.4NM SSW SIG) 385.5FT (287.1FT AGL) U/S 2406171852-2412172359
1/10/242320Z !TJSJ 01/071 SIG RWY 09/27 SAFETY AREA REDUCED BY ROAD E END CAUTION VEHICLE OBS 17 FT AGL 2401102320-PERM
FDC
9/17/240629Z !FDC 4/6554 SIG ODP FERNANDO LUIS RIBAS DOMINICCI, SAN JUAN, PR.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
ADD TAKEOFF OBSTACLE NOTES: RWY 27, TEMPORARY CRANE BARGE 519FT FROM DER, 313FT RIGHT OF CENTERLINE, 141FT AGL/ 141FT MSL (2024-ASO-16170-OE). TEMPORARY CRANE BARGES BEGINNING 743FT FROM DER, BEGINNING 67FT RIGHT OF CENTERLINE, 141FT AGL/ 141FT MSL (2024-ASO-16163/16171-OE). TEMPORARY CRANE BARGE 1378FT FROM DER, 844FT LEFT OF CENTERLINE, 141FT AGL/ 141FT MSL (2024-ASO-16173-OE). TEMPORARY CRANE BARGE 1660FT FROM DER, 429FT RIGHT OF CENTERLINE, 141FT AGL/ 141FT MSL (2024-ASO-16165-OE). TEMPORARY CRANE 2460FT FROM DER, 11FT LEFT OF CENTERLINE, 141FT AGL/ 141FT MSL (2024-ASO-16164-OE). TEMPORARY CRANE 2933FT FROM DER, 16FT LEFT OF CENTERLINE, 141FT AGL/ 141FT MSL (2024-ASO-11050-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2409170629-2411300629EST
7/10/241742Z !FDC 4/9761 SIG IAP FERNANDO LUIS RIBAS DOMINICCI, SAN JUAN, PR.
RNAV (GPS) RWY 9, ORIG-A...
PROCEDURE NA AT NIGHT. CHANGE NOTE TO READ: RWY 9 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NA (2022-ASO-46579 THRU 46589/46615-OE PERM).
2407101742-2607101742EST
7/10/241338Z !FDC 4/9541 SIG ODP FERNANDO LUIS RIBAS DOMINICCI, SAN JUAN, PR.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKEOFF MINIMUMS: RWY 27, 300-1 1/8 WITH MINIMUM CLIMB OF 300 FT PER NM TO 1200 (2022-ASO-46606-OE PERM). ALL OTHER DATA REMAINS AS PUBLISHED. 2407101338-2607101338EST
Yes
0600-1930
PUERTO RICO PORTS AUTHORITY
GPO BOX 362829
SAN JUAN, PR 00936-2829
Phone: (787) 729-8715
EDGAR M. TORRELLAS MORENO
GPO BOX 362829
SAN JUAN, PR 00936
Phone: 787-729-8715
SAN JUAN FSS (SJU)
Toll Free: 1-800-WX-BRIEF
TJSJ
--
PCL ACTVT. 3 CLICKS LOW, 5 CLICKS MED, 7 CLICKS HIGH, 30 MIN. DURATION. AFTER 1900 ACVT PAPI RWY 09; TWYS A & B - CTAF.
N/A
Yes - Lighted
No
Yes
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
None
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 09/27

5539 ft. x 100 ft.
ASPH
Good
NONE
MED

52,000lbs
88,000lbs
160,000lbs
--
  Runway 09 Runway 27
True Heading 83°263°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 18° 27' 21"N 18° 27' 28"N
Longitude 66° 06' 23"W 66° 05' 26"W
Elevation 8' 6'
Threshold Crossing Height 44 ft. AGL --
Visual Glide Path Angle 2.83° --
Visual Slope Indicator P2R --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-10WHEN ATCT CLSD STRAIGHT IN PATTERN NOT AUTHORIZED.
A110-21CUSTOMS/IMMIGRATION OPR HRS 1400-2400Z. 787-289-7978 / 7979. AFTR HRS 787-729-6600.
A110-22RWY 9/27 ACFT WITH WINGSPAN OVER 79 FT, ARPT DOES NOT MEET DESIGN STD FOR WING CLNC.
A110-25INDEX A-1 ARFF EQUIPMENT AVAIL 0600-1930.
A110-29SAN JUAN BAY CRUISE SHIP MANEUVERING AREA. TALL VESSEL OBSTRUCTION ON FINAL APPROACH TO RWY 9 OR DEPARTING RWY 27.
A110-30RWY 27 APCH END, RWY 9 DEP END, TALL VESSELS AT MARINA.
A110-31346 FT HIGH LGTD CRANES, 0.5 MI SE AER 09. EXERCISE CTN USING RITE TFC PAT FOR RWY 09.
A110-32WHEN TWR CLSD CTC SAN JUAN CERAP AT 787-253-8664/8664
A110-33TWY A4, A5, & A6 CLSD TO ACFT WITH WINGSPAN MORE THAN 49 FT.
A110-5FEE FOR ALL ACFT.
A110-6BIRDS ON & INVOF ARPT.
FERNANDO LUIS RIBAS DOMINICCI (ICAO: TJIG, IATA: SIG) is a public airport located in SAN JUAN, PR.
