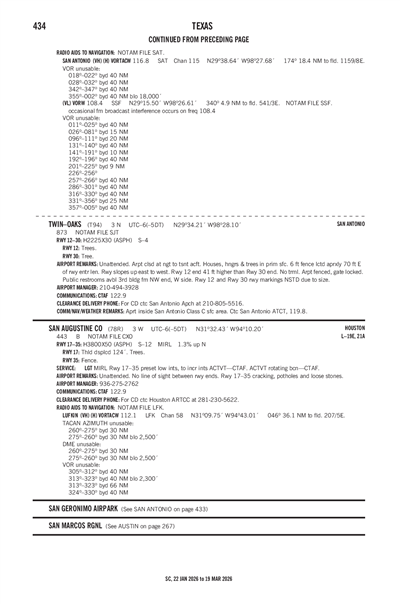

TWIN-OAKS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

T94
Local T94
TWIN-OAKS
PublicPUB

3 miles N of SAN ANTONIO, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 34' 13"N 98° 28' 06"W
Elevation
873' MSL
Pattern Alt
1873' MSL
Mag Variation
4°E
Declination
7°E
Fuel
None Listed
FSS
SAN ANGELO (SJT)
Sectional
SAN ANTONIO
ARTCC
HOUSTON (ZHU)
Data Effective
2/19/26-3/19/26
KSAT MVFR
1:51 AM CST
Overcast 1,400'
10sm
71°F
65°F
30.02"Hg
170° 12kts
AO2 SLP148 T02170183 $
METAR KSAT 040751Z 17012KT 10SM OVC014 22/18 A3002 RMK AO2 SLP148 T02170183 $
+ Add Your Business

T94 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KSAT
Tue, 3/3 11:22 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 6:00 AM CST
MVFR
12:00 AM CST - 6:00 AM CST
Overcast 1,200'
6sm
140° 12kts
MVFR
6:00 AM CST - 11:00 AM CST
Light Drizzle
Overcast 1,200'
6sm
160° 10kts
MVFR
11:00 AM CST - 1:00 PM CST
Overcast 2,800'
6sm
150° 12kts
Gusts 22kts
VFR
1:00 PM CST - 11:00 PM CST
Broken 4,000'
Scattered 2,000'
6sm
150° 14kts
Gusts 24kts
VFR
3:00 PM CST - 6:00 PM CST
Light Rain
No Clouds
6sm
Calm
MVFR
11:00 PM CST - 6:00 AM CST
Broken 1,500'
6sm
140° 12kts
TAF KSAT 040522Z 0406/0512 14012KT P6SM OVC012
   FM041200 16010KT P6SM -DZ OVC012
   FM041700 15012G22KT P6SM OVC028
   FM041900 15014G24KT P6SM SCT020 BKN040
   PROB30 0421/0424 6SM -RA
   FM050500 14012KT P6SM BKN015
T94
No NOTAM Available
No
UNATNDD
TWIN OAKS AIR PARK
630 HEIMER RD
SAN ANTONIO, TX 78232
Phone: 210-494-3928
LYNN FOWLER
630 HEIMER RD
SAN ANTONIO, TX 78232
Phone: 210-494-3928
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SJT
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 12/30

2225 ft. x 30 ft.
ASPH
Fair
NONE


4,000lbs
--
--
--
  Runway 12 Runway 30
True Heading Not ListedNot Listed
Traffic Pattern Left
Markings NSTD NSTD
Markings Condition FAIR FAIR
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10RWY SLOPES UP E TO W. 12 END 41 FT HIGHER THAN 30 END.
A110-2HOUSES, HNGRS & TREES IN PRIM SFC.
A110-5ARPT CLSD AT NGT TO TSNT ACFT.
A110-66 FT FENCE LCTD APRXLY 70 FT E OF RWY ENTR LEN.
A110-7ARPT INSIDE SAN ANTONIO CLASS C SFC AREA. CTC SAN ANTONIO ATCT, 119.8.
A110-8FOR CD CTC SAN ANTONIO APCH AT 210-805-5516.
A110-9NO TRML. ARPT FENCED, GATE LOCKED. PUBLIC RESTROOMS AVBL 3RD BLDG FM NW END, W SIDE.
A16ALSO 210-710-3928; ADNL NR 817-800-6615 THOMAS FOWLER.
A42-12_MARKMKG NSTD DUE TO SIZE.
A42-30_MARKMKG NSTD DUE TO SIZE.
A58-126 FT FENCE, 15 FT RD.
A58-306 FT FENCE 13 FT RD.
E111MAY PREDATE THE ACT.
TWIN-OAKS (IATA: T94) is a public airport located in SAN ANTONIO, TX, US.
