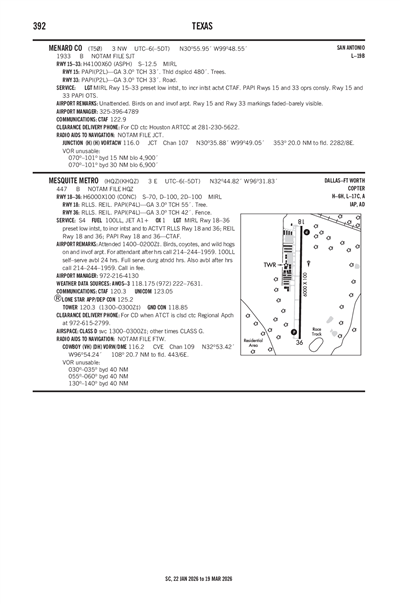

MENARD COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

T50
Local T50
MENARD COUNTY
PublicPUB

3 miles NW of MENARD, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
30° 55' 57"N 99° 48' 33"W
Elevation
1933' MSL
Pattern Alt
2933' MSL
Mag Variation
4°E
Declination
8°E
Fuel
None Listed
FSS
SAN ANGELO (SJT)
Sectional
SAN ANTONIO
ARTCC
HOUSTON (ZHU)
Data Effective
2/19/26-3/19/26
KJCT (25nm) MVFR
4:51 AM CST
Overcast 2,200'
10sm
70°F
65°F
29.98"Hg
170° 8kts
Gusts 17kts
AO2 SLP116 T02110183
METAR KJCT 041051Z AUTO 17008G17KT 10SM OVC022 21/18 A2998 RMK AO2 SLP116 T02110183
+ Add Your Business

T50 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
MIRL RWY 15/33 PRESET LOW INTST; TO INCR INTST ACTVT CTAF. PAPI RWYS 15 & 33 OPRS CONSLY.

FAA A/FD Pages

Terminal Area Forecast

KJCT (25nm)
Tue, 3/3 11:20 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
MVFR
12:00 AM CST - 9:00 AM CST
Broken 1,500'
6sm
150° 8kts
MVFR
9:00 AM CST - 2:00 PM CST
Overcast 1,500'
Broken 1,000'
6sm
180° 12kts
Gusts 20kts
VFR
2:00 PM CST - 6:00 PM CST
Scattered 2,000'
6sm
160° 10kts
VFR
6:00 PM CST - 12:00 AM CST
Sky Clear
6sm
130° 8kts
TAF KJCT 040520Z 0406/0506 15008KT P6SM BKN015
   FM041500 18012G20KT P6SM BKN010 OVC015
   FM042000 16010KT P6SM SCT020
   FM050000 13008KT P6SM SKC
T50
No NOTAM Available
No
UNATNDD
MENARD COUNTY
PO BOX 1038
MENARD, TX 76859
Phone: 325-396-4789
BRANDON CORBIN
PO BOX 1038
MENARD, TX 76859
Phone: 325-396-4789
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SJT
--
MIRL RWY 15/33 PRESET LOW INTST; TO INCR INTST ACTVT CTAF. PAPI RWYS 15 & 33 OPRS CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 15/33

4100 ft. x 60 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 15 Runway 33
True Heading 155°335°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 30° 56' 15"N 30° 55' 39"N
Longitude 99° 48' 43"W 99° 48' 23"W
Elevation 1,933' 1,915'
Threshold Crossing Height 33 ft. AGL 33 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1BIRDS ON & INVOF ARPT.
A110-2FOR CD CTC HOUSTON ARTCC AT 281-230-5622.
A14COUNTY JUDGE/ARPT.MGR
A42-15_CONDMARKINGS FADED-BARELY VISIBLE.
A42-33_CONDMARKINGS FADED-BARELY VISIBLE.
A43-15PAPI OTS
A43-33PAPI OTS.
A57-15APCH RATIO 26:1 AT DSPLCD THR OVR 25 FT TREE, 660 FT DSTC, 180 FT L.
A58-158 FT FENCE 130 FT FROM THR.
A81-APTMIRL RWY 15/33 PRESET LOW INTST; TO INCR INTST ACTVT CTAF. PAPI RWYS 15 & 33 OPRS CONSLY.
MENARD COUNTY (IATA: T50) is a public airport located in MENARD, TX, US.
