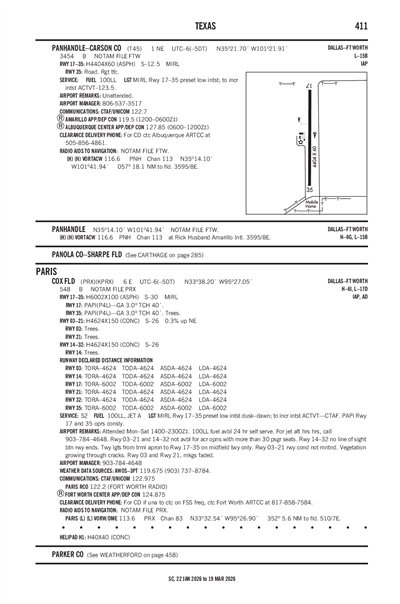

PANHANDLE-CARSON COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

T45
Local T45
PANHANDLE-CARSON COUNTY
PublicPUB

1 miles NE of PANHANDLE, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 21' 42"N 101° 21' 54"W
Elevation
3454' MSL
Pattern Alt
4454' MSL
Mag Variation
6°E
Declination
8°E
Fuel
100LL
FSS
FORT WORTH (FTW)
Sectional
DALLAS-FT WORTH
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KAMA (19nm) IFR
1:53 AM CST
Thunderstorm and Mist in vicinity
Overcast 11,000'
Broken 7,000'
Broken 600'
6sm
39°F
38°F
30.07"Hg
350° 11kts
Gusts 20kts
AO2 PK WND 05033/0714 WSHFT 0717 LTG DSNT NE RAE42 TSE40 CIG 005V009 SLP157 P0059 T00390033
METAR KAMA 040753Z AUTO 35011G20KT 6SM VCTS BR BKN006 BKN070 OVC110 04/03 A3007 RMK AO2 PK WND 05033/0714 WSHFT 0717 LTG DSNT NE RAE42 TSE40 CIG 005V009 SLP157 P0059 T00390033
+ Add Your Business

T45 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.7
UNICOM 122.7

Approach

AMARILLO APPROACH 119.5

Departure

AMARILLO DEPARTURE 119.5

Center

AMARILLO CENTER 127.85
LOW, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC (ZAB) ON FREQS 127.85/285.475 (AMARILLO RCAG) WHEN AMARILLO APCH CTL (AMA) CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KAMA (19nm)
Wed, 3/4 12:08 AM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
VFR
12:00 AM CST - 2:00 AM CST
Broken 10,000'
6sm
010° 12kts
MVFR
Temporary 12:00 AM CST - 2:00 AM CST
Light Thunderstorm and Rain
Broken 5,000'
5sm
Calm
MVFR
2:00 AM CST - 11:00 AM CST
Overcast 1,000'
6sm
360° 10kts
VFR
11:00 AM CST - 7:00 PM CST
Scattered 25,000'
6sm
VRB° 6kts
VFR
7:00 PM CST - 12:00 AM CST
Few 25,000'
6sm
160° 10kts
TAF KAMA 040608Z 0406/0506 01012KT P6SM BKN100
   TEMPO 0406/0408 5SM -TSRA BKN050CB
   FM040800 36010KT P6SM OVC010
   FM041700 VRB06KT P6SM SCT250
   FM050100 16010KT P6SM FEW250
T45
No NOTAM Available
No
UNATNDD
CITY OF PANHANDLE & CARSON CO
P.O. BOX 129
PANHANDLE, TX 79068
Phone: 806-537-3517
TERRY COFFEE
P O BOX 129
PANHANDLE, TX 79068
Phone: 806-537-3517
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
--
MIRL RWY 17/35 PRESET LOW INTST; TO INCR INTST ACTVT - 123.5.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
None
None
None
None
Crop Dusting

Runway 17/35

4404 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 22' 04"N 35° 21' 20"N
Longitude 101° 21' 54"W 101° 21' 54"W
Elevation 3,451' 3,452'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A14CITY MANAGER.
A58-3515 FT ROAD, 0-199 FT DSTC, 210 FT L.
A81-APTMIRL RWY 17/35 PRESET LOW INTST; TO INCR INTST ACTVT - 123.5.
PANHANDLE-CARSON COUNTY (IATA: T45) is a public airport located in PANHANDLE, TX, US.
