iFlightPlanner



...

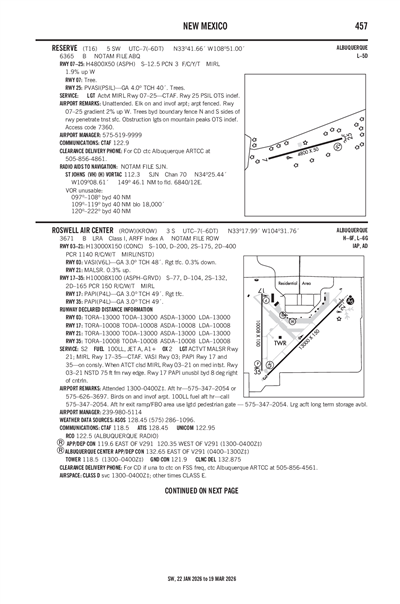

RESERVE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

T16
Local T16
RESERVE
PublicPUB

5 miles SW of RESERVE, NM, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 41' 40"N 108° 50' 60"W
Elevation
6365' MSL
Pattern Alt
7365' MSL
Mag Variation
9°E
Declination
12°E
Fuel
None Listed
FSS
ALBUQUERQUE (ABQ)
Sectional
ALBUQUERQUE
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KJTC (35nm) VFR
6:50 PM MST
Clear
10sm
50°F
14°F
30.05"Hg
250° 7kts
AO2
METAR KJTC 050150Z AUTO 25007KT 10SM CLR 10/M10 A3005 RMK AO2
+ Add Your Business

T16 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RWY 07/25 - CTAF.

FAA A/FD Pages

Terminal Area Forecast

KTCS (84nm)
Wed, 3/4 4:22 PM MST
Wed, 3/4 5:00 PM MST - Thu, 3/5 5:00 PM MST
VFR
5:00 PM MST - 7:00 PM MST
Broken 25,000'
6sm
170° 9kts
Gusts 17kts
VFR
7:00 PM MST - 8:00 PM MST
Broken 25,000'
6sm
230° 10kts
VFR
8:00 PM MST - 9:00 AM MST
Scattered 25,000'
6sm
260° 6kts
VFR
9:00 AM MST - 12:00 PM MST
Sky Clear
6sm
170° 7kts
VFR
12:00 PM MST - 5:00 PM MST
Sky Clear
6sm
210° 15kts
Gusts 30kts
TAF KTCS 042322Z 0500/0524 17009G17KT P6SM BKN250
   FM050200 23010KT P6SM BKN250
   FM050300 26006KT P6SM SCT250
   FM051600 17007KT P6SM SKC
   FM051900 21015G30KT P6SM SKC
T16
No NOTAM Available
No
UNATNDD
U. S. FOREST SERVICE
FEDERAL BUILDING
ALBUQUERQUE, NM 87102
Phone: 575-766-2444
STAN BROWN
PO BOX 507
RESERVE, NM 87830
Phone: 575-519-9999
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ABQ
--
ACTVT MIRL RWY 07/25 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 07/25

4800 ft. x 50 ft.
ASPH
Good
NONE
MED
3/F/C/Y/T
12,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 75°255°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 33° 41' 33"N 33° 41' 46"N
Longitude 108° 51' 27"W 108° 50' 33"W
Elevation 6,365' 6,274'
Threshold Crossing Height -- 40 ft. AGL
Visual Glide Path Angle -- 4°
Visual Slope Indicator -- PSIL
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11LEASED CATRON COUNTY.
A110-3ELK ON & INVOF ARPT; ARPT FENCED.
A110-5OBSTN LGTS ON MTN PEAKS OTS INDEF.
A110-6ACES CODE 7360.
A110-8FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A16EMERG - 575-533-6222.
A30-07/252 PCT W UPSLOPE. TREES BYD BDRY FENCE BOTH SIDES OF RWY PENETRATE TSNT SFC.
A43-25PSIL OTS INDEF.
A57-07EXCEEDS 45 DEG SLOPE
A58-07+4-18 FT BRUSH & TREES 0-200 FT FM RWY END 80-125 FT L OF CNTRLN.
A58-25+3-5 FT BRUSH 20-200 FT FM RWY END 0-120 FT L OF CNTRLN.
A81-APTACTVT MIRL RWY 07/25 - CTAF.
RESERVE (IATA: T16) is a public airport located in RESERVE, NM, US.
