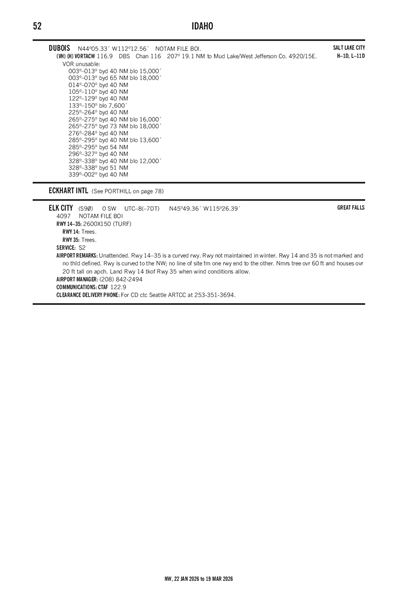

ELK CITY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

S90
Local S90
ELK CITY
PublicPUB

0 miles SW of ELK CITY, ID, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 49' 22"N 115° 26' 23"W
Elevation
4097' MSL
Pattern Alt
5097' MSL
Mag Variation
13°E
Declination
18°E
Fuel
None Listed
FSS
BOISE (BOI)
Sectional
GREAT FALLS
ARTCC
SEATTLE (ZSE)
Data Effective
2/19/26-3/19/26
KP69 (20nm) VFR
10:52 PM PST
No Clouds
N/A
41°F
39°F
30.03"Hg
Calm
AO1 SLPNO T00500039 $
METAR KP69 040652Z AUTO 00000KT 05/04 A3003 RMK AO1 SLPNO T00500039 $
+ Add Your Business

S90 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KHRF (61nm)
Tue, 3/3 10:20 PM MST
Tue, 3/3 11:00 PM MST - Wed, 3/4 11:00 PM MST
VFR
11:00 PM MST - 7:00 AM MST
Sky Clear
6sm
190° 7kts
VFR
7:00 AM MST - 3:00 PM MST
Showers in vicinity
Overcast 5,000'
6sm
190° 12kts
MVFR
3:00 PM MST - 11:00 PM MST
Light Rain
Overcast 3,500'
5sm
190° 12kts
MVFR
5:00 PM MST - 6:00 PM MST
Light Rain
Broken 2,500'
4sm
Calm
TAF KHRF 040520Z 0406/0506 19007KT P6SM SKC
   FM041400 19012KT P6SM VCSH OVC050
   FM042200 19012KT 5SM -RA OVC035
   PROB30 0500/0501 4SM -RA BKN025
S90
No NOTAM Available
No
UNATNDD
ELK CITY AREA ALLIANCE
GEN DELIVERY
ELK CITY, ID 83525
Phone: 208-842-2311
DEBBIE TAYLOR
PO BOX 345
ELK CITY, ID 83525
Phone: (208) 842-2494
BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF
BOI
--
--
N/A
Yes
No
No
Tie-Down
No
Minor
Minor
None
None
None

Runway 14/35

2600 ft. x 150 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 14 Runway 35
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1LAND RY 14 TKOF RY 35 WHEN WIND CONDITIONS ALLOW.
A110-2RWY NOT MAINTAINED IN THE WINTER.
A110-4RWY 14 & 35 IS NOT MARKED & NO THLD DEFINED. RWY IS CURVED TO THE NW; NO LINE OF SITE FM ONE RWY END TO THE OTHER.
A110-5FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
A110-6NMRS TREES OVR 60 FT AND HOUSES OVR 20 FT TALL ON APCH.
A30-14/35IS A CURVED RWY.
A52-35ADDNL OBSTNS: +100' RIDGE AT 1200'; ON CNTRLN +35' RIDGE AT 500' ON CNTRLN; 250'TREES & TERRAIN AT 2500' ON CNTRLN.
A57-14CTLG OBST EXCEEDS 45 DEG SLP.
ELK CITY (IATA: S90) is a public airport located in ELK CITY, ID, US.
