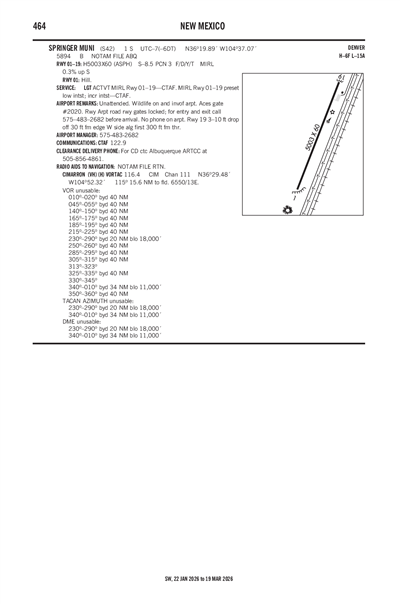

SPRINGER MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

S42
Local S42
SPRINGER MUNI
PublicPUB

1 miles S of SPRINGER, NM, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 19' 53"N 104° 37' 04"W
Elevation
5894' MSL
Pattern Alt
6894' MSL
Mag Variation
7°E
Declination
11°E
Fuel
None Listed
FSS
ALBUQUERQUE (ABQ)
Sectional
DENVER
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KRTN (25nm) VFR
8:53 PM MST
Few 11,000'
10sm
42°F
34°F
30.17"Hg
010° 9kts
AO2 SLP169 T00560011
METAR KRTN 040353Z AUTO 01009KT 10SM FEW110 06/01 A3017 RMK AO2 SLP169 T00560011
+ Add Your Business

S42 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RWY 01/19 - CTAF. MIRL RWY 01/19 PRESET LOW INTST; INCR INTST - CTAF.

FAA A/FD Pages

Terminal Area Forecast

KSAF (84nm)
Tue, 3/3 4:20 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 7:00 PM MST
Few 12,000'
6sm
270° 10kts
Gusts 20kts
VFR
7:00 PM MST - 1:00 PM MST
Sky Clear
6sm
360° 9kts
VFR
1:00 PM MST - 5:00 PM MST
Sky Clear
6sm
250° 8kts
TAF KSAF 032320Z 0400/0424 27010G20KT P6SM FEW120
   FM040200 36009KT P6SM SKC
   FM042000 25008KT P6SM SKC
S42
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
0938Z
6/23/26
0938Z
!ABQ 02/256 S42 OBST TOWER LGT (ASR 1003275) 360117.80N1044211.80W (19.0NM SSW S42) 6658.8FT (299.9FT AGL) U/S 2602230938-2606230938
No
UNATNDD
TOWN OF SPRINGER
PO BOX 488
SPRINGER, NM 87747
Phone: 575-483-2682
CRAIG EPPLER
P.O. BOX 488
SPRINGER, NM 87747
Phone: 575-483-2682
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ABQ
--
ACTVT MIRL RWY 01/19 - CTAF. MIRL RWY 01/19 PRESET LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 01/19

5003 ft. x 60 ft.
ASPH
Good
NONE
MED
3/F/D/Y/T
8,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 20°200°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 19' 30"N 36° 20' 17"N
Longitude 104° 37' 15"W 104° 36' 54"W
Elevation 5,877' 5,894'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RY ARPT ROAD GATES LOCKED; FOR ENTRY & EXIT CALL 575-483-2682 BEFORE ARRIVAL. NO PHONE ON ARPT.
A110-3WILDLIFE ON & INVOF ARPT.
A110-4FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A110-5ACES GATE #2020.
A16EMERG - 575-707-0265.
A30A-193-10 FT DROP OFF 30 FT FM EDGE W SIDE ALG FIRST 300 FT FM THR.
A81-APTACTVT MIRL RWY 01/19 - CTAF. MIRL RWY 01/19 PRESET LOW INTST; INCR INTST - CTAF.
SPRINGER MUNI (IATA: S42) is a public airport located in SPRINGER, NM, US.
