PWAK
WAKE ISLAND AIRFIELD
PrivatePVT

0 miles N of WAKE ISLAND, QW
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
19° 16' 57"N 166° 38' 12"E
23' MSL
1023' MSL
06E
None Listed
HONOLULU (HNL)
GNC 7
OAKLAND OCEANIC ARTCC (ZAK)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

PWAK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

No communication frequencies available for this airport.

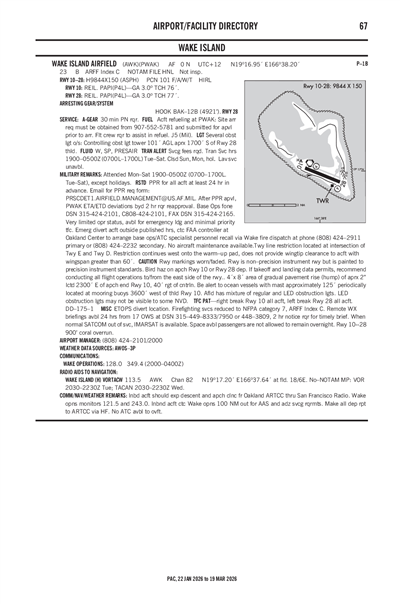

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
PWAK
Military
1/1/251959Z !PWAK M0006/25 AWK RWY 28 6000FT DIST REMAINING SIGN S SIDE NOT STD SIGN FACE UNREADABLE 2501011959-2504011900
1/1/251958Z AERODROME OPERATING HOURS TUES-SAT 1900Z-0500Z (0700L-1700L)
1/1/251958Z TWY E BTWN B AND C UNSUITABLE FOR C5, B747, A380, A340, AN124 DUE TO POTENTIAL FOD HAZARD EXISTING BEYOND THE PAVED SURFACE OF THE TWY.
1/1/251957Z !PWAK M0003/25 AWK RWY 28 8000FT DIST REMAINING SIGN S SIDE NOT LGTD 2501011957-2504011900
1/1/251955Z !PWAK M0001/25 AWK RWY 10 1000FT DIST REMAINING SIGN S SIDE NOT LGTD 2501011955-2504011900
No
EXC HOL
MON-SAT 2000Z-0400Z
(0800-1600L TUE-SAT)
AIR FORCE
DETACHMENT 3, 13 AF,PACAF
WILLIAM K LUIKART
P O BOX 187
WAKE ISLAND 96898
Phone: 808-424-2101/200
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
HNL
--
--
N/A
Yes
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 10/28

9844 ft. x 150 ft.

ASPH
NONE
HIGH
90 /F/A/W/T
--
--
--
--
  Runway 10 Runway 28
True Heading 102°282°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 19° 17' 07"N 19° 16' 47"N
Longitude 166° 37' 22"E 166° 39' 02"E
Elevation 23' 20'
Threshold Crossing Height 76 ft. AGL 77 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-10RSTD: NO AIRCRAFT MAINTENANCE AVBL. TAXIWAY LINE RESTRICTION LOCATED AT INTERSECTION OF TAXIWAY ECHO AND DELTA. CONTINUES (WEST) ONTO THE WARM-UP PAD DOES NOT PROVIDE WINGTIP CLEARANCE TO AIRCRAFT WITH WINGSPAN GREATER THAN 60 FEET.
A110-13BE ALERT TO OCEAN VESSELS WITH MAST APRX 125 FT PERIODICALLY LCTD AT MOORING BUOYS 3600 FT W OF THLD RY 10.
A110-21ARRESTING GEAR - (RWY 28) HOOK BAK 12B (4921').
A110-23MISC: REMOTE WX BRIEFINGS AVBL H24 FR 17 OWS AT DSN 315-449-8333/7950 OR 448-3809, 2HR NTC RQR FOR TIMELY BRIEF. WHEN NML SATCOM O/S, IMARSAT IS AVBL. SPACE AVBL PAX ARE NA TO RON.
A110-24RSTD: PPR FOR ALL ACFT AT LEAST 24 HR IN ADVANCE. PPR PHONE ONLY DSN 424-2101, C808-424-2101, FAX DSN 315-424-2165, C808-424-2165, OR E-MAIL: BASEOPS@WAKEISLAND.NET .
A110-26RSTD: VERY LIMITED OPERATIONS STATUS, AVBL FOR EMERG LDG AND MIN PRIORITY TFC.
A110-27TFC PAT: RGT BREAK RY 10 ALL ACFT, LEFT BREAK RY 28 ALL ACFT.
A110-29TRAN ALERT: SVCG FEES RQD. TRAN SVC HRS 2000-0400Z (0800L-1600L) TUE-SAT. CLSD SUN, MON, HOL.
A110-3FUEL: FLIGHT CREW REQUIRED TO ASSIST IN REFUELING. J5(MIL). FLUID - W, SP, PRESAIR.
A110-30MISC: ETOPS DIVERT LCTN. FIREFIGHTING SVCS REDUCED TO NFPA CAT 7, ARFF INDEX C.
A110-32CAUTION: AFLD HAS MIXTURE OF REGULAR AND LED OBST LGT. LED OBST LGTS MAY NOT BE VISIBLE TO SOME NVD.
A110-34EMAIL FOR PPR REQ FORM: PRSCDET1.AIRFIELD.MANAGEMENT@US.AF.MIL. AFTER PPR APVL, PWAK ETA/ETD DEVIATIONS BYD 2 HR RQR REAPPROVAL. BASE OPS FONE DSN 315-424-2101, C808-424-2101, FAX DSN 315-424-2165.
A110-35RSTD: EMERG DIVERT ACFT OUTSIDE PUBL AFLD HRS, CTC FAA CONTROLLER AT OAKLAND ARTCC TO ARRANGE BASE OPS/ATC SPECIALIST PERSONNEL RECALL VIA WAKE FIRE DISPATCH AT FONE 808-424-2911 PRI OR 808-424-2232 SEC.
A110-36SERVICE-TRAN ALERT: LAV SVC UNAVBL.
A110-37CTC WAKE ISLAND ARPT OPERATIONS ON 128.0/349.4.
A110-39SERVICE - FUEL: ACFT REFUELING AT PWAK: SITE ARR REQ MUST BE OBTAINED FROM 907-552-5781 AND SUBMITTED FOR APVL PRIOR TO ARR.
A110-40SERVICE-LGT: SEVERAL OBST LGT O/S: CONTROLLING OBST LGT TOWER 101 FT AGL APRX 1700 FT S OF RWY 28 THLD.
A110-41RWY - CAUTION: 4 FT X 8 FT AREA OF GRADUAL PAVEMENT RISE (HUMP) OF APRX 2 INCHES LCTD 2300 FT E OF APCH END RWY 10, 40 FT RGT OF CNTLN.
A110-6BE ALERT TO BIRD HAZARD ON APCH TO RY 10 AND RY 28 DEP.
WAKE ISLAND AIRFIELD (ICAO: PWAK, IATA: AWK) is a private airport located in WAKE ISLAND, QW.
