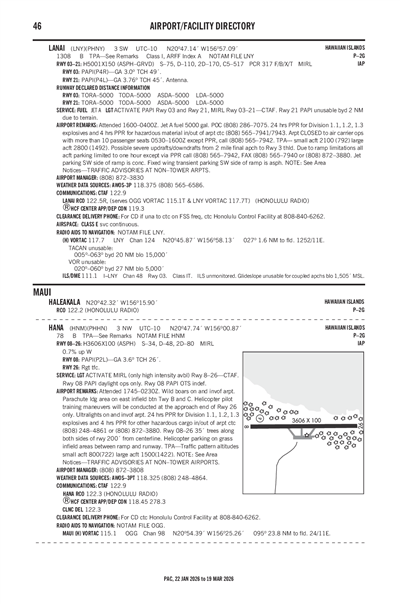

LANAI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PHNY
ICAO PHNYIATA LNYLocal LNY
LANAI
PublicPUB

3 miles SW of LANAI CITY, HI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
20° 47' 08"N 156° 57' 05"W
Elevation
1308' MSL
Pattern Alt
2308' MSL
Mag Variation
9°E
Declination
11°E
Fuel
JET A
FSS
HONOLULU (HNL)
Sectional
HAWAIIAN ISLANDS
ARTCC
HONOLULU CONTROL FACILITY (ZHN)
Data Effective
2/19/26-3/19/26
PHNY VFR
7:56 PM HST
Clear
10sm
68°F
65°F
30.09"Hg
020° 8kts
AO2 SLP170 T02000183 10250 20200 51009 $
METAR PHNY 040556Z AUTO 02008KT 10SM CLR 20/18 A3009 RMK AO2 SLP170 T02000183 10250 20200 51009 $
+ Add Your Business

PHNY FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 118.375
(808) 565-6586, (COMM_DECOMM_DATE) AUTOMATED WEATHER SENSOR SYSTEM (AWSS)

Common

CTAF 122.9
ACTVT PAPI RWY 3 & 21; MIRL RWY 03/21 - CTAF.

Center

HCF CENTER CENTER 119.3
LOW/HIGH, PRIMARY FOR LANAI AREA. PRIMARY FOR AREA NE AND E OF HNL VORTAC OUT TO APPROXLY 90NM.; APCH/DEP SVC PRVDD BY HONOLULU CONTROL FACILITY (ZHN) ON FREQ 119.3 & 307.1 (MOUNT HALEAKALA RCAG).

Flight Service

Flight Service 122.5
(HNL), 122.5R (PHYSICALLY LOCATED AT HALEAKALA 4HK) SERVES OGG VORTAC (115.1T) & LNY VORTAC (117.7T).

Terminal Area Forecast

PHNY
Tue, 3/3 7:20 PM HST
Tue, 3/3 8:00 PM HST - Wed, 3/4 8:00 PM HST
VFR
8:00 PM HST - 10:00 AM HST
Scattered 2,000'
6sm
040° 8kts
MVFR
10:00 AM HST - 8:00 PM HST
Broken 2,500'
6sm
VRB° 6kts
TAF PHNY 040520Z 0406/0506 04008KT P6SM SCT020
   FM042000 VRB06KT P6SM BKN025
PHNY
EffectiveExpiresCategoryNOTAM
Domestic
3/6/26
1900Z
3/7/26
0230Z
!LNY 03/001 LNY NAV ILS RWY 03 U/S 2603061900-2603070230
3/3/26
1011Z
!LNY 03/004 LNY SVC AUTOMATED WX BCST SYSTEM U/S 2603031011-2603312359EST
3/1/26
2000Z
3/31/26
2330Z
Runway!LNY 02/022 LNY RWY 03/21 SAFETY AREA WIP W SIDE MOWING DAILY 2000-2330 2603012000-2603312330
3/1/26
2000Z
3/31/26
2330Z
Runway!LNY 02/021 LNY RWY 03/21 SAFETY AREA WIP E SIDE MOWING DAILY 2000-2330 2603012000-2603312330
3/1/26
2000Z
3/31/26
2330Z
Runway!LNY 02/020 LNY RWY 03/21 SAFETY AREA WIP S END MOWING DLY
2000-2330 2603012000-2603312330
3/1/26
2000Z
3/31/26
2300Z
Runway!LNY 02/018 LNY RWY 03/21 SAFETY AREA WIP N END MOWING DLY
2000-2300 2603012000-2603312300
2/28/26
2001Z
3/14/26
2000Z
Runway!LNY 02/017 LNY RWY 21 PAPI U/S 2602282001-2603142000
2/27/26
2001Z
3/31/26
2000Z
!LNY 02/016 LNY TWY A HLDG PSN MARKINGS NORTHWEST SIDE NOT STD 2602272001-2603312000
2/27/26
2001Z
3/31/26
2000Z
Runway!LNY 02/015 LNY RWY 03/21 SAFETY AREA NOT STD W SIDE RUTS 2602272001-2603312000
2/27/26
2001Z
3/31/26
2000Z
Runway!LNY 02/014 LNY RWY 03/21 SAFETY AREA NOT STD E SIDE RUTS 2602272001-2603312000
2/24/26
1658Z
3/11/26
1658Z
!LNY 02/013 LNY AD AP ABN U/S 2602241658-2603111658
4/5/24
2224Z
Runway!LNY 04/002 LNY RWY 03/21 SFC MARKINGS N SIDE NOT STD 2404052224-PERM
FDC
3/3/26
1026Z
!FDC 6/2457 LNY IAP LANAI, LANAI CITY, HI.
VOR OR TACAN RWY 3, AMDT 7C...
WHEN LOCAL ALTIMETER NOT RECEIVED, PROCEDURE NA, EXCEPT FOR OPERATORS WITH APPROVED WEATHER REPORTING SERVICE. LANAI CITY (LNY) AWOS OUT OF SERVICE.
2603031026-2604031026EST
3/3/26
0510Z
!FDC 6/2451 LNY IAP LANAI, LANAI CITY, HI.
VOR OR TACAN OR GPS-A, AMDT 8B...
VOR OR TACAN PORTION.
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LNY VORTAC UNMONITORED. 2603030510-2603310510EST
3/3/26
0510Z
!FDC 6/2450 LNY IAP LANAI, LANAI CITY, HI.
VOR OR TACAN RWY 3, AMDT 7C...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LNY VORTAC UNMONITORED. 2603030510-2603310510EST
5/12/25
1852Z
!FDC 5/9505 LNY IAP LANAI, LANAI CITY, HI.
VOR OR TACAN RWY 3, AMDT 7C...
S-3 MDA 1700/HAT 393 ALL CATS.
CIRCLING CAT A MDA 1860/HAA 552.
WHEN LOCAL ALTIMETER NOT RECEIVED, PROCEDURE NA, EXCEPT FOR OPERATORS WITH APPROVED WEATHER REPORTING SERVICE.
2505121852-2705131852EST
5/12/25
1851Z
!FDC 5/9499 LNY IAP LANAI, LANAI CITY, HI.
VOR OR TACAN OR GPS-A, AMDT 8B...
CIRCLING CAT A MDA 1860/HAA 552.
CHANGE MISSED APPROACH TO READ: CLIMBING RIGHT TURN TO 2400 VIA LNY R-278 TO GRAMY INT/LNY 10 DME AND HOLD.
2505121851-2705131851EST
4/3/25
1150Z
4/5/27
1150Z
!FDC 5/1607 LNY PART 1 OF 2 ODP LANAI, LANAI CITY, HI.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5...
TAKEOFF MINIMUMS:
RWY 3, 400 1 1/4 WITH MINIMUM CLIMB OF 318 FT/NM TO 2400, OR
STANDARD WITH MINIMUM CLIMB OF 370 FT/NM TO 2700, OR 4100-3 FOR
VCOA.
DEPARTURE PROCEDURE:
RWY 3, CLIMB ON HEADING 033 TO 1720, THEN CLIMBING LEFT TURN
HEADING 300 OR 180 TO INTERCEPT ROUTE OR AIRWAY, THEN CONTINUE AS
CLEARED. MAINTAIN 210 KTS UNTIL TURN IS COMPLETED.
VCOA:
RWY 3, OBTAIN ATC APPROVAL FOR VCOA WHEN REQUESTING IFR CLEARANCE.
CLIMB IN VISUAL CONDITIONS TO CROSS LNY VORTAC AT OR ABOVE 5300
BEFORE PROCEEDING ON COURSE.
IN ADDITION TO PUBLISHED TAKEOFF OBSTACLES NOTES ADD:
RWY 3, WIND INDICATOR 0 FT FROM DER, 252 FT RIGHT OF CENTERLINE, 21
FT AGL/1327 FT MSL. VEGETATION 38 FT FROM DER, 489 FT LEFT OF
CENTERLINE, 1311 FT MSL. TREE 150 FT FROM DER, 465 FT LEFT OF
CENTERLINE, 15 FT AGL/1322 FT MSL. TREES, FENCES, VEGETATION,
TERRAIN, NAVAID BEGINNING 446 FT FROM DER, 205 FT LEFT OF
CENTERLINE, UP TO 1353 FT MSL. VEGETATION 1820 FT FROM DER, 960 FT
ALL OTHER DATA REMAINS AS PUBLISHED. 2504031150-2704051150EST
END PART 1 OF 2
!FDC 5/1607 LNY PART 2 OF 2 ODP LANAI, LANAI CITY, HI.
LEFT OF CENTERLINE, 1358 FT MSL. VEGETATION 1943 FT FROM DER, 789
FT LEFT OF CENTERLINE, 1361 FT MSL. VEGETATION BEGINNING 2023 FT
FROM DER, 862 FT LEFT OF CENTERLINE, UP TO 1365 FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2504031150-2704051150EST
END PART 2 OF 2
No
0600-1800
HAWAII ST ARPTS DIV
HONOLULU INTL ARPT
HONOLULU, HI 96819
Phone: 808-838-8600
MARVIN MONIZ
KAHULUI ARPT
KAHULUI, HI 96732
Phone: 808-281-8801
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
LNY
--
ACTVT PAPI RWY 3 & 21; MIRL RWY 03/21 - CTAF.
DUSK-DAWN.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Air Freight
Cargo Handling

Runway 03/21

5001 ft. x 150 ft.
ASPH
Good
GRVD
MED

75,000lbs
110,000lbs
170,000lbs
--
  Runway 03 Runway 21
True Heading 44°224°
Traffic Pattern Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 20° 46' 50"N 20° 47' 26"N
Longitude 156° 57' 23"W 156° 56' 47"W
Elevation 1,307' 1,308'
Threshold Crossing Height 49 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3.76°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1SEE AREA NOTICES, TFC ADVYS AT NON-TWR ARPTS.
A110-10FIXED WING TSNT PRKG NE SIDE OF RAMP IS ASPH.
A110-11FOR CD IF UNA TO CTC ON FSS FREQ, CTC HONOLULU CONTROL FACILITY AT 808-840-6262.
A110-324 HRS PPR FOR DIVISION 1.1,1.2,1.3 EXPLOSIVES AND 4 HRS PPR FOR HAZARDOUS MATERIAL IN/OUT OF ARPT CTC 808-565-7941/7943.
A110-5DUE TO RAMP LIMITATIONS ALL ACFT PARKING LIMITED TO ONE HR EXCP VIA PPR CALL 808-565-7942; FAX 808-565-7940 OR 808-872-3880.
A110-8JET PRKG SW SIDE OF RAMP IS CONC.
A110-9POSSIBLE SEVERE UPDRAFTS/DOWNDRAFTS FROM 2 MILE FINAL APPROACH TO RUNWAY 3 THRESHHOLD.
A14ARPT OPNS/MAINT MAN/AOM/MR. ALAN FERNANDEZ PHONE 565-7942, CELL PHONE 281-9899.
A26ARPT CLOSED TO AIR CARRIER OPS WITH 10 OR MORE PASSENGER SEATS 1930-0600 EXCEPT PPR, CALL 808-565-7942.
A39-03/21PCR VALUE: 317/F/B/X/T
A43-21PAPI UNUSBL BYD 2 NM DUE TO TRRN.
A70-AJET A FUEL 5000 GAL. POC: MIKE HANOC 808-286-7075
A81-APTACTVT PAPI RWY 3 & 21; MIRL RWY 03/21 - CTAF.
A81-BCNDUSK-DAWN.
E147<TPA SMALL ACFT 2100' MSL. LARGE ACFT 2800' MSL.
LANAI (ICAO: PHNY, IATA: LNY) is a public airport located in LANAI CITY, HI, US.
