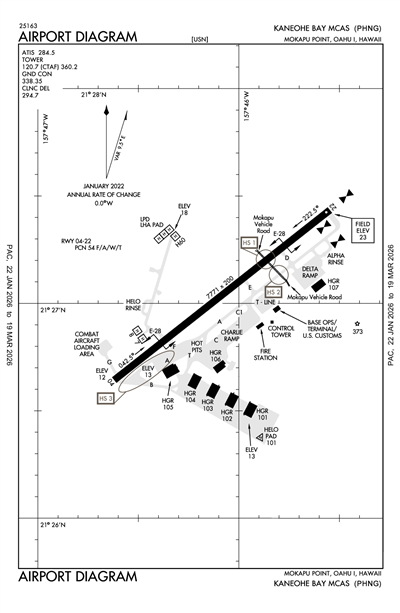

KANEOHE BAY MCAS (MARION E CARL FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PHNG
ICAO PHNGIATA NGFLocal NGF
KANEOHE BAY MCAS (MARION E CARL FLD)
PrivatePVT

2 miles SW of KANEOHE, HI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
21° 27' 02"N 157° 46' 05"W
Elevation
23' MSL
Pattern Alt
1023' MSL
Mag Variation
10°E
Declination
10°E
Fuel
None Listed
FSS
HONOLULU (HNL)
Sectional
HAWAIIAN ISLANDS
ARTCC
HONOLULU CONTROL FACILITY (ZHN)
Data Effective
2/19/26-3/19/26
PHNG VFR
3:57 PM HST
Scattered 10,000'
Scattered 2,600'
7sm
77°F
64°F
30.00"Hg
070° 11kts
Gusts 16kts
AO2 SLP153 T02500178
METAR PHNG 040157Z 07011G16KT 7SM SCT026 SCT100 25/18 A3000 RMK AO2 SLP153 T02500178
+ Add Your Business

PHNG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 120.7

Tower

MARINE KANEOHE TOWER 120.7
OPR MON-THU 1730-1000Z; FRI 1730-0600Z; CLSD SAT, SUN AND HOL. OT CTC HONOLULU CTL FAC.

Approach

KANEOHE APPROACH 125.0

Departure

KANEOHE DEPARTURE 125.0

Center

KANEOHE CENTER 124.1
LOW/HIGH, PRIMARY FOR AREA NE AND E OF HNL VORTAC OUT TO APPROXLY 90NM.; APCH/DEP SVC PRVDD BY HONOLULU CONTROL FACILITY (ZHN) ON FREQ 124.1/317.5 (MOUNT HALEAKALA RCAG) WHEN KANEOHE APCH CTL (NGF) CLSD.

Emergency

Emergency 121.5

Terminal Area Forecast

PHNG
Tue, 3/3 11:03 AM HST
Tue, 3/3 11:00 AM HST - Wed, 3/4 11:00 AM HST
MVFR
11:00 AM HST - 11:00 AM HST
Broken 2,500'
6sm
29.97"Hg
070° 10kts
Gusts 20kts
MVFR
Temporary 11:00 PM HST - 5:00 AM HST
Light Showers and Rain and Mist
Broken 2,000'
4.97sm
Calm
TAF PHNG 0321/0421 07010G20KT 9999 BKN025 QNH2997INS
   TEMPO 0409/0415 8000 -SHRA BR BKN020 TX25/0400Z TN21/0415Z
PHNG
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
1930Z
!PHNG 02/002 NGF AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF NGF SFC-3500FT AGL ACFT CS FLC94 2602251930-2602252330EST
2/13/26
0138Z
6/30/26
0959Z
!PHNG 02/001 NGF SVC SEE ZHN 02/158 FPL PROCESSING 2602130138-2606300959
Military
2/26/26
1830Z
2/27/26
0715Z
NVG C-17 BOX CALLS 26 FEB, FROM 2015-2115 (HST).
2/25/26
1830Z
2/26/26
0745Z
NVG C-17 BOX CALLS 25 FEB, FROM 2015-2145 (HST).
2/24/26
2130Z
2/27/26
2130Z
L0008/26 NOTAMC L0005/26
2/24/26
2129Z
4/30/26
1100Z
EFFECTIVE 01 FEB OPR HRS MON: 1830-0300Z (0830-1700 HST); TUE-FRI: 1830-1100Z (0830-0100 HST); SAT (TENANT UNITS ONLY): 0700-1100Z (2100-0100 HST); CLSD SUN, AND HOL. PPR REQ.
2/24/26
2125Z
2/27/26
2125Z
L0006/26 NOTAMC L0004/26
2/24/26
1830Z
2/25/26
0720Z
NVG C-17 BOX CALLS 24 FEB, FROM 2010-2115 (HST).
2/23/26
2229Z
3/23/26
1830Z
ALPHA TWY CLSD BETWEEN TANGO AND BRAVO1 TWY.
2/23/26
2227Z
2/26/26
2227Z
M0081/26 NOTAMC M0079/26
2/23/26
2057Z
4/17/26
1830Z
PHNG ATC TEMPORARILY UNABLE TO FILE INFLIGHT FLIGHT PLANS, AIRCRAFT MUST FILE DD1801 FOR ALL LEGS OF FLIGHT PLANS.
2/23/26
1800Z
2/28/26
0230Z
SUAS OPS AT THE VICINITY OF LZ BOONDOCKER, 23-27 FEB 26, 0800-1630 HST, SFC TO 800FT AGL.
2/23/26
1700Z
3/1/26
0800Z
SUAS OPS WITHIN A 2NM RADIUS OF MCTAB TRAINING AREA (BELLOWS) SFC-1000FT, 23 - 28 FEB 26, 0800-2200 (HST).
2/23/26
1600Z
2/28/26
0200Z
SUAS OPS AT THE VICINITY OF LZ EAGLE, 23-27 FEB 26, 0600-1600 HST, SFC TO 800FT AGL.
1/20/26
1730Z
2/28/26
0959Z
ALL FUEL PITS OTS. FUEL TRUCK AVAILABLE AT FUEL PIT DELTA. FROM JAN 20 - FEB 27.
1/5/26
1730Z
3/2/26
0959Z
MEN AND EQUIPMENT IVO HELICOPTER RINSE FACILITY
Yes
ALL
OPR MON-THU 1730-1000Z; FRI 1730-0600Z; CLSD SAT, SUN AND EXTDD HOL PDS. CTC MCAS AIRFIELD OPS FOR EXACT DATES AND TIMES. OTH OPR HRS BY STRICT PPR APVL. OT CTC HONOLULU CTL FAC.
US NAVY
OCEANOGRAPHIC OFC - CODE 3142
WASHINGTON, DC 20373
N/A
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
PHNG
--
RWY LGTS AVBL DUR OPR HR.
N/A
N/A
No
No
None
No
None
None
High & Low Pressure
High & Low Pressure
None

Runway 04/22

7771 ft. x 200 ft.
ASPH
Good
NONE
HIGH
54/F/A/W/T
--
--
--
--
  Runway 04 Runway 22
True Heading 52°232°
Traffic Pattern
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 21° 26' 38"N 21° 27' 26"N
Longitude 157° 46' 37"W 157° 45' 32"W
Elevation 12' 23'
Threshold Crossing Height 50 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SSALR SSALR
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-16(E114) J5 (NATO CODE F-44) FUEL AVBL.
A110-17(E60-04) E28(B) (1680').
A110-20SERVICE-LGT: RY 04 OLS; WAVE-OFF.
A110-24JASU - 2(MMG-1) (MMG-1A) 12(MMG-2) 2(NC-10A) (NCPP-105).
A110-25FUEL - J5, J8.
A110-26FLUID - LOX - TMU 27/70 RQR 24 HR PN.
A110-27OIL - O-128-132-133-156; SOAP AVBL PEARL HARBOR NS 1700-0130Z MON-FRI, OT PN RQR.
A110-32CSTMS/AG/IMG - ALL ACFT ARR OGNG OUTSIDE CONUS RQR MANDATORY CSTMS/AG/IMG/USDA INSPNS WITH 24 HR PN. ALL ACFT DEP TO CONUS RQR MANDATORY USDA INSPN. PHONE 3 HRS PRIOR TO ARR TO UPDATE CREW AND PAX INFO TO INCL FOREIGN NATL STS. ALL ACFT ARRS ARE RQRD TO NOTIFY AIR OPS OF ANYONE SUSPECTED OF ILLNESS PRIOR TO ARR TO K-BAY. FAILURE TO COMPLY WILL DELAY PAX DEBARKATION AND/OR POSS FINES. ACFT COMMANDER WILL COMPLY WITH ALL CSTMS/AG/IMG/USDA REGS. ALL MANDATED INSPNS ARRS COORD THRU VISITING ACFT LINE (VAL). FOR SKED USDA INSPNS CTC VAL ARR WITH PPSD DEP DATE/TIME, DSN 315-496-1604/1106 OR C808-496-1604/1106.
A110-34CAUTION - EXTV R/W TFC IN IMMED VCNTY NW OF RWY AT 500' AND BLW. BIRD HAZ.
A110-35TFC PAT - TSNT AIRCREW MUST OBTAIN CRS RULES BRIEFING PRIOR TO CONDUCTING OVHD BREAK; LCL ACFT ALT FIXED WING 1000 FT, ROTARY WING 500 FT.
A110-36MISC: RWY 22 GRAD FOR FIRST 2000 FT IS -0.3 PCT. VFR ACFT SEE SEC E FOR PREFERRED RTE.
A110-38RSTD 1 OF 3: ALL TSNT AND TENANT ACFT ARR/DEP OUTSIDE OF LOCAL FLYING AREA RQR A PPR. PPR WILL ONLY ISSUED DRG PUBLISHED OPR HRS. 48 HR NOTICE RQRD FOR ANY PPR CHG. CUSTOMS/AG/IMG RQR 24 HR ADVN NOTICE.
A110-39RSTD 2 OF 3: ACFT COMMANDERS ARE RESPONSIBLE FOR COORDG CHGS WITH FLT PLANNING AT DSN 315-496-2121/2122, C808-496-2121/2122. AFTER HRS CTC OPS DUTY OFFICER C808-348-4511.
A110-40RSTD 3 OF 3: ACFT CARRYING HAZUS CLASS 1.3 AND 1.4 MUNITIONS SHALL NOT EXCEED 50 LBS NET UNLESS SKEDD FOR COMBAT AIRCRAFT LOADING AREA (CALA) PRKG. CALA PRKG RQRD WILL BE CLEARLY IDENTIFIED ON PPR.
A110-41MISC: CLASS D ASP REVERTS TO CLASS E ASP WHEN TWR CLSD. CTC BASE OPS FOR ALL PPR REQS (OPR HRS, VAL REQS) AT DSN 315-496-2121/2122 OR C808-496-2121/2122 OR MCBH.ATC.SCHEDS.FMB@USMC.MIL. MIN 24 HR PN RQRD. PPR APVL ONLY DRG OPR HRS. REQ FONE PATCH 2 HRS PRIOR ARR.
A110-42RSTD: TWY T DSGND AS TOW WAY FROM TWY B TO FUEL PITS. TWY F DSGND AS TOW WAY FROM HEL RINSE TO COMPASS ROSE.
A110-43MISC - ALL CLSD ATCT AFLD OPS CAN ONLY BE APVD BY THE AFLD MGR. DSN 457-5551, C808-257-5551. *NOTE HEL/TILT ROTOR ONLY.
A110-44TRAN ALERT - OPR VISITING ACFT LINE (VAL) DUR AIRFIELD HRS. PPR ALWAYS RQR. LTD TRAN MAINT AVBL O/R.
A110-45CAUTION: ACTV ROADWAY XNG 5500 FT FROM RWY 04 THLD, 2267 FT FROM RWY 22 THLD. CLSD TWR FIXED WING OPS NOT AUTHD. CLSD TWR ROTARY WING OPS RQR AIRFIELD MGR APVL. DSN 457-5551, C808-257-5551.
A17-M1OPR MON-THU 1730-1000Z; FRI 1730-0600Z; CLSD SAT, SUN AND EXTDD HOL PDS. CTC MCAS AIRFIELD OPS FOR EXACT DATES AND TIMES. OTH OPR HRS BY STRICT PPR APVL. OT CTC HONOLULU CTL FAC.
A81-APTRWY LGTS AVBL DUR OPR HR.
E60-04_E281680 FT FROM RY 04.
E60-22_E281612 FT FROM RY 22
E68-04HORIZONTAL DATUM WGS84.
E68-22HORIZONTAL DATUM WGS84.
KANEOHE BAY MCAS (MARION E CARL FLD) (ICAO: PHNG, IATA: NGF) is a private airport located in KANEOHE, HI, US.
