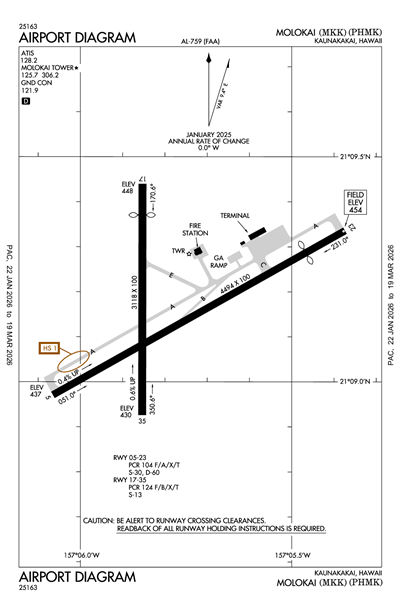

MOLOKAI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PHMK
ICAO PHMKIATA MKKLocal MKK
MOLOKAI
PublicPUB

6 miles NW of KAUNAKAKAI, HI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
21° 09' 10"N 157° 05' 47"W
Elevation
454' MSL
Pattern Alt
1454' MSL
Mag Variation
10°E
Declination
11°E
Fuel
None Listed
FSS
HONOLULU (HNL)
Sectional
HAWAIIAN ISLANDS
ARTCC
HONOLULU CONTROL FACILITY (ZHN)
Data Effective
2/19/26-3/19/26
PHMK VFR
10:54 PM HST
Clear
10sm
71°F
66°F
30.06"Hg
050° 17kts
Gusts 24kts
AO2 SLP182 T02170189 50002 TSNO
METAR PHMK 040854Z AUTO 05017G24KT 10SM CLR 22/19 A3006 RMK AO2 SLP182 T02170189 50002 TSNO
+ Add Your Business

PHMK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 128.2
ASOS (808) 865-6936

Common

CTAF 125.7
WHEN ATCT CLSD ACTVT MIRL RY 05/23 AND RY 17/35, REIL RY 05 - CTAF.

Ground

MOLOKAI GROUND 121.9
0600-1830

Tower

MOLOKAI TOWER 125.7
0600-1830

Center

HCF CENTER CENTER 124.1
LOW/HIGH, PRIMARY FOR AREA NE AND E OF HNL VORTAC OUT TO APPROXLY 90NM.; APCH/DEP SVC PRVDD BY HONOLULU CONTROL FACILITY (ZHN) ON FREQS 124.1/317.5 (MOUNT HALEAKALA RCAG).

Flight Service

Flight Service 122.1
(HNL)

Emergency

Emergency 121.5

Terminal Area Forecast

PHMK
Tue, 3/3 7:20 PM HST
Tue, 3/3 8:00 PM HST - Wed, 3/4 8:00 PM HST
VFR
8:00 PM HST - 10:00 AM HST
Few 3,500'
6sm
050° 10kts
Gusts 18kts
VFR
10:00 AM HST - 7:00 PM HST
Scattered 4,000'
Few 3,000'
6sm
060° 15kts
Gusts 25kts
VFR
7:00 PM HST - 8:00 PM HST
Few 3,500'
6sm
050° 10kts
Gusts 18kts
TAF PHMK 040520Z 0406/0506 05010G18KT P6SM FEW035
   FM042000 06015G25KT P6SM FEW030 SCT040
   FM050500 05010G18KT P6SM FEW035
PHMK
EffectiveExpiresCategoryNOTAM
Domestic
2/27/26
2212Z
3/27/26
2300Z
!MKK 02/024 MKK AD AP WINDCONE FOR RWY 35 LGT U/S 2602272212-2603272300
2/27/26
2207Z
3/27/26
2300Z
Runway!MKK 02/023 MKK RWY 17/35 SAFETY AREA WIP HUMPS AND RUTS 2602272207-2603272300
2/27/26
2205Z
3/27/26
2300Z
!MKK 02/029 MKK OBST POLE (ASN UNKNOWN) 210922N1570743W (1.6NM W MKK) UNKNOWN (500FT AGL) NOT LGTD 2602272205-2603272300
2/27/26
2204Z
3/27/26
2300Z
Runway!MKK 02/028 MKK RWY 17/35 REDL U/S 2602272204-2603272300
2/27/26
2202Z
3/27/26
2300Z
Runway!MKK 02/027 MKK RWY 17/35 CLSD EXC TAX 2602272202-2603272300
2/27/26
2202Z
3/27/26
2300Z
!MKK 02/026 MKK TWY E HLDG PSN SIGN FOR RWY 17/35 NOT LGTD 2602272202-2603272300
2/27/26
2201Z
3/27/26
2300Z
Runway!MKK 02/025 MKK RWY 23 THR MARKING NOT STD 2602272201-2603272300
2/27/26
2158Z
3/27/26
2300Z
!MKK 02/022 MKK AD AP ALL SFC WIP CONST N SIDE 2602272158-2603272300
2/27/26
2156Z
3/27/26
2300Z
!MKK 02/021 MKK AD AP WINDCONE SEGMENTED CIRCLE LGT U/S 2602272156-2603272300
2/27/26
2153Z
3/27/26
2300Z
Runway!MKK 02/020 MKK RWY 05/23 SAFETY AREA WIP HUMPS AND RUTS 2602272153-2603272300
2/27/26
2151Z
4/30/26
2300Z
!MKK 02/019 MKK AD AP WDI FOR RWY 17 U/S 2602272151-2604302300
2/27/26
2149Z
3/27/26
2300Z
!MKK 02/018 MKK AD AP WDI FOR RWY 23 LGT U/S 2602272149-2603272300
2/21/26
0024Z
!MKK 02/016 MKK COM VOR VOICE U/S 2602210024-2603072359EST
Yes
0500-2015
HAWAII STATE AIRPORTS DIV
HONOLULU INTL ARPT
HONOLULU, HI 96819
Phone: 808-838-8600
MARVIN MONIZ
KAHULUI ARPT
KAHULUI, HI 96732
Phone: 808-281-9898
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
MKK
--
WHEN ATCT CLSD ACTVT MIRL RY 05/23 AND RY 17/35, REIL RY 05 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Air Freight
Cargo Handling

Runway 05/23

4494 ft. x 100 ft.
ASPH
Good
GRVD
MED

30,000lbs
60,000lbs
--
--
  Runway 05 Runway 23
True Heading 60°240°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 21° 08' 59"N 21° 09' 21"N
Longitude 157° 06' 04"W 157° 05' 23"W
Elevation 437' 454'
Threshold Crossing Height 49 ft. AGL --
Visual Glide Path Angle 4° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 17/35

3118 ft. x 100 ft.
ASPH
Fair
NONE
MED

13,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 21° 09' 27"N 21° 08' 56"N
Longitude 157° 05' 51"W 157° 05' 51"W
Elevation 448' 430'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-124 HRS PPR FOR DIVISION 1.1,1.2,1.3 EXPLOSIVES AND 4 HRS PPR FOR OTHER HAZARDOUS MATERIAL IN/OUT OF ARPT CTC 808-567-6140/6008.
A110-2MTN APPROXIMATELY 1280' MSL LCTD 2.8 NM FROM RWY 05 THR ON CNTRLN EXTDD.
A110-3BE ALERT TO EGRETS AND PIGEONS ON & INVOF ARPT.
A110-4LARGE ACFT WITH WINGSPAN GREATER THAN 78 FT MAY NOT USE TWY A OR RY 05/23 FOR SIMULTANEOUS OPNS.
A110-5(E94) LAWRS AVBL FROM TWR PERSONNEL 0600-1900 LCL.
A110-6STANDING WATER/PONDING ON RY 17/35 NEAR TWY ECHO DURING INCLEMENT WEATHER.
A110-7FOR CD WHEN ATCT IS CLSD CTC HONOLULU CONTROL FACILITY AT 808-840-6262.
A110-MANAGERARPT OPNS/MAINT/AOM/MR. ANTONE KALILIKANE (808) 567-9660.
A26ARPT CLOSED TO AIR CARRIER OPS WITH 10 OR MORE PASSENGER SEATS 1930-0600 EXCEPT PPR, CALL 808-567-9660/9663.
A39-05/23PCR VALUE: 104/F/A/X/T
A39-17/35PCR VALUE: 124/F/B/X/T
A43-05PAPI NOT AUTHORIZED 1.8 NM BYD LDG THLD DUE TO RAPIDLY RISING TERRAIN.
A52-23BRUSH 1900' FROM DSPLCD THR.
A57-17APCH RATIO 23:1 FROM DSPLCD THLD.
A57-23APCH RATIO FROM DSPLCD THLD 23:1.
A81-APTWHEN ATCT CLSD ACTVT MIRL RY 05/23 AND RY 17/35, REIL RY 05 - CTAF.
E147<TPA SMALL ACFT 1250' MSL. LARGE ACFT 1950' MSL.
MOLOKAI (ICAO: PHMK, IATA: MKK) is a public airport located in KAUNAKAKAI, HI, US.
