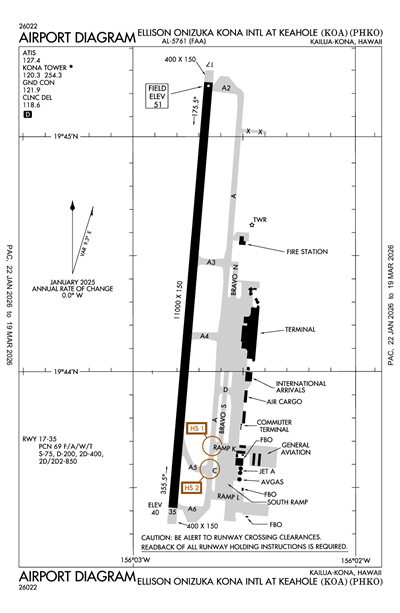

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

PHKO
ELLISON ONIZUKA KONA INTL AT KEAHOLE
PublicPUB

6 miles NW of KAILUA-KONA, HI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
19° 44' 39"N 156° 02' 43"W
49' MSL
1049' MSL
11E
JET A, 100
HONOLULU (HNL)
HAWAIIAN ISLANDS
HONOLULU CONTROL FACILITY (ZHN)
4/17/25-5/15/25
PHKO VFR
7:53 PM HST
Clear
10sm
80°F
71°F
30.05"Hg
160° 10kts
AO2 SLP175 T02670217 10300 20267 53021
METAR PHKO 040553Z 16010KT 10SM CLR 27/22 A3005 RMK AO2 SLP175 T02670217 10300 20267 53021
+ Add Your Business

PHKO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 120.3

ATIS

ATIS
 127.4

Clearance Delivery

CD/P
 118.6

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 120.3

Terminal Area Forecast

PHKO
Mon, 11/3 7:20 PM HST
Mon, 11/3 8:00 PM HST - Wed, 11/5 2:00 AM HST
VFR
8:00 PM HST - 11:00 AM HST
Scattered 20,000'
Scattered 3,000'
6sm
060° 9kts
VFR
11:00 AM HST - 7:00 PM HST
Broken 6,000'
6sm
240° 11kts
VFR
7:00 PM HST - 2:00 AM HST
Scattered 5,000'
Few 3,000'
6sm
120° 6kts
TAF PHKO 040520Z 0406/0512 06009KT P6SM SCT030 SCT200
   FM042100 24011KT P6SM BKN060
   FM050500 12006KT P6SM FEW030 SCT050
PHKO
EffectiveExpiresCategoryNOTAM
Domestic
11/3/25
0800Z
11/8/25
1600Z
Runway!KOA 10/138 KOA RWY 17/35 CLSD EXC 1HR PPR 936-232-9662 DLY 0800-1600 2511030800-2511081600
11/3/25
0800Z
11/8/25
1600Z
!KOA 10/137 KOA TWY A CLSD TO ACFT WINGSPAN MORE THAN 118FT DLY 0800-1600 2511030800-2511081600
11/3/25
0800Z
11/8/25
1600Z
!KOA 10/136 KOA TWY A6 CLSD DLY 0800-1600 2511030800-2511081600
11/3/25
0800Z
11/8/25
1600Z
!KOA 10/135 KOA TWY A5 CLSD DLY 0800-1600 2511030800-2511081600
10/31/25
0800Z
10/31/25
1600Z
Runway!KOA 10/142 KOA RWY 35 PAPI U/S 2510310800-2510311600
10/30/25
1300Z
10/30/25
1600Z
!KOA 10/144 KOA COM REMOTE COM OUTLET 122.3 U/S 2510301300-2510301600
10/30/25
0800Z
10/30/25
1600Z
Runway!KOA 10/140 KOA RWY 35 PAPI U/S 2510300800-2510301600
10/29/25
0800Z
10/29/25
1600Z
Runway!KOA 10/139 KOA RWY 35 PAPI U/S 2510290800-2510291600
10/28/25
2301Z
Runway!KOA 10/146 KOA RWY 17 ALS U/S 2510282301-2511271600EST
10/28/25
2250Z
!KOA 10/145 KOA NAV ILS RWY 17 U/S 2510282250-2511271600EST
10/28/25
1732Z
Runway!KOA 10/141 KOA RWY 35 PAPI U/S EXC LOW INTST CONS 2510281732-2510290759EST
10/27/25
0800Z
10/31/25
1600Z
Runway!KOA 10/123 KOA RWY 17/35 CLSD EXC 1HR PPR 936-232-9662 DLY 0800-1600 2510270800-2510311600
10/27/25
0800Z
10/31/25
1600Z
!KOA 10/122 KOA TWY A CLSD TO ACFT WINGSPAN MORE THAN 118FT DLY 0800-1600 2510270800-2510311600
10/27/25
0800Z
10/31/25
1600Z
!KOA 10/121 KOA TWY A6 CLSD DLY 0800-1600 2510270800-2510311600
10/27/25
0800Z
10/31/25
1600Z
!KOA 10/120 KOA TWY A5 CLSD DLY 0800-1600 2510270800-2510311600
10/15/25
0535Z
10/30/25
0435Z
!KOA 10/070 KOA OBST TOWER LGT (ASR 1063428) 193102.20N1555454.00W (16.5NM SSE KOA) 2082.7FT (322.8FT AGL) U/S 2510150535-2510300435
10/3/25
1553Z
11/16/25
1600Z
!KOA 10/013 KOA TWY H CLSD 2510031553-2511161600
10/2/25
1600Z
Runway!KOA 09/051 KOA RWY 17/35 N 4000FT OPN 2510021600-PERM
10/2/25
1600Z
11/27/25
1600Z
Runway!KOA 09/043 KOA RWY 17/35 CL MARKING NOT STD N 4000FT 2510021600-2511271600
10/2/25
1600Z
4/20/26
0959Z
Runway!KOA 09/038 KOA RWY 17/35 NOT GROOVED 2510021600-2604200959
10/2/25
1600Z
11/27/25
1600Z
Runway!KOA 09/036 KOA RWY 17 THR DISPLACED 4000FT. DECLARED DIST: RWY 17 TORA 11000FT TODA 11000FT ASDA 11000FT LDA 7000FT. RWY 35 TORA 11000FT TODA 11000FT ASDA 11000FT LDA 11000FT. 2510021600-2511271600
9/29/25
2241Z
11/27/25
1600Z
Runway!KOA 09/049 KOA RWY 17/35 REDL NOT STD 2509292241-2511271600
9/19/25
2144Z
4/20/26
0959Z
!KOA 09/023 KOA TWY C NOW TWY A5 SFC PAINTED HLDG PSN SIGNS NOT STD 2509192144-2604200959
6/12/25
1600Z
4/20/26
0959Z
!KOA 06/024 KOA TWY A RUNUP PAD FOR RWY 35 SFC PAINTED HLDG PSN SIGNS NOT STD 2506121600-2604200959
1/31/25
0334Z
1/1/26
0230Z
Runway!KOA 01/151 KOA RWY 17/35 BTN TWY H AND TWY G NOT STD 2501310334-2601010230
FDC
10/30/25
1300Z
11/6/25
2132Z
!FDC 5/7879 KOA IAP ELLISON ONIZUKA KONA INTL AT KEAHOLE, KAILUA-KONA, HI.
ILS OR LOC RWY 17, AMDT 2D...
VOR OR TACAN RWY 17, AMDT 2...
VOR OR TACAN RWY 35, AMDT 2...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
KOA VORTAC UNMONITORED. 2510301300-2511062132EST
6/12/25
1432Z
!FDC 5/3326 KOA IAP ELLISON ONIZUKA KONA INTL AT KEAHOLE, KAILUA-KONA, HI.
VOR OR TACAN RWY 35, AMDT 2...
ARC FROM ANDES TO CIGAK NOPT.
2506121432-2706121432EST
6/12/25
1113Z
!FDC 5/3022 KOA IAP ELLISON ONIZUKA KONA INTL AT KEAHOLE, KAILUA-KONA, HI.
VOR OR TACAN RWY 17, AMDT 2...
S-17 VIS CATS A/B 1, CATS C/D/E 1 5/8.
DISREGARD NOTE: FOR INOPERATIVE ALS, INCREASE S-17 CAT E VISIBILITY TO 1 5/8 MILE.
2506121113-2511271113EST
6/12/25
1113Z
!FDC 5/3021 KOA IAP ELLISON ONIZUKA KONA INTL AT KEAHOLE, KAILUA-KONA, HI.
RNAV (GPS) Y RWY 17, AMDT 3...
LNAV VIS CATS A/B 1, CATS C/D 1 3/4.
2506121113-2511271113EST
6/12/25
1113Z
!FDC 5/3018 KOA IAP ELLISON ONIZUKA KONA INTL AT KEAHOLE, KAILUA-KONA, HI.
ILS OR LOC RWY 17, AMDT 2D...
RNAV (RNP) Z RWY 17, ORIG-B...
PROCEDURE NA.
2506121113-2511271113EST
Yes
0600-2200
HAWAII ST ARPTS DIV
HONOLULU INTL ARPT, 300 RODGERS BOULEVARD, STE. 700
HONOLULU, HI 96819
Phone: 808-838-8600
CHAUNCEY WONG YUEN
73-200 KUPIPI ST, KONA INTL AIRPORT AT KEAHOLE
KAILUA-KONA, HI 96740-2645
Phone: 808-327-9520
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
KOA
--
ACTVT MALSR RWY 17; HIRL RWY 17/35 & TWY LGTS - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
None
Minor
None
None
Air Freight
Cargo Handling
Pilot Instruction
Aircraft Rental

Runway 17/35

7000 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
69 /F/A/W/T
75,000lbs
200,000lbs
400,000lbs
850,000lbs
  Runway 17 Runway 35
True Heading 185°5°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 19° 45' 14"N 19° 44' 05"N
Longitude 156° 02' 39"W 156° 02' 46"W
Elevation 49' 39'
Threshold Crossing Height 77 ft. AGL 60 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No Yes
A110-16MIGRATORY BIRD ACTIVITY WITHIN A 5 NM RADIUS OF ARPT.
A110-17ALL WIDE-BODY AIRCRAFT CONTACT ATCT PRIOR TO ENGINE START.
A110-19DIVISION 1.1, 1.2, 1.3 EXPLOSIVES PROHIBITED. PPR FM ARPT MGR FOR TRANSPORTATION OF DIVISION 1.4 EXPLOSIVES AND HAZARDOUS MATERIAL IN AND OUT OF AIRPORT.
A110-20JET ACFT ON CARGO AND SOUTH RAMP CTC ATCT PRIOR TO ENGINE START.
A110-21U.S. CUSTOMS LCTD ON SOUTH RAMP.
A110-22PUSH BACK/PULL OUT REQUIRED FROM TERMINAL PARKING POSITIONS FOR ALL ACFT, NO POWER OUT.
A110-24HELICOPTER OPERATIONS ON AND INVOF TWY ALPHA.
A110-25FOR CD WHEN ATCT IS CLSD CTC HONOLULU CONTROL FACILITY AT 808-840-6262.
A110-26AP ARFF MNT CTAF 120.3 WHEN ATC CLSD.
A110-3TPA SMALL ACFT 800' MSL; LARGE ACFT 1500' MSL.
A110-4REQ FOUR ENG ACFT TAXI WITH OUTBOARD ENGS AT IDLE DUE NARROW TWYS.
A110-5ALL HELICOPTERS CONFINE OPNS TO PAVED AREAS.
A110-6PPR FM AMGR FOR TRANSIENT PARKING CALL 808-327-9520.
ELLISON ONIZUKA KONA INTL AT KEAHOLE (ICAO: PHKO, IATA: KOA) is a public airport located in KAILUA-KONA, HI.
