PHDH
ICAO PHDHIATA HDHLocal HDH
KAWAIHAPAI AIRFIELD
PublicPUB

2 miles W of MOKULEIA, HI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
21° 34' 46"N 158° 11' 50"W
Elevation
14' MSL
Pattern Alt
800' MSL
Mag Variation
9°E
Declination
11°E
Fuel
JET A, 100
FSS
HONOLULU (HNL)
Sectional
HAWAIIAN ISLANDS
ARTCC
HONOLULU CONTROL FACILITY (ZHN)
Data Effective
2/19/26-3/19/26
PHHI (11nm) MVFR
1:55 AM HST
Overcast 2,300'
Broken 1,500'
Few 800'
10sm
70°F
65°F
30.05"Hg
Calm
AO2 DZB06E15DZB42E51 SLP166 P0000 60000 70008 T02110185 10229 20210 57016 $
METAR PHHI 041155Z AUTO 00000KT 10SM FEW008 BKN015 OVC023 21/19 A3005 RMK AO2 DZB06E15DZB42E51 SLP166 P0000 60000 70008 T02110185 10229 20210 57016 $
+ Add Your Business

PHDH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.0
UNICOM 123.0
UNICOM OPER 0900-1700.

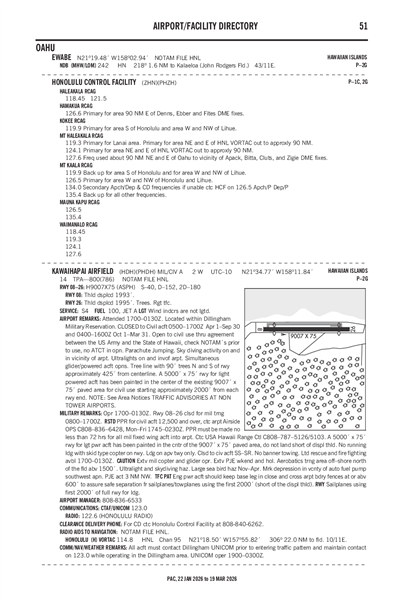

FAA A/FD Pages

Terminal Area Forecast

PHHI (11nm)
Tue, 3/3 10:00 PM HST
Tue, 3/3 10:00 PM HST - Thu, 3/5 4:00 AM HST
MVFR
10:00 PM HST - 9:00 AM HST
Broken 3,000'
Scattered 2,500'
6sm
30.09"Hg
VRB° 6kts
MVFR
Temporary 11:00 PM HST - 6:00 AM HST
Light Showers and Rain
Broken 2,000'
Scattered 1,500'
4.97sm
090° 10kts
Gusts 15kts
MVFR
Temporary 6:00 AM HST - 9:00 AM HST
Light Drizzle
Broken 2,500'
Scattered 2,000'
5.59sm
VRB° 6kts
VFR
Becoming 9:00 AM HST - 5:00 PM HST
Scattered 3,000'
Few 2,000'
6sm
30.06"Hg
VRB° 6kts
VFR
Temporary 1:00 PM HST - 5:00 PM HST
No Clouds
N/A
090° 12kts
Gusts 19kts
MVFR
Becoming 5:00 PM HST - 4:00 AM HST
Broken 3,000'
Scattered 2,500'
6sm
30.09"Hg
VRB° 6kts
TAF PHHI 040800Z 0408/0514 VRB06KT 9999 SCT025 BKN030 QNH3009INS
   TEMPO 0409/0416 09010G15KT 8000 -SHRA SCT015 BKN020
   TEMPO 0416/0419 VRB06KT 9000 -DZ SCT020 BKN025
   BECMG 0419/0420 VRB06KT 9999 FEW020 SCT030 QNH3005INS
   TEMPO 0423/0503 09012G19KT
   BECMG 0503/0504 VRB06KT 9999 SCT025 BKN030 QNH3010INS TX24/0422Z TN20/0513Z
PHDH
EffectiveExpiresCategoryNOTAM
Domestic
3/2/26
1800Z
3/7/26
0300Z
!HNL 02/302 HDH AIRSPACE SEE HNL 02/300 UAS DLY 1800-0300 2603021800-2603070300
2/16/26
0010Z
5/16/26
0500Z
!HNL 02/195 HDH OBST TOWER LGT (ASR 1005074) 213952.50N1580001.30W (11.1NM ENE HDH) 1256.9FT (214.9FT AGL) U/S 2602160010-2605160500
No
0700-1530
US ARMY
USARPAC
HONOLULU, HAWAII, HI 96819
Phone: 808-656-1027
MALCOM SMITH
300 RODGERS BLVD NR 12
HONOLULU, HI 96819
Phone: 808-836-6533
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
HNL
--
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Glider Service
Pilot Instruction
Parachute Jump Activity

Runway 08/26

9007 ft. x 75 ft.
ASPH
Fair
NONE


40,000lbs
152,000lbs
180,000lbs
--
  Runway 08 Runway 26
True Heading 91°271°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 21° 34' 47"N 21° 34' 46"N
Longitude 158° 12' 38"W 158° 11' 03"W
Elevation 14' 10'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1SIMULTANEOUS GLIDER/POWERED ACFT OPNS.
A110-11ULTRALIGHTS ON & INVOF ARPT.
A110-12TREE LINE WITH 90 FT TREES NORTH & SOUTH OF RY APRXLY 425 FT FROM CNTRLN.
A110-13MARKED DEPRESSION INVOF THE AUTOMATED FUEL PUMP ON SOUTHWESTERN APRON.
A110-15PPR FOR CIVIL ACFT 12500 LBS AND OVER, CTC ARPT AIRSIDE OPS MGR AT (808) 836-6428 MON-FRI, 0745-1630.
A110-16RSTD: PPR MUST BE MADE NO LESS THAN 72 HRS FOR ALL MIL FIXED WING ACFT INTO ARPT. CTC USA HAWAII RANGE CTL C808-787-5126/5103.
A110-18FOR CD CTC HONOLULU CONTROL FACILITY AT 808-840-6262.
A110-2EXTNSV MIL HELICOPTER & GLIDER OPNS DAILY. AEROBATIC TRAINING OFFSHORE N OF AIRFIELD ABV 1500'.
A110-3CLSD TO CIVIL ACFT 1900-0700 APR 1-SEP 30 AND 1800-0600 OCT 1-MAR 31.
A110-5SKY DIVING ACTIVITY ON AND INVOF ARPT.
A110-6CTN: LARGE SEA BIRDS ON AND INVOF ARPT NOVEMBER THROUGH APRIL.
A110-7NO RUNNING LNDGS WITH SKID TYPE HELICOPTER ON RWY - APVD TWYS ONLY.
A110-8A 5000 X 75 FT RWY FOR LGT POWERED ACFT HAS BEEN PAINTED IN THE CENTER OF EXISTING 9007 X 75 FT PAVED AREA FOR CIVIL USE STARTING APPROX 2000 FT FM EACH RWY END.
A110-9POWERED ACFT SHALL KEEP BASE LEG IN CLOSE AND CROSS THE ARPT BOUNDARY FENCES AT OR ABOVE 600 FT MSL IN ORDER TO ASSURE SAFE SEPARATION FROM SAILPLANES/TOWPLANES USING THE FIRST 2000 FT (SHORT OF THE DSPLCE THLD).
A12US ARMY SUPPORT COMMAND HI, FORT SHAFTER HI 96858.
A14CUSTODIAN ATTENDANT AT ARPT M-F 0630-1430.
A16PHONE AT ARPT 637-8270. FAX 637-8291. UNICOM OPERATOR 637-8271.
A18OPEN TO CIVIL USE THRU AGRMT BTN US ARMY & ST OF HAWAII-CHECK NOTAMS PRIOR TO USE-NO ATCT IN OPN.
A2LCTD WITHIN DILLINGHAM MILITARY RESERVATION.
A30-08/26RWY 08/26 CLSD FOR MILITARY TRAINING 0800-1700Z.
A57-0850:1 TO DSPLCD THR.
A57-26APCH RATIO 50:1 TO DSPLCD THLD.
A82UNICOM OPER 0900-1700.
A83WIND INDCRS ARE NOT LGTD.
KAWAIHAPAI AIRFIELD (ICAO: PHDH, IATA: HDH) is a public airport located in MOKULEIA, HI, US.
