PGWT
FRANCISCO MANGLONA BORJA/TINIAN INTL
PublicPUB

1 miles N of TINIAN ISLAND, MP
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
14° 59' 57"N 145° 37' 10"E
270' MSL
1270' MSL
01E
None Listed
HONOLULU (HNL)
GNC 7
GUAM (ZUA)
4/17/25-5/15/25
PGWT VFR
8:55 AM +10
Scattered 14,000'
Few 10,000'
Few 1,800'
7sm
84°F
77°F
29.80"Hg
080° 8kts
METAR PGWT 042255Z 08008KT 7SM FEW018 FEW100 SCT140 29/25 A2980
+ Add Your Business

PGWT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 123.6

No communication frequencies available for this airport.

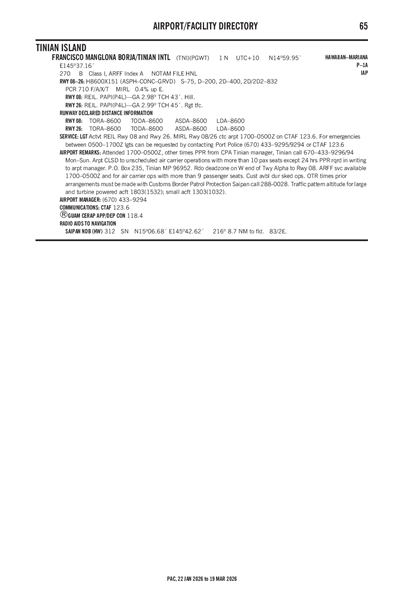

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PGWT
Wed, 11/5 6:19 AM +10
Wed, 11/5 6:00 AM +10 - Thu, 11/6 4:00 AM +10
VFR
9:00 AM +10 - 4:00 AM +10
Showers in vicinity
Broken 7,000'
Scattered 3,500'
Scattered 1,500'
6sm
100° 14kts
Gusts 24kts
VFR
6:00 AM +10 - 9:00 AM +10
Showers in vicinity
Broken 8,000'
Scattered 3,500'
Scattered 1,800'
6sm
080° 12kts
TAF PGWT 042019Z 0420/0518 08012KT P6SM VCSH SCT018 SCT035 BKN080
   FM042300 10014G24KT P6SM VCSH SCT015 SCT035 BKN070
PGWT
EffectiveExpiresCategoryNOTAM
FDC
9/9/25
1942Z
!FDC 5/0523 TNI IAP FRANCISCO MANGLONA BORJA/TINIAN INTL, TINIAN ISLAND, MP.
RNAV (GPS) RWY 8, AMDT 1A...
NOTE: RWY 8 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED.
2509091942-2709091942EST
No
0600-2000
ATTENDED 0600-2000, OTHER TIMES PPR FROM CPA TINIAN MANAGER, TINIAN CALL (670) 433-9296/94 MON-SUN.
COMMONWEALTH PORTS AUTHORITY
PO BOX 235
TINIAN, MP 96952-1055
Phone: (670) 237-6520
ANTONIO RAMON. BORJA
PO BOX 235
TINIAN, MP 96952-1055
Phone: (670) 433-9294
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
HNL
--
FOR REIL RWYS 08 & 26, PAPI RWYS 08 & 26, MIRL RWY 08/26 CTC ARPT 0600-2000 ON CTAF 123.6. FOR EMERGS BTN 2000-0600 LGTS CAN BE REQSTD BY CTCG PORT POLICE (670) 433- 9295/9294 OR CTAF 123.6.
N/A
Yes
Yes
No
None
No
None
None
None
None
Cargo Handling
Charter Service

Runway 08/26

8600 ft. x 151 ft.
ASPH CONC
Good
GRVD
MED
61 /F/A/X/T
75,000lbs
200,000lbs
400,000lbs
832,000lbs
  Runway 08 Runway 26
True Heading 79°259°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 14° 59' 49"N 15° 00' 05"N
Longitude 145° 36' 27"E 145° 37' 53"E
Elevation 236' 270'
Threshold Crossing Height 43 ft. AGL 45 ft. AGL
Visual Glide Path Angle 2.98° 2.99°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-4CUST AVBL DRG SKEDD OPNS. OTR TIMES PRIOR ARNGMTS MUST BE MADE WITH CUSTOMS BORDER PATROL PROTECTION SAIPAN CALL 288-0028.
A110-6AP CLSD TO UNSKED ACR OPNS WITH MORE THAN 10 PAX SEATS EXCP 24 HRS PPR RQRD IN WRITING TO AMGR. P.O. BOX 235, TINIAN MP 96952.
A110-7RDO DEADZONE ON W END OF TWY ALPHA TO RWY 08.
FRANCISCO MANGLONA BORJA/TINIAN INTL (ICAO: PGWT, IATA: TNI) is a public airport located in TINIAN ISLAND, MP.
