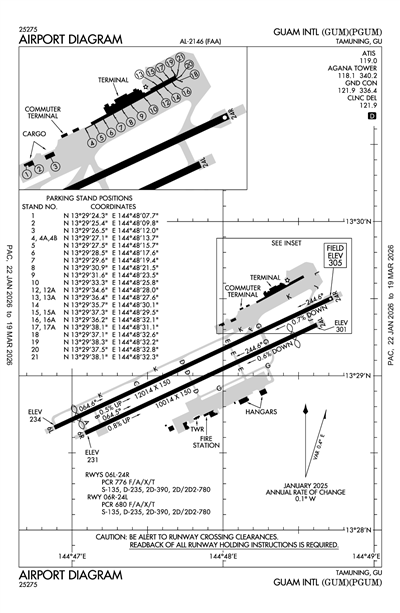

GUAM INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PGUM
ICAO PGUMIATA GUMLocal GUM
GUAM INTL
PublicPUB

3 miles NE of TAMUNING, GU, Guam
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
13° 29' 02"N 144° 47' 50"E
Elevation
305' MSL
Pattern Alt
1307' MSL
Mag Variation
0°
Declination
2°E
Fuel
JET A-1, 100LL
FSS
HONOLULU (HNL)
Sectional
GNC 7
ARTCC
GUAM (ZUA)
Data Effective
2/19/26-3/19/26
PGUM VFR
2:54 PM +10
Scattered 3,600'
Scattered 2,900'
10sm
84°F
74°F
29.72"Hg
350° 10kts
AO2 SLP055 T02890233
METAR PGUM 040454Z 35010KT 10SM SCT029 SCT036 29/23 A2972 RMK AO2 SLP055 T02890233
+ Add Your Business

PGUM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.0
ASOS (671) 472-7399

Clearance

Clearance Delivery 121.9

Ground

AGANA GROUND 121.9
Ramp Control 121.6

Tower

AGANA TOWER 118.1

Center

GUAM CERAP CENTER 119.8
LOW, APCH/DEP SVC PRVDD BY GUAM CERAP ON FREQS 119.8/269.0 (MOUNT SANTA ROSA RCAG).

Emergency

Emergency 121.5

Terminal Area Forecast

PGUM
Wed, 3/4 9:32 AM +10
Wed, 3/4 10:00 AM +10 - Thu, 3/5 4:00 PM +10
VFR
10:00 AM +10 - 4:00 PM +10
Showers in vicinity
Scattered 4,500'
Few 1,500'
6sm
VRB° 6kts
TAF PGUM 032332Z 0400/0506 VRB06KT P6SM VCSH FEW015 SCT045
PGUM
EffectiveExpiresCategoryNOTAM
Domestic
2/26/26
2200Z
2/27/26
0300Z
Runway!GUM 02/069 GUM RWY 24R PAPI U/S 2602262200-2602270300
2/26/26
2200Z
2/27/26
0300Z
Runway!GUM 02/068 GUM RWY 06L PAPI U/S 2602262200-2602270300
2/26/26
2200Z
2/27/26
0300Z
Runway!GUM 02/067 GUM RWY 06L ALS U/S 2602262200-2602270300
2/26/26
2200Z
2/27/26
0300Z
!GUM 02/066 GUM NAV ILS RWY 06L U/S 2602262200-2602270300
2/25/26
2200Z
2/26/26
0300Z
Runway!GUM 02/065 GUM RWY 24R PAPI U/S 2602252200-2602260300
2/25/26
2200Z
2/26/26
0300Z
Runway!GUM 02/064 GUM RWY 06L PAPI U/S 2602252200-2602260300
2/25/26
2200Z
2/26/26
0300Z
Runway!GUM 02/063 GUM RWY 06L ALS U/S 2602252200-2602260300
2/25/26
2200Z
2/26/26
0300Z
!GUM 02/062 GUM NAV ILS RWY 06L U/S 2602252200-2602260300
FDC
2/25/26
2200Z
!FDC 6/9016 GUM IAP GUAM INTL, TAMUNING, GU.
NDB RWY 24R, AMDT 1B ...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, UNZ VORTAC OUT OF SERVICE. 2602252200-2603040126EST
2/25/26
2200Z
!FDC 6/9015 GUM IAP GUAM INTL, TAMUNING, GU.
ILS OR LOC RWY 6R, ORIG-E ...
CLIMB ON I-AWD NE COURSE TO 2100 THEN CLIMBING RIGHT TURN TO 3000 DIRECT AJA NDB AND ON I-AWD SW COURSE TO MEMKE/I-AWD 14.12 DME/RADAR AND HOLD. ADF REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, UNZ VORTAC OUT OF SERVICE. 2602252200-2603040126EST
2/25/26
2200Z
!FDC 6/9014 GUM IAP GUAM INTL, TAMUNING, GU.
ILS OR LOC RWY 6L, AMDT 4C ...
MISSED APPROACH: CLIMB TO 2100 THEN CLIMBING RIGHT TURN TO 3000 DIRECT AJA NDB THEN ON I-GUM LOCALIZER SW COURSE TO OBALE/I-GUM 14.29 DME/RADAR AND HOLD. ADF REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, UNZ VORTAC OUT OF SERVICE. 2602252200-2603040126EST
1/24/26
2240Z
9/21/26
2359Z
!FDC 6/6603 GUM SPECIAL GUAM INTL, GUAM, GU. RNAV (RNP) P RWY 24R,
AMDT 1, RNP 0.11...DA 671FT/HAT 366FT ALL CATS MISSED APPROACH...473
FT TREE 132941.69N1444923.42W (GU-021973)
2601242240-2609212359
Yes
ALL
A.B. WON PAT GUAM INT'L ARPT AUTHOR
P.O. BOX 8770
TAMUNING, GU 96931
Phone: 671-646-0300
JOHN QUINATA
P.O. BOX 8770
TAMUNING, GU 96931
Phone: 671-646-0300
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
GUM
--
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
High Pressure
High & Low Pressure
Air Freight
Cargo Handling
Charter Service
Pilot Instruction

Runway 06L/24R

12014 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH

135,000lbs
235,000lbs
390,000lbs
780,000lbs
  Runway 06L Runway 24R
True Heading 65°245°
Traffic Pattern Right
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 13° 28' 40"N 13° 29' 30"N
Longitude 144° 46' 53"E 144° 48' 43"E
Elevation 234' 305'
Threshold Crossing Height 73 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No No

Runway 06R/24L

10014 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH

135,000lbs
235,000lbs
390,000lbs
780,000lbs
  Runway 06R Runway 24L
True Heading 65°245°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 13° 28' 38"N 13° 29' 20"N
Longitude 144° 47' 05"E 144° 48' 37"E
Elevation 231' 301'
Threshold Crossing Height 76 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights No
Runway End Identifier Lights No
A110-1<1000' OVRN S END & 450' OVRN N END RWY 6L-24R.
A110-10DEP VFR ACFT MAINT RY HDG TIL PAST DEP END OF RY AND REACHING 1000 FT AGL; RGT PAT 24L/R DO NOT EXCEED 1500 FT AGL IN TFC PAT.
A110-11CLASS III ACFT ARE PROHIBITED FROM MAKING ANY TURNS ONTO OR OFF TWY GOLF (SOUTH) WHILE UTILIZING TWY ECHO.
A110-12THE FIRST 500 FT OF THE LEFT SHOULDER OF RWY 24L IS NOT VISIBLE FROM THE TWR. PILOTS ARE ADVISED TO CAUTION FOR ANY PRESENCE OF WILDLIFE IN THAT AREA.
A110-13FOR TAXG B747-8 ACFT ON TWY K FRONTING THE ACFT PRKG APN FROM GATES 5 - 16 AT THE MAIN TRML, MAX TAXG SPEED SHALL BE NO MORE THAN 15 MPH.
A110-14FOR THE B747-8, DRG RWY 24L & 24R OPS AND DUE TO JET BLAST EFCTS AT GATES 14, 16 & 18, THE B747-8 WILL BE TOWED FROM GATE 4 ON TWY K TO TWY J WITH THE ACFT PSND ON TWY J FACING TWD RWY 24R.
A110-15DRG TAXG OF THE B747-8 BTN GATES 5 - 16, ALL VEHICLES SHALL YIELD AND RMN CLEAR OF THE VEHICLE TFC PAT AND ARE RSTRD TO A MAX HGT OF 14 FT.
A110-16FOR ALL ARRS, THE B747-8 AIRLINE WILL TOW THE ACFT INTO GATES 4 OR 18 FROM TWY K AND AIRLINE TO PRVD WING-WALKERS AS THE ACFT IS BEING TOWED INTO GATES 4 OR 18.
A110-17ADG-VI AIRPLANES MAY DEPART ON RWY 6L AND RWY 24R WITH ACFT ON PARL TWY K AS LONG AS NO ADG-VI ACFT OCCUPIES THE PARL TWY BYD 1500 FT OF THE POINT OF TKOF ROLL.
A110-18RWY 06 AND RWY 24 WIND CONE NSTD.
A110-2FOR PARKING INFORMATION ALL ACFT CTC RAMP CTL. ALL ACFT DEP TERMINAL PARKING CTC RAMP CTL FOR ENGINE START AND PUSHBACK.
A110-3TSNT ACFT PRVD 24 HRS ADVN INFO TO EXEC MGR GUAM INTL ARPT AUTHORITY; 1-671-642-4455 MON-FRI 0800-1700 OR FAX 1-671-646-8567.
A110-6EFFECTIVE RY GRADIENT RY 06L 0.46% UP NE; RY 24R 0.70% DOWN SW; RY 06R 0.80 % UP NE; RY 24L 0.52% DOWN SW.
A110-8LGTD TWR 780 FT 1.3 NM ENE OF RY 24L THLD .
A110-9RISING TERRAIN 75 FT FM RY 24L THLD 140 FT EAST OF CNTRLN EXTENDED +8 FT.
A14EXEC DIR: JOHN QUINATA - OPS MGR: RAYMOND QUINTANILLA.
A23-24RRY 24R & RY 24L DO NOT EXCEED 1500 FT IN TFC PAT.
A39-06L/24RPCR VALUE: 776/F/A/X/T
A39-06R/24LPCR VALUE: 680/F/A/X/T
A43-24LPAPI RWY 24L UNUSBL BYD 5 DEG LEFT OF CNTRLN.
GUAM INTL (ICAO: PGUM, IATA: GUM) is a public airport located in TAMUNING, GU, Guam.
