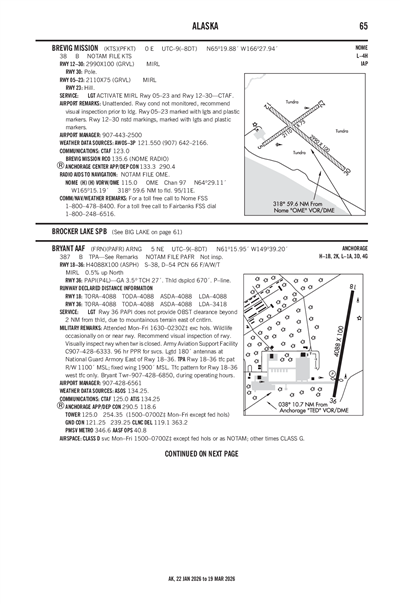

BREVIG MISSION - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PFKT
ICAO PFKTIATA KTSLocal KTS
BREVIG MISSION
PublicPUB

0 miles E of BREVIG MISSION, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
65° 19' 53"N 166° 27' 57"W
Elevation
38' MSL
Pattern Alt
1038' MSL
Mag Variation
8°E
Declination
9°E
Fuel
None Listed
FSS
NOME (OME)
Sectional
NOME
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PFKT VFR
6:56 PM AKST
Clear
10sm
-3°F
-13°F
30.09"Hg
010° 8kts
AO2 SLP190 T11941250 FZRANO $
METAR PFKT 040356Z AUTO 01008KT 330V040 10SM CLR M19/M25 A3009 RMK AO2 SLP190 T11941250 FZRANO $
+ Add Your Business

PFKT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 121.55
(907) 642-2166

Common

CTAF 123.0
ACTVT MIRL RWY 05/23 & 12/30 - CTAF.

Center

ANCHORAGE CENTER 133.3
LOW, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 133.3/290.4 (NOME RCAG).

Flight Service

Flight Service 135.6
(OME), COMMUNICATIONS PRVDD BY NOME FSS ON FREQ 135.6 (BREVIG MISSION RCO).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

PAOM (56nm)
Tue, 3/3 2:20 PM AKST
Tue, 3/3 3:00 PM AKST - Wed, 3/4 3:00 PM AKST
VFR
3:00 PM AKST - 3:00 PM AKST
Sky Clear
6sm
350° 10kts
TAF PAOM 032320Z 0400/0424 35010KT P6SM SKC
PFKT
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99701
Phone: 907-451-2200
GEORGE KOST
BOX 1048
NOME, AK 99762
Phone: 907-443-2500
NOME FSS (OME)
Toll Free: 1-800-478-8400
KTS
--
ACTVT MIRL RWY 05/23 & 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
None
No
None
None
None
None
None

Runway 05/23

2110 ft. x 75 ft.
GRVL
Good
NONE
MED

--
--
--
--
  Runway 05 Runway 23
True Heading 55°235°
Traffic Pattern Left Left
Markings NSTD
Markings Condition
Latitude 65° 19' 49"N 65° 20' 01"N
Longitude 166° 28' 24"W 166° 27' 43"W
Elevation 34' 38'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

2990 ft. x 100 ft.
GRVL
Good
NONE
MED

--
--
--
--
  Runway 12 Runway 30
True Heading 130°310°
Traffic Pattern
Markings NSTD
Markings Condition
Latitude 65° 20' 00"N 65° 19' 42"N
Longitude 166° 28' 19"W 166° 27' 25"W
Elevation 36' 35'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-2RY COND NOT MONITORED; RCMD VISUAL INSPECTION PRIOR TO LDNG.
A42-05_MARKRWY 05/23 MARKED WITH LIGHTS AND PLASTIC MARKERS.
A42-12_MARKRWY 12/30 MARKED WITH LIGHTS AND PLASTIC MARKERS.
A81-APTACTVT MIRL RWY 05/23 & 12/30 - CTAF.
E111ESTABD PRIOR TO 1959.
BREVIG MISSION (ICAO: PFKT, IATA: KTS) is a public airport located in BREVIG MISSION, AK, US.
