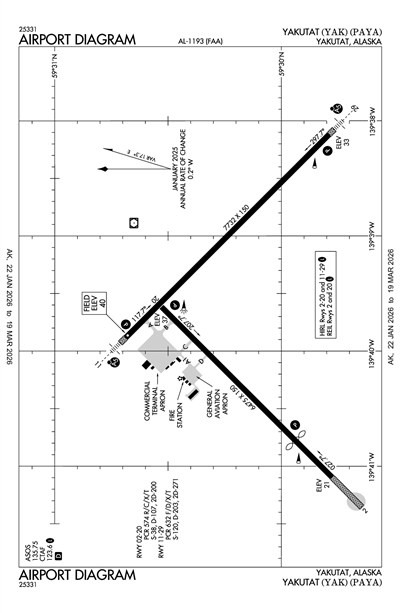

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAYA
YAKUTAT
PublicPUB

3 miles SE of YAKUTAT, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
59° 30' 12"N 139° 39' 37"W
40' MSL
1040' MSL
20E
JET A-1+, 100
JUNEAU (JNU)
JUNEAU
ANCHORAGE (ZAN)
10/31/24-11/28/24
PAYA MVFR
2:53 AM AKST
Light Rain
Overcast 2,100'
9sm
40°F
38°F
29.71"Hg
090° 10kts
Gusts 18kts
AO2 SLP061 P0010 60049 70126 T00440033 10050 20044 50001 TSNO $
PAYA 091153Z AUTO 09010G18KT 9SM -RA OVC021 04/03 A2971 RMK AO2 SLP061 P0010 60049 70126 T00440033 10050 20044 50001 TSNO $
Add Your Business

PAYA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 123.6

ASOS

ASOS
907-784-3116
 135.75

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

PAYA
Sat, 11/9 2:35 AM AKST
Sat, 11/9 3:00 AM AKST - Sun, 11/10 3:00 AM AKST
MVFR
3:00 AM AKST - 6:00 AM AKST
Light Rain
Overcast 3,000'
Broken 1,500'
Scattered 1,000'
6sm
090° 8kts
MVFR
Temporary 3:00 AM AKST - 6:00 AM AKST
Rain and Mist
No Clouds
5sm
070° 10kts
Gusts 20kts
MVFR
6:00 AM AKST - 6:00 PM AKST
Light Rain and Mist
Overcast 2,000'
4sm
120° 9kts
VFR
6:00 PM AKST - 3:00 AM AKST
Light Rain
Overcast 3,500'
Scattered 2,500'
6sm
110° 7kts
PAYA 091135Z 0912/1012 09008KT P6SM -RA SCT010 BKN015 OVC030
   TEMPO 0912/0915 07010G20KT 5SM RA BR
   FM091500 12009KT 4SM -RA BR OVC020
   FM100300 11007KT P6SM -RA SCT025 OVC035 AMD LTD TO CLD VIS AND WIND
PAYA
Domestic
11/6/242130Z !YAK 11/071 YAK NAV ILS RWY 11 LOC/GP U/S 2411062130-2411062330
11/6/241700Z !YAK 11/077 YAK NAV ILS RWY 11 GP U/S 2411061700-2411061930
11/6/240050Z !YAK 11/076 YAK APRON ALL FICON WET OBS AT 2411060050. 2411060050-2411070050
11/6/240049Z !YAK 11/075 YAK TWY ALL FICON WET OBS AT 2411060049. 2411060049-2411070049
11/6/240048Z !YAK 11/074 YAK RWY 11 FICON 5/5/5 100 PCT WET OBS AT 2411060048. 2411060048-2411070048
10/1/241600Z !YAK 09/310 YAK RWY 20 RWY END ID LGT U/S 2410011600-2505011600
10/1/241600Z !YAK 09/309 YAK RWY 20 PAPI U/S 2410011600-2505011600
10/1/241600Z !YAK 09/308 YAK RWY 02 RWY END ID LGT U/S 2410011600-2505011600
10/1/241600Z !YAK 09/307 YAK RWY 02 PAPI U/S 2410011600-2505011600
9/27/240651Z !YAK 09/339 YAK RWY 11 RAI LGT U/S 2409270651-2509281500EST
FDC
9/10/241616Z !FDC 4/3240 YAK IAP YAKUTAT, YAKUTAT, AK.
ILS OR LOC RWY 11, AMDT 4...
LOC BC RWY 29, AMDT 9...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
YAK VOR OUT OF SERVICE. 2409101616-2504221616EST
9/10/241616Z !FDC 4/3238 YAK ODP YAKUTAT, YAKUTAT, AK.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5A...
DEPARTURE PROCEDURE ADF REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
YAK VOR OUT OF SERVICE. 2409101616-2504221616EST
9/10/241616Z !FDC 4/3237 YAK SID YAKUTAT, YAKUTAT, AK.
FAKES FOUR DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
YAK VOR OUT OF SERVICE. 2409101616-2504221616EST
3/15/241556Z !FDC 4/7765 YAK ODP YAKUTAT, YAKUTAT, AK.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5A...
TAKEOFF MINIMUMS: RWY 20, 300-1 1/8 OR STANDARD WITH MINIMUM CLIMB OF 290 FEET PER NM TO 300. ALL OTHER DATA REMAINS AS PUBLISHED. 2403151556-2603151556EST
9/27/231740Z !FDC 3/6199 YAK IAP YAKUTAT, YAKUTAT, AK.
VOR/DME RWY 29, AMDT 5...
S-29 HAT 408.
CIRCLING CAT A MDA 520/HAA 480, CAT B MDA 540/HAA 500, CAT C HAA 580, CAT D HAA 680
NOTE: CIRCLING RWY 20 NA AT NIGHT.
DISREGARD PROFILE NOTE: VGSI AND DESCENT ANGLES NOT COINCIDENT.
APT ELEV 40.
TDZE 32.
2309271740-2508301740EST
No
1530Z-0230Z
ALASKA DOT&PF SOUTHCOAST REGION
6860 GLACIER HWY
JUNEAU, AK 99801-7999
Phone: 907-465-1779
ROBERT LEKANOF
BOX 186
YAKUTAT, AK 99689
Phone: 907-784-3293
JUNEAU FSS (JNU)
Toll Free: 1-866-297-2236
YAK
--
ACTVT MALSR RWY 11 & 29; REIL RWY 02/20; PAPI RWY 11/29 & 02/20; HIRL RWY 02/20, 11/29; TWY LIGHTS - CTAF.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Cargo Handling

Runway 02/20

6475 ft. x 150 ft.
CONC
Good
NONE
HIGH

38,000lbs
107,000lbs
200,000lbs
--
  Runway 02 Runway 20
True Heading 45°225°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 59° 29' 47"N 59° 30' 32"N
Longitude 139° 41' 06"W 139° 39' 37"W
Elevation 21' 37'
Threshold Crossing Height 27 ft. AGL 29 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 11/29

7732 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
203,000lbs
271,000lbs
--
  Runway 11 Runway 29
True Heading 135°315°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition FAIR GOOD
Latitude 59° 30' 41"N 59° 29' 47"N
Longitude 139° 39' 53"W 139° 38' 07"W
Elevation 40' 33'
Threshold Crossing Height 56 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights
A110-1BE ALERT POSSIBLE SNOW PILES ON RAMP AND SNOW BERMS ON TWY EDGES 1 OCT - 1 MAY.
A110-10PARA JUMPING ONTO ARPT, RWY, TWY & ACFT PARKING APRON PROHIBTED.
A110-13TWY A1, D & APRON B CLSD TO ACFT 12500 LBS & OVR.
A110-14ARPT SAND LARGER GRADATION THAN FAA RECOMMENDED/SEE AC150/5200-30.
A110-15TWYS B, C, & D NOT MAINTAINED OR MONITORED 1 OCT- 1 MAY.
A110-16TWY LGTS TWYS B, C, & D OTS 1 OCT- 1 MAY.
A110-1724 HOUR PPR REQ FOR CARGO OPS OVER 100K CALL 907-784-3476.
A110-18WX CAMERAS AVBL AT: HTTPS://WEATHERCAMS.FAA.GOV.
A110-191 OCT - 1 MAY: PAPI RWY 02, 11, & 29; HIRL RWY 02/20; REIL RWY 02/20 OTS.
A110-2SNOW REMOVAL; ICE CONTROL & ARPT HAZARDOUS CONDS REPORTED ONLY DURG ARPT MAINT DUTY HRS.
A110-20SNOW REMOVAL, WILDLIFE CTL, COND REPORTING, AND OTR AFLD MAINT SERVICES ONLY AVBL AND VALID DRG ARPT MAINT DUTY HRS. CTC ARPT MGMT FOR AFTER-HRS REQS FOR AFLD SERVICES. ARPT MAINT DUTY HRS 0630-1730 DLY.
A110-21NWS WEATHER BALLOON LAUNCH FAC LOCATED ON ARPT, SEE INSIDE BACK COVER FOR OPN DETAILS.
A110-22RWY 02/20 NOT AVBL FOR SCHEDULED OR UNSCHEDULED ACR OPNS WITH MORE THAN 30 PSGR SEATS.
A110-4RWY 02/20 NOT MAINTAINED OR MONITORED 1 OCT - 1 MAY.
A110-5NUMEROUS BIRDS, BEAR, MOOSE ON & INVOF RWY.
A110-7TWY C AND TWY A1 CLSD DURG ACR OPNS UNTIL 15 MIN AFTER DUE TO JET BLAST.
A110-8RWY COND REPORTS REFLECT CONDS DURING ARPT MAINT DUTY HRS ONLY.
A110-9ARPT MAINT PERSONNEL & EQUIP MAY BE ON RWY AT ANY TIME; RECOMMEND VISUAL INSPN PRIOR TO USE; CTC NEAREST FSS FOR CURRENT NOTAM.
YAKUTAT (ICAO: PAYA, IATA: YAK) is a public airport located in YAKUTAT, AK.
