No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAWN
NOATAK
PublicPUB

1 miles SW of NOATAK, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
67° 33' 40"N 162° 58' 49"W
92' MSL
1092' MSL
11E
None Listed
KOTZEBUE (OTZ)
NOME
ANCHORAGE (ZAN)
4/17/25-5/15/25
PAVL (38nm) MVFR
10:53 PM AKDT
Overcast 3,600'
Broken 2,500'
10sm
49°F
42°F
29.83"Hg
100° 5kts
AO2 SLP100 T00940056 PWINO TSNO $
PAVL 030653Z AUTO 10005KT 10SM BKN025 OVC036 09/06 A2983 RMK AO2 SLP100 T00940056 PWINO TSNO $
+ Add Your Business

PAWN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3P

AWOS-3P
907-485-2203
 135.75

FAA A/FD Pages

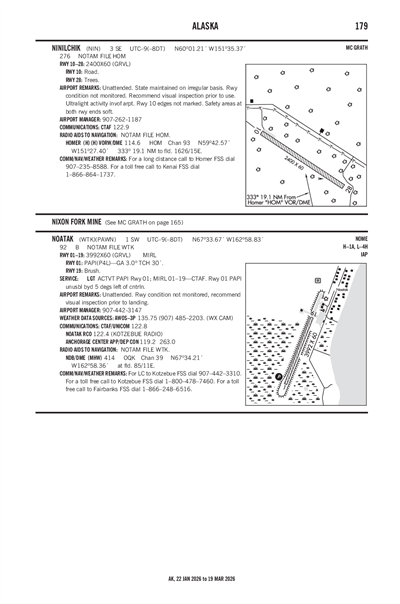

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PAOT (41nm)
Mon, 6/2 9:23 PM AKDT
Mon, 6/2 10:00 PM AKDT - Tue, 6/3 10:00 PM AKDT
VFR
10:00 PM AKDT - 1:00 AM AKDT
Overcast 10,000'
Few 3,000'
6sm
100° 10kts
VFR
1:00 AM AKDT - 4:00 PM AKDT
Overcast 5,000'
6sm
070° 8kts
VFR
4:00 PM AKDT - 10:00 PM AKDT
Broken 10,000'
6sm
300° 8kts
PAOT 030523Z 0306/0406 10010KT P6SM FEW030 OVC100
   FM030900 07008KT P6SM OVC050
   FM040000 30008KT P6SM BKN100
PAWN
FDC
3/17/251848Z !FDC 5/4076 WTK IAP NOATAK, NOATAK, AK.
RNAV (GPS) RWY 19, ORIG-B...
NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE KOTZEBUE ALTIMETER SETTING: INCREASE ALL MDA 120 FEET AND VISIBILITY LP CAT C AND D 1/4 SM, LNAV CAT C AND D 3/8 SM, AND CIRCLING CAT D 1/2 SM.
WTK AWOS OUT OF SERVICE.
2503171848-2508061848EST
3/17/251848Z !FDC 5/4075 WTK IAP NOATAK, NOATAK, AK.
RNAV (GPS) RWY 1, ORIG-B...
NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE KOTZEBUE ALTIMETER SETTING: INCREASE LPV AND LNAV/VNAV DA TO 446 FT; INCREASE ALL MDA 120 FEET AND VISIBILITY LNAV CAT C AND D 5/8 SM AND CIRCLING CAT C 1/2 SM, CAT D 3/4 SM.
WTK AWOS OUT OF SERVICE.
2503171848-2508061848EST
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99709
Phone: 907-451-2200
ALVIN WERNEKE
BOX 55
KOTZEBUE, AK 99752
Phone: 907-442-3147
KOTZEBUE FSS (OTZ)
Toll Free: 1-800-478-7460
WTK
--
ACTVT PAPI RWY 01; MIRL RWY 01/19 - CTAF.
N/A
Yes - Lighted
N/A
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Cargo Handling

Runway 01/19

3992 ft. x 60 ft.
GRAVEL
Good
NONE
MED

--
--
--
--
  Runway 01 Runway 19
True Heading 22°202°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition
Latitude 67° 33' 22"N 67° 33' 58"N
Longitude 162° 59' 09"W 162° 58' 30"W
Elevation 84' 92'
Threshold Crossing Height 30 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RY CONDITION NOT MONITORED; RECOMMEND VISUAL INSPECTION PRIOR TO LANDING.
A110-2WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
NOATAK (ICAO: PAWN, IATA: WTK) is a public airport located in NOATAK, AK.
