iFlightPlanner



...

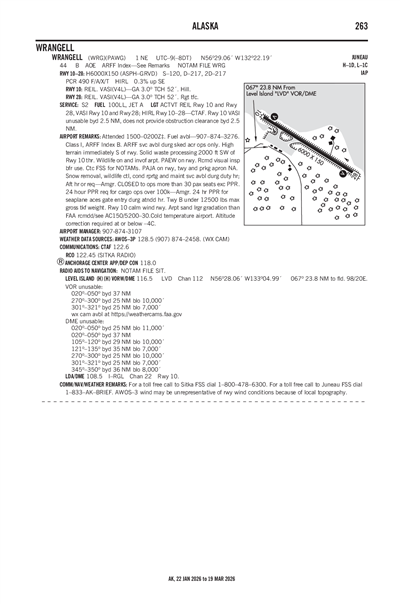

WRANGELL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAWG
ICAO PAWGIATA WRGLocal WRG
WRANGELL
PublicPUB

1 miles NE of WRANGELL, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
56° 29' 04"N 132° 22' 11"W
Elevation
44' MSL
Pattern Alt
1044' MSL
Mag Variation
18°E
Declination
20°E
Fuel
JET A, 100LL
FSS
SITKA (SIT)
Sectional
JUNEAU
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PAWG MVFR
4:56 PM AKST
Light Rain
Overcast 5,000'
Broken 3,000'
Few 1,000'
10sm
34°F
30°F
29.46"Hg
100° 7kts
AO2 RAE23B54 SLP976 P0000 T00111011 $
METAR PAWG 040156Z 10007KT 10SM -RA FEW010 BKN030 OVC050 01/M01 A2946 RMK AO2 RAE23B54 SLP976 P0000 T00111011 $
+ Add Your Business

PAWG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 128.5
(907) 874-2458

Common

CTAF 122.6
ACTVT REIL RWY 10 & 28; VASI RWY 10 & 28; HIRL RWY 10/28 - CTAF.

Center

ANCHORAGE CENTER 118.0
LOW, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQ 118.0 (LEVEL ISLAND RCAG).

Flight Service

Flight Service 122.45
(SIT), COMMUNICATIONS PRVDD BY SITKA FSS ON FREQ 122.45 (WRANGELL RCO).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

PAWG
Tue, 3/3 2:32 PM AKST
Tue, 3/3 3:00 PM AKST - Wed, 3/4 3:00 PM AKST
MVFR
3:00 PM AKST - 9:00 PM AKST
Light Rain
Overcast 2,000'
Scattered 1,000'
4sm
100° 9kts
MVFR
9:00 PM AKST - 9:00 AM AKST
Light Rain
Overcast 2,000'
4sm
100° 5kts
MVFR
9:00 AM AKST - 1:00 PM AKST
Light Rain
Overcast 1,500'
6sm
200° 5kts
MVFR
1:00 PM AKST - 3:00 PM AKST
Light Rain
Broken 1,500'
6sm
260° 7kts
TAF PAWG 032332Z 0400/0424 10009KT 4SM -RA SCT010 OVC020
   FM040600 10005KT 4SM -RA OVC020
   FM041800 20005KT 6SM -RA OVC015
   FM042200 26007KT 6SM -RA BKN015 AMD LTD TO CLD VIS AND WIND 0406/0415
PAWG
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
0002Z
2/26/26
0002Z
!WRG 02/105 WRG APRON ALL FICON 1/2IN WET SN OBS AT 2602250002. 2602250002-2602260002
2/25/26
0002Z
2/26/26
0002Z
!WRG 02/104 WRG TWY ALL FICON 1/2IN WET SN OBS AT 2602250002. 2602250002-2602260002
2/25/26
0001Z
2/26/26
0001Z
Runway!WRG 02/103 WRG RWY 10 FICON 5/5/5 100 PCT WET PLOWED AND SWEPT 60FT WID REMAINDER 1/8IN WET SN OBS AT 2602250001. 2602250001-2602260001
2/24/26
1836Z
2/25/26
1836Z
!WRG 02/098 WRG TWY EAST TURNAROUND CLSD 2602241836-2602251836
1/30/26
1701Z
Runway!WRG 01/172 WRG RWY 28 RWY END ID LGT U/S 2601301701-2604251500EST
10/28/25
0024Z
5/29/26
0024Z
!WRG 10/096 WRG AD AP SFC MARKINGS NOT STD LACKS
RETROREFLECTIVITY 2510280024-2605290024
FDC
9/25/25
2034Z
5/7/26
2034Z
!FDC 5/0686 WRG IAP WRANGELL, WRANGELL, AK.
LDA-C, AMDT 8A...
LDA-D, AMDT 7A...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LVD VOR OUT OF SERVICE. 2509252034-2605072034EST
9/25/25
2034Z
5/7/26
2034Z
!FDC 5/0685 WRG ODP WRANGELL, WRANGELL, AK.
LEVEL ISLAND THREE DEPARTURE ...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LVD VOR OUT OF SERVICE. 2509252034-2605072034EST
No
0600-1700
ALASKA DOT&PF SOUTHCOAST REGION
6860 GLACIER HWY
JUNEAU, AK 99801
Phone: 907-465-1786
GARY ALLEN
BOX 1351
WRANGELL, AK 99929
Phone: 907-874-3107
SITKA FSS (SIT)
Toll Free: 1-800-478-6300
WRG
--
ACTVT REIL RWY 10 & 28; VASI RWY 10 & 28; HIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
Yes
No
Hangar
NOT a Landing Rights Airport
Airport of Entry
Minor
Minor
None
None
Cargo Handling

Runway 10/28

6000 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
217,000lbs
217,000lbs
--
  Runway 10 Runway 28
True Heading 121°301°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 56° 29' 19"N 56° 28' 48"N
Longitude 132° 22' 57"W 132° 21' 26"W
Elevation 27' 44'
Threshold Crossing Height 52 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-10PAEW ON RWY. RCMD VISUAL INSP BFR USE. CTC FSS FOR NOTAMS.
A110-11PAJA ON RWY, TWY & PRKG APRON NA.
A110-16LEVEL ISLAND WX CAMERAS AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-17ARPT SAND LRGR GRADATION THAN FAA RCMDD/SEE AC150/5200-30.
A110-18CLSD TO OPS MORE THAN 30 PAX SEATS EXC PPR. 24 HR PPR CARGO OPS OVER 100K - AMGR.
A110-19TWY B UNDER 12500 LB MAX GROSS TKOF WEIGHT.
A110-2024 HR PPR FOR SEAPLANE ACES GATE ENTRY DURG ATNDD HR.
A110-21COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -4C.
A110-22SOLID WASTE PROCESSING 2000 FT SW OF RWY 10 THR.
A110-23WILDLIFE ON & INVOF ARPT.
A110-24FUEL AVBL - 907-874-3276.
A110-5SNOW REMOVAL, WILDLIFE CTL, COND RPRTG & MAINT SVC AVBL DURG DUTY HR; AFT HR OR REQ - AMGR.
A110-7HIGH TRRN IMT S OF RWY.
A26ARFF SVC AVBL DURG SKED ACR OPS ONLY.
A30A-10CALM WIND RWY.
A39-10/28PCR VALUE: 490/F/A/X/T
A43-10VASI UNUSBL BYD 2.5 NM; DOES NOT PROVIDE OBSTN CLRNC BYD 2.5 NM.
A81-APTACTVT REIL RWY 10 & 28; VASI RWY 10 & 28; HIRL RWY 10/28 - CTAF.
WRANGELL (ICAO: PAWG, IATA: WRG) is a public airport located in WRANGELL, AK, US.
