iFlightPlanner



...

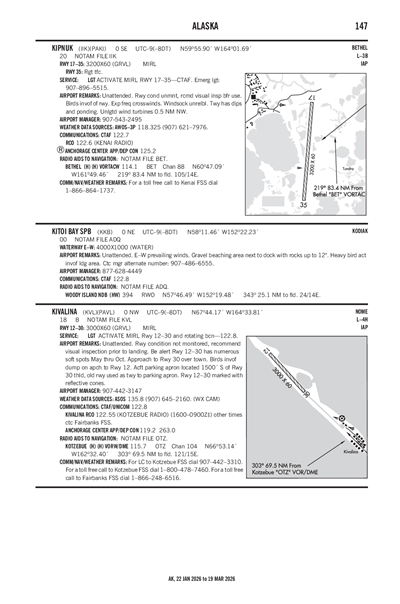

KIVALINA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAVL
ICAO PAVLIATA KVLLocal KVL
KIVALINA
PublicPUB

0 miles NW of KIVALINA, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
67° 44' 10"N 164° 33' 49"W
Elevation
18' MSL
Pattern Alt
1018' MSL
Mag Variation
9°E
Declination
15°E
Fuel
None Listed
FSS
KOTZEBUE (OTZ)
Sectional
NOME
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PAVL VFR
1:53 PM AKST
Clear
10sm
-6°F
-12°F
29.95"Hg
360° 9kts
AO2 SLP141 T12111244 PWINO FZRANO TSNO $
METAR PAVL 042253Z AUTO 36009KT 10SM CLR M21/M24 A2995 RMK AO2 SLP141 T12111244 PWINO FZRANO TSNO $
+ Add Your Business

PAVL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 135.8
(907) 645-2160

Common

CTAF 122.8
UNICOM 122.8

Center

ANCHORAGE CENTER 119.2
LOW, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 119.2/263.0 (KOTZEBUE RCAG).

Flight Service

Flight Service 122.55
(OTZ), COMMUNICATIONS PRVDD BY KOTZEBUE FSS ON FREQ 122.55 (KIVALINA RCO).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

PAOT (68nm)
Wed, 3/4 2:22 PM AKST
Wed, 3/4 3:00 PM AKST - Thu, 3/5 3:00 PM AKST
VFR
3:00 PM AKST - 5:00 PM AKST
Sky Clear
6sm
VRB° 3kts
VFR
5:00 PM AKST - 12:00 AM AKST
Sky Clear
6sm
330° 5kts
VFR
12:00 AM AKST - 3:00 PM AKST
Sky Clear
6sm
040° 5kts
TAF PAOT 042322Z 0500/0524 VRB03KT P6SM SKC
   FM050200 33005KT P6SM SKC
   FM050900 04005KT P6SM SKC
PAVL
EffectiveExpiresCategoryNOTAM
Domestic
3/1/26
2220Z
!KVL 03/001 KVL COM REMOTE COM OUTLET 122.55 U/S 2603012220-2605211500EST
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER ROAD
FAIRBANKS, AK 99709
Phone: 907-451-2200
ALVIN WERNEKE
BOX 55
KOTZEBUE, AK 99752
Phone: 907-442-3147
KOTZEBUE FSS (OTZ)
Toll Free: 1-800-478-7460
KVL
--
ACTVT MIRL RY 12/30 - 122.8.
ACTVT ROTG BCN - 122.8
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 12/30

3000 ft. x 60 ft.
GRAVEL
Good
NONE
MED

--
--
--
--
  Runway 12 Runway 30
True Heading 137°317°
Traffic Pattern
Markings
Markings Condition
Latitude 67° 44' 21"N 67° 43' 59"N
Longitude 164° 34' 15"W 164° 33' 22"W
Elevation 16' 18'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1APCH TO RY 30 OVR TOWN.
A110-2RY CONDITION NOT MONITORED; RECOMMEND VISUAL INSPECTION PRIOR TO LANDING.
A110-3ACFT PARKING APRON LCTD 1500 FT S OF RY 30 THR; OLD RY USED AS TWY TO PARKING APRON.
A110-4BIRDS INVOF DUMP ON APCH TO RY 12.
A110-5BE ALERT RY 12/30 HAS NUMEROUS SOFT SPOTS MAY THRU OCT.
A110-6WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A42-12_MARKRY 12/30 MKD WITH REFLECTIVE CONES.
A5NORTHWEST ARCTIC BOROUGH
A81-APTACTVT MIRL RY 12/30 - 122.8.
A81-BCNACTVT ROTG BCN - 122.8
KIVALINA (ICAO: PAVL, IATA: KVL) is a public airport located in KIVALINA, AK, US.
