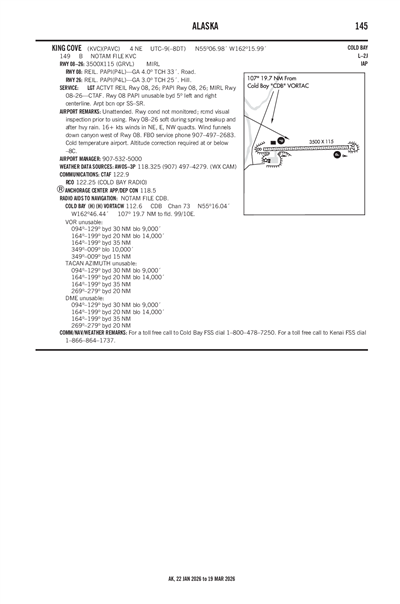

KING COVE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAVC
ICAO PAVCIATA KVCLocal KVC
KING COVE
PublicPUB

4 miles NE of KING COVE, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
55° 06' 59"N 162° 15' 60"W
Elevation
149' MSL
Pattern Alt
1149' MSL
Mag Variation
10°E
Declination
10°E
Fuel
None Listed
FSS
COLD BAY (CDB)
Sectional
COLD BAY
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PAVC VFR
8:56 PM AKST
Clear
N/A
15°F
6°F
29.71"Hg
230° 14kts
Gusts 18kts
AO2 SLP064 T10941144 11061 21100 58008 PWINO FZRANO $
METAR PAVC 040556Z AUTO 23014G18KT CLR M09/M14 A2971 RMK AO2 SLP064 T10941144 11061 21100 58008 PWINO FZRANO $
+ Add Your Business

PAVC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 118.325
(907) 497-4279, (COMM_DECOMM_DATE) AWSS

Common

CTAF 122.9
ACVT REIL RWY 08, 26; PAPI RWY 08, 26; MIRL RWY 08/26 - CTAF.

Center

ANCHORAGE CENTER 118.5
LOW, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 118.5/278.3 (COLD BAY RCAG).

Flight Service

Flight Service 122.25
(CDB)

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

PACD (17nm)
Tue, 3/3 8:30 PM AKST
Tue, 3/3 9:00 PM AKST - Wed, 3/4 9:00 PM AKST
MVFR
9:00 PM AKST - 9:00 AM AKST
Overcast 1,800'
6sm
010° 10kts
MVFR
9:00 AM AKST - 9:00 PM AKST
Overcast 2,500'
6sm
360° 12kts
TAF PACD 040530Z 0406/0506 01010KT P6SM OVC018
   FM041800 36012KT P6SM OVC025 AMD NOT SKED
PAVC
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
0514Z
!KVC 03/011 KVC COM REMOTE COM OUTLET 122.25 U/S 2603040514-2603311500EST
3/4/26
0115Z
Runway!KVC 03/008 KVC RWY 08 RWY END ID LGT U/S 2603040115-2606151500EST
3/4/26
0112Z
Runway!KVC 03/007 KVC RWY 26 RWY END ID LGT U/S 2603040112-2606151500EST
3/4/26
0110Z
Runway!KVC 03/006 KVC RWY 26 PAPI U/S 2603040110-2606151500EST
12/19/25
1710Z
!KVC 12/001 KVC SVC AUTOMATED WX BCST SYSTEM VIS U/S 2512191710-2603291500EST
No
UNATNDD
ALASKA DOT&PF SOUTHCOAST REGION
1500 ANTON LARSON ROAD
KODIAK, AK 99615
Phone: (907) 487-4952
HAROLD "HAP" KREMER
BOX 97
COLD BAY, AK 99571
Phone: 907-532-5000
COLD BAY FSS (CDB)
Toll Free: 1-800-478-7250
KVC
--
ACVT REIL RWY 08, 26; PAPI RWY 08, 26; MIRL RWY 08/26 - CTAF.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 08/26

3500 ft. x 115 ft.
GRVL
Good
NONE
MED

--
--
--
--
  Runway 08 Runway 26
True Heading 88°268°
Traffic Pattern Left Left
Markings
Markings Condition FAIR FAIR
Latitude 55° 06' 58"N 55° 06' 60"N
Longitude 162° 16' 30"W 162° 15' 29"W
Elevation 146' 144'
Threshold Crossing Height 33 ft. AGL 25 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-116+ KTS WINDS IN NE E NW QUADTS. WIND FUNNELS DOWN CANYON WEST OF RWY 08.
A110-10COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -8C.
A110-4RWY COND NOT MONITORED; RCMD VISUAL INSPECTION PRIOR TO USING.
A110-8WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV.
A110-9FBO SERVICE PHONE: 907-497-2683
A33-08/26_CONDRWY SOFT DURING SPRING BREAKUP & AFTER HVY RAIN.
A33-08/26_SURFGRVL-DIRT
A43-08PAPI UNUSBL BYD 5 DEGS LEFT AND RIGHT CNTRLN.
A81-APTACVT REIL RWY 08, 26; PAPI RWY 08, 26; MIRL RWY 08/26 - CTAF.
KING COVE (ICAO: PAVC, IATA: KVC) is a public airport located in KING COVE, AK, US.
