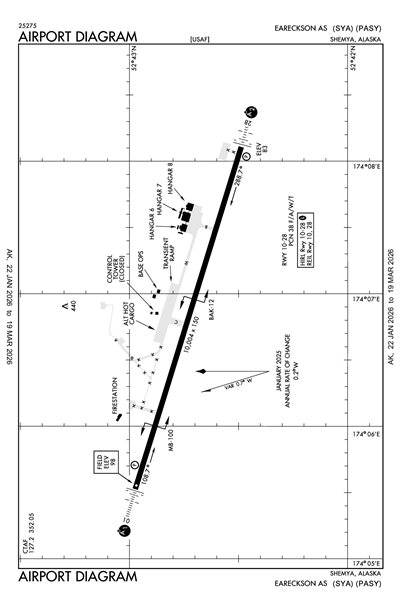

EARECKSON AS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PASY
ICAO PASYIATA SYALocal SYA
EARECKSON AS
PrivatePVT

0 miles S of SHEMYA, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
52° 42' 44"N 174° 06' 49"E
Elevation
98' MSL
Pattern Alt
1098' MSL
Mag Variation
0°
Declination
1°E
Fuel
None Listed
FSS
COLD BAY (CDB)
Sectional
W ALEUTIAN ISLS
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PASY MVFR
4:36 PM HST
Broken 4,300'
Broken 3,100'
Broken 2,300'
Few 1,500'
10sm
32°F
21°F
30.12"Hg
030° 20kts
AO2A SNB02R20 RVRNO PNO FZRANO $
SPECI PASY 040236Z 03020KT 10SM FEW015 BKN023 BKN031 BKN043 BKN050 M00/M06 A3012 RMK AO2A SNB02R20 RVRNO PNO FZRANO $
+ Add Your Business

PASY FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 127.2
352.050 UHF.; ACTVT ALSF1 RWY 10; SALSF RWY 28; HIRL RWY 10/28 - CTAF. PAPI RWY 10 & 28 OPR CONSLY.; CTAF ADVSY 352.05 UNAVBL 0300-1100Z++ MON-SAT, SUN & HOL. AFT SKED ARR CTAF ADVSY 352.05 AVBL ONE HR PRIOR.; AIRBORNE ACFT DECLARING EMERG INTO EARECKSON AIR STN - EARECKSON METRO 127.2 OR 352.05 DURG OPS HR; IF NO ANSWER - EARECKSON RADIO ON CTAF & CALL 907-392-3505/3606; ENSURE ANCHORAGE ATC IS AWARE OF EMERG. AS BACKUP ANCHORAGE ATC DURG NON OPS HR SHALL NOTIFY EARECKSON RADIO ON 907-392-3505/3606 OF ALL ACFT EMERG. DURG NON OPS HR EARECKSON AIR STN RQR 30 MIN PN WHEN PSBL.

Center

ANCHORAGE CENTER 119.1
LOW/HIGH, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 119.1/339.8 (SHEMYA RCAG).

Terminal Area Forecast

PASY
Tue, 3/3 3:18 PM HST
Tue, 3/3 3:00 PM HST - Wed, 3/4 6:00 PM HST
VFR
Temporary 3:00 PM HST - 7:00 PM HST
No Clouds
N/A
040° 25kts
Gusts 35kts
Moderate, Clear Air, Frequent: up to 9,000'
MVFR
3:00 PM HST - 7:00 PM HST
Light Snow
Broken 4,000'
Scattered 2,500'
4.97sm
30.15"Hg
040° 20kts
MVFR
Becoming 7:00 PM HST - 1:00 AM HST
Overcast 4,000'
Broken 2,500'
Few 1,000'
6sm
30.15"Hg
030° 20kts
Gusts 30kts
Moderate, Clear Air, Frequent: 1,000 - 9,000'
MVFR
Becoming 1:00 AM HST - 6:00 AM HST
Light Snow
Overcast 4,000'
Broken 2,500'
Scattered 1,000'
4.97sm
30.12"Hg
010° 15kts
Gusts 25kts
Moderate, Clear Air, Occasional: 1,000 - 10,000'
MVFR
Becoming 6:00 AM HST - 11:00 AM HST
Light Snow
Overcast 2,500'
Broken 1,000'
3.73sm
30.06"Hg
350° 15kts
Gusts 25kts
Moderate, Clear Air, Occasional: 1,000 - 10,000'
IFR
Becoming 11:00 AM HST - 6:00 PM HST
Light Snow
Overcast 2,500'
Broken 1,000'
2.98sm
29.97"Hg
320° 15kts
Gusts 25kts
Moderate, Clear Air, Occasional: 1,000 - 10,000'
TAF AMD PASY 040118Z 0401/0504 04020KT 8000 -SN SCT025 BKN040 620402 QNH3014INS
   TEMPO 0401/0405 04025G35KT 530009
   BECMG 0405/0406 03020G30KT 9999 NSW FEW010 BKN025 OVC040 620254 530009 QNH3016INS
   BECMG 0411/0412 01015G25KT 8000 -SN SCT010 BKN025 OVC040 620254 520109 QNH3011INS
   BECMG 0416/0417 35015G25KT 6000 -SN BKN010 OVC025 620105 520109 QNH3006INS
   BECMG 0421/0422 32015G25KT 4800 -SN BKN010 OVC025 620105 520109 QNH2996INS TX00/0401Z TNM03/0419Z LIMITED METWATCH 0403 TIL 0411
PASY
EffectiveExpiresCategoryNOTAM
Domestic
2/21/26
0310Z
3/23/26
2300Z
Runway!PASY 02/002 SYA RWY 28 PAPI U/S 2602210310-2603232300
Military
2/25/26
0243Z
2/28/26
0243Z
M0162/26 NOTAMC M0161/26
2/21/26
0301Z
3/23/26
2300Z
Runway!PASY M0155/26 SYA RWY 28 PAPI U/S 2602210301-2603232300
2/2/26
2003Z
3/16/26
2300Z
Runway!PASY M0082/26 SYA RWY 28 RWY END ID LGT U/S 2602022003-2603162300
1/16/26
0230Z
3/16/26
2300Z
MAIN RAMP HANGAR 7 AND HANGAR 8 OBSTRUCTION LIGHT 52°42'44N 174°07'34E (800 FT N RWY C/L, 2000 FT RWY 28 END) UNSERVICEABLE.
1/16/26
0229Z
3/16/26
2300Z
RunwayRWY 10/28 APCH LIGHTING SYSTEM UNSERVICEABLE
1/16/26
0228Z
3/16/26
2300Z
RunwayRWY 10/28 SEQUENCED FLASHING LGT UNSERVICEABLE
1/16/26
0228Z
3/16/26
2300Z
AerodromeAERODROME VORTAC OBSTRUCTION LIGHT UNSERVICEABLE 6,600 FEET WEST OF RWY 10 END, 52.71826N 174.06204E.
1/16/26
0226Z
3/16/26
2300Z
Navigation!PASY M0039/26 SYA NAV TACAN UNUSABLE 2601160226-2603162300
1/16/26
0223Z
3/16/26
2300Z
RunwayRWY 28 BAK 12 APPROACH END RUNWAY 28 LAPSED AIR FORCE DIRECTED CERTIFICATION. SYSTEM IS MAINTAINED AND OPERATIONAL. AIRCREW USE AT OWN RISK
No
MON-FRI 1800-0300Z++ CLSD WKEND & HOL
0800-1700.
U S AIR FORCE
611TH AIR SUPPORT SQUADRON 10471 20TH STREET, SUITE 361
ELMENDORF AFB, AK 99506
Phone: 907-552-3442
GARY CARDULLO
611TH AIR SUPPORT SQUADRON 10471 20TH STREET, SUITE 216
ELMENDORF AFB, AK 99506
Phone: 907-392-3362
COLD BAY FSS (CDB)
Toll Free: 1-800-478-7250
PASY
--
ACTVT ALSF1 RWY 10; SALSF RWY 28; HIRL RWY 10/28 - CTAF. PAPI RWY 10 & 28 OPR CONSLY.
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Cargo Handling

Runway 10/28

10004 ft. x 150 ft.

ASPH
GRVD
HIGH
38/F/A/W/T
--
--
--
--
  Runway 10 Runway 28
True Heading 108°288°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 52° 42' 59"N 52° 42' 29"N
Longitude 174° 05' 32"E 174° 08' 06"E
Elevation 98' 83'
Threshold Crossing Height 45 ft. AGL 49 ft. AGL
Visual Glide Path Angle 2.5° 2.5°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 SALSF
Centerline Lights No No
Runway End Identifier Lights No No
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1HILLS 8 NM W 662 FT MSL.
A110-10CTN: SEE GENOT/RADIATION AREAS: 52 44-N/174 05-E BEARING 250- 028T.
A110-13EXTERNAL MOUNTED ELECTRO EXPLOS DEVICE RADIATION HAZ AREA SFC-16000 FT MSL TO 3 NM. PSBL INTFC WITH ELECTRONIC EQUIP ABV 200 FT MSL TO 3 NM MIL/62 NM CIV FM PHASED ARRAY ANT NW CORNER OF SHEMYA IS. PSBL 30 MIN ARRL DELAY FOR ELECTRO EXPLOS DEVICE ACFT. ELECTRO EXPLOS DEVICE ACFT MUST ADVISE AIRFIELD OPS PRIOR TO DEP.
A110-15FLTS ORIGINATING OUTSIDE THE UNITED STATES REFER TO AK SECTION OF USAF-FOREIGN CLNC GUIDE. 30 MIN PN FOR BARRIER SVC.
A110-18HVY GOOSE ACTVT APR-JUN & AUG-OCT; GULLS & RAVENS INVOF ARPT. RPT BIRD/WILDLIFE STRIKES ON OR INVOF EARECKSON - EAS AFLD OPS/TWR D317-392-3505/C907-392-3505 & 3WG/SEF & USDA-WS D317-552-4798/4128 OR C907-552-4798/4128.
A110-27SHEMYA 52 44-N 174 05-E BEARING 250-028T; INFO ONLY.
A110-35PMSV METRO REMOTE WX BRIEFINGS AVBL H24 - 15 OWS D312-576-9755/C618-256-9755; 2 HR PN.
A110-37TWY A, D, & PRI HCP CLSD. ALT HCP 72 HR PPR.
A110-40ARPT HAS RGLR & LED OBSTN LGT; LED LGT MAY NOT BE VSB TO NGT VISION DEVICES.
A110-417 DAY SITE ARR OR 45 DAY FOREIGN NATNL REQ - D317-552-5020/5107/C907-552-5020/5107 & PPR - D317-392-3505/3606/4005/C907-392-3505/3606/4005.
A110-42SVC FEE RQRD. TSNT SVC MON-FRI 1800Z-0300Z++; CLSD WKEND & HOL. AFT HR MAY INCUR O/T & SVC FEE.
A110-43CTAF ADVSY 352.05 UNAVBL 0300-1100Z++ MON-SAT, SUN & HOL. AFT SKED ARR CTAF ADVSY 352.05 AVBL ONE HR PRIOR.
A110-44AIRBORNE ACFT DECLARING EMERG INTO EARECKSON AIR STN - EARECKSON METRO 127.2 OR 352.05 DURG OPS HR; IF NO ANSWER - EARECKSON RADIO ON CTAF & CALL 907-392-3505/3606; ENSURE ANCHORAGE ATC IS AWARE OF EMERG. AS BACKUP ANCHORAGE ATC DURG NON OPS HR SHALL NOTIFY EARECKSON RADIO ON 907-392-3505/3606 OF ALL ACFT EMERG. DURG NON OPS HR EARECKSON AIR STN RQR 30 MIN PN WHEN PSBL.
A110-45USAF INSTALLATION; CLSD TO CIV OPS. MIL/CIV DECLARED EMERG & IN DISTRESS WILL BE HONORED.
A110-46WX/AFLD OPS - D317-392-4005/C907-392-4005.
A110-47COORD ETOP OR AFLD CRITERIA - D317-392-3362/C907-392-3362.
A110-48UNCTLD ARPT; PRAC APCH, FLEET SVC, CUSTOMS & ACFT MAINT NA. DEICER SAE AMS 1424P TYPE 1 AVBL WITH 1 HR PN.
A110-49CIVIL ACFT LNDG PERMIT REQ 30 DAYS BFR LDG - D317-552-5282/C907-552-5282.
A110-50MANNED OBS SUPPLEMENTED BY ASOS 1000-0200Z, MON-SAT, NO SUN OR HOL.
A110-51RCR/RSC SAME AS ATNDD HR. FICON & RWY COND CODE NOT RPRTD.
A110-52MANDATORY & INFO SIGNS NOT INSTALLED.
A110-53C-130/L-100 WT RSTRD MAX 137 KIPS ARR OR DEP VIA TWY B; GTR THAN 137 KIPS USE TWY C & M.
A110-9CTN: ILLUSION OF HGT & USBL RWY WID PSBL LNDG DURG LOW VSBY & AT NIGHT. NON STD VFR PAT RWY 10.
A14CHRISTINA BOLLE
A16D317-392-3362/C907-392-3362.
A17-H10800-1700.
A26ARFF INDEX 7C
A30-10/28CTN: 200 FT TURN RADIUS MAX; TOW BAR & PSNL FOR LRG COML ACFT RQRG GTR THAN 200 FT TURNAROUND NA. NO OVERRUN; SHEER DROP OFFS.
A32-10/28WITH 25 FT SHOULDERS.
A81-APTACTVT ALSF1 RWY 10; SALSF RWY 28; HIRL RWY 10/28 - CTAF. PAPI RWY 10 & 28 OPR CONSLY.
E100352.050 UHF.
E60-10_BAK-12MB100 (B) 1850 FT UNUSBL.
E60-28_BAK-12BAK12(B) 4450 FT.
E79CUSTOMS UNAVBL.
EARECKSON AS (ICAO: PASY, IATA: SYA) is a private airport located in SHEMYA, AK, US.
