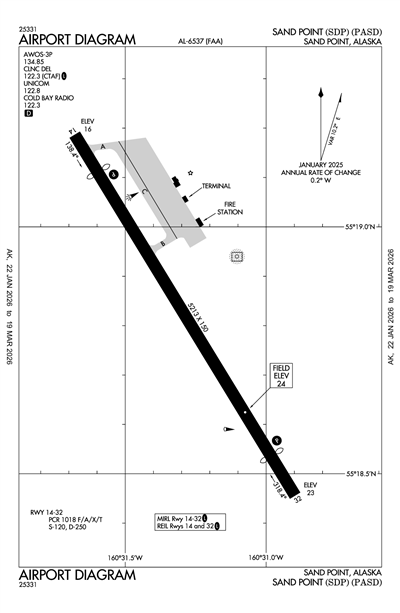

SAND POINT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PASD
ICAO PASDIATA SDPLocal SDP
SAND POINT
PublicPUB

2 miles SW of SAND POINT, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
55° 18' 49"N 160° 31' 17"W
Elevation
24' MSL
Pattern Alt
1024' MSL
Mag Variation
11°E
Declination
11°E
Fuel
JET A
FSS
COLD BAY (CDB)
Sectional
COLD BAY
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PASD VFR
11:56 PM AKST
Clear
10sm
18°F
11°F
29.66"Hg
340° 16kts
AO2 SLP046 T10781117 410501083 58012 FZRANO $
METAR PASD 040856Z AUTO 34016KT 10SM CLR M08/M12 A2966 RMK AO2 SLP046 T10781117 410501083 58012 FZRANO $
+ Add Your Business

PASD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 134.85
(907) 560-7611

Common

CTAF 122.3
ACTVT REIL RWY 14 & 32; PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF.
UNICOM 122.8

Center

ANCHORAGE CENTER 125.35
LOW, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 125.35/346.3 (SAND POINT RCAG).

Flight Service

Flight Service 122.3
(CDB), COMMUNICATIONS PRVDD BY COLD BAY FSS ON FREQ 122.3 (SAND POINT RCO).

Terminal Area Forecast

PASD
Tue, 3/3 8:30 PM AKST
Tue, 3/3 9:00 PM AKST - Wed, 3/4 9:00 PM AKST
VFR
9:00 PM AKST - 1:00 PM AKST
Sky Clear
6sm
340° 10kts
VFR
1:00 PM AKST - 6:00 PM AKST
Overcast 3,500'
Scattered 2,500'
6sm
340° 12kts
MVFR
6:00 PM AKST - 9:00 PM AKST
Light Snow and Mist
Overcast 2,500'
Scattered 1,500'
5sm
360° 8kts
TAF PASD 040530Z 0406/0506 34010KT P6SM SKC
   FM042200 34012KT P6SM SCT025 OVC035
   FM050300 36008KT 5SM -SN BR SCT015 OVC025
PASD
EffectiveExpiresCategoryNOTAM
Domestic
2/3/26
1540Z
Runway!SDP 02/005 SDP RWY 32 RWY END ID LGT U/S 2602031540-2604251500EST
No
JAN - DEC MON - SAT 0800-1700
ALASKA DOT&PF SOUTHCOAST REGION
P.O. BOX 112506
JUNEAU, AK 99811
Phone: 907-465-1763
HAROLD KREMER
BOX 97
COLD BAY, AK 99571
Phone: 907-386-6106
COLD BAY FSS (CDB)
Toll Free: 1-800-478-7250
SDP
--
ACTVT REIL RWY 14 & 32; PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF.
ON CONSLY.
N/A
Yes - Lighted
Yes
Yes
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 14/32

5213 ft. x 150 ft.
ASPH
Good
GRVD
MED

120,000lbs
250,000lbs
--
--
  Runway 14 Runway 32
True Heading 148°328°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 55° 19' 11"N 55° 18' 27"N
Longitude 160° 31' 41"W 160° 30' 54"W
Elevation 16' 23'
Threshold Crossing Height 31 ft. AGL 36 ft. AGL
Visual Glide Path Angle 3.6° 3.6°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BIRDS INVOF ARPT.
A110-10SAND POINT WX 0800-1800 - 132.05 OR 907-383-2403.
A110-280-320 FT CLIFF E SIDE OF RWY; EXP TURB ON APCH RWY 32.
A110-9SAND LRGR GRADATION THAN RECMD/SEE AC150/5200-30.
A24OVR 6000 LB.
A26CLSD TO ACR MORE THAN 30 PAX SEATS EXC PPR IN WRITING - AMGR.
A39-14/32PCR VALUE: 1018/F/A/X/T
A70-A0800-2000 - 907-383-2026; AFT HR CALL OUT FEE.
A81-APTACTVT REIL RWY 14 & 32; PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF.
A81-BCNON CONSLY.
SAND POINT (ICAO: PASD, IATA: SDP) is a public airport located in SAND POINT, AK, US.
