PASA
SAVOONGA
Public
PUB
1 miles SW of SAVOONGA, AK
View on
Map
Status
Operational
Coordinates
63° 41' 11"N
170° 29' 35"W
Elevation
59' MSL
Pattern Alt
1059' MSL
Mag Variation
05E
Fuel
None Listed
FSS
NOME (OME)
Sectional
BETHEL
ARTCC
ANCHORAGE (ZAN)
Data Effective
10/31/24-11/28/24
PAGM (34nm)
MVFR
2:56 AM AKST
RAW
Broken 2,500'
Viz
10sm
Temp
32°F
Dew
26°F
Pres
29.53"Hg
Wind
070° 6kts
RMK
AO2 SLP004 T00001033 10006 20000 51005 FZRANO
PAGM 091156Z AUTO 07006KT 10SM BKN025 00/M03 A2953 RMK AO2 SLP004 T00001033 10006 20000 51005 FZRANO
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
PASA FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.7
AWOS-3P
AWOS-3P
907-984-6429
121.3

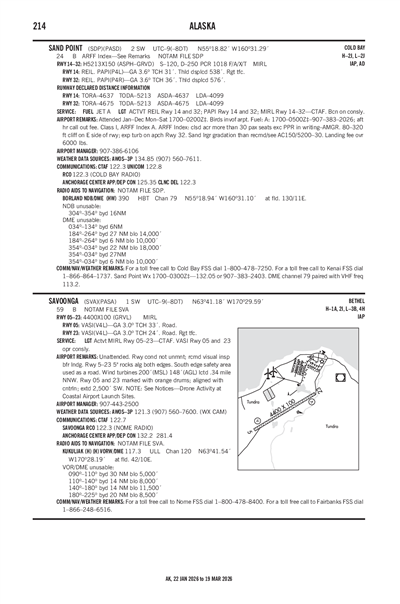

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 23
RNAV (GPS) Y RWY 05
VOR/DME RWY 23
Terminal Area Forecast
No TAF is available for this location.
PASA
Domestic
10/22/24
0107Z
!SVA 10/007 SVA SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2410220107-2412071500EST
FDC
10/9/24
1523Z
!FDC 4/7038 SVA IAP SAVOONGA, SAVOONGA, AK.
RNAV (GPS) RWY 23, AMDT 2...
DELETE NOTE: FOR UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV NA
BELOW -22°C OR ABOVE 54°C.
DELETE LPV DA 308/HAT 250 ALL CATS. DELETE LNAV/VNAV DA 408/HAT
350 ALL CATS.
THIS IS RNAV (GPS) RWY 23, AMDT 2A. 2410091523-PERM
7/11/24
0901Z
!FDC 4/9936 SVA IAP SAVOONGA, SAVOONGA, AK.
RNAV (GPS) RWY 23, AMDT 2...
LPV DA NA, LNAV/VNAV DA NA.
2407110901-2607111918EST
ATC Tower
No
Attendance
UNATNDD
Owner
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99709
Phone: 907-451-2200
Manager
GEORGE KOST
PO BOX 1048
NOME, AK 99762
Phone: 907-443-2500
FSS
NOME FSS (OME)
Toll Free: 1-800-478-8400
NOTAM
SVA
Light Schedule
--
Lights
ACTVT MIRL RY 05/23 - CTAF. VASI RYS 05 & 23 OPER CONTINUOUSLY .
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
None
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 05/23
Dimensions
4400 ft. x 100 ft.
Surface Type
GRAVEL
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 05
Runway 23
True Heading
60°
240°
Traffic Pattern
Left
Right
Markings
NSTD
NSTD
Markings Condition
Latitude
63° 40' 60"N
63° 41' 22"N
Longitude
170° 30' 17"W
170° 28' 53"W
Elevation
59'
55'
Threshold Crossing Height
33 ft. AGL
24 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
V4L
V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3
SOUTH EDGE SAFETY AREA USED AS A ROAD.
A110-4
RY CONDITION NOT MONITORED; RECOMMEND VISUAL INSPECTIONS PRIOR TO LANDING.
A110-5
WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-6
WIND TURBINES 200 FT (MSL) 148 FT (AGL) LOCATED .34 MILES NNW OF MIDPOINT RY 05/23.
SAVOONGA (ICAO: PASA, IATA: SVA) is a public airport located in SAVOONGA, AK.
