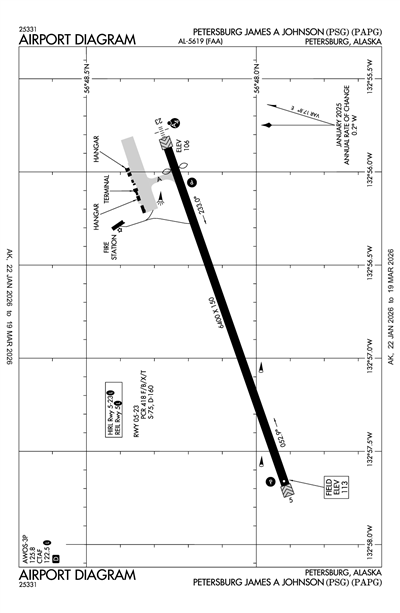

PETERSBURG JAMES A JOHNSON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAPG
ICAO PAPGIATA PSGLocal PSG
PETERSBURG JAMES A JOHNSON
PublicPUB

1 miles SE of PETERSBURG, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
56° 48' 05"N 132° 56' 46"W
Elevation
113' MSL
Pattern Alt
1113' MSL
Mag Variation
18°E
Declination
21°E
Fuel
JET A, 100
FSS
SITKA (SIT)
Sectional
JUNEAU
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PAPG MVFR
6:56 PM AKST
Light Rain and Snow
Overcast 1,700'
10sm
33°F
32°F
29.44"Hg
280° 5kts
AO2 SLP974 P0001 T00060000 $
METAR PAPG 040356Z 28005KT 10SM -RASN OVC017 01/00 A2944 RMK AO2 SLP974 P0001 T00060000 $
+ Add Your Business

PAPG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 125.8
(907) 772-4504

Common

CTAF 122.5
ACTVT MALSF RWY 23; REIL RWY 05; PAPI RWY 05 & 23; HIRL RWY 05/23 - CTAF.

Center

ANCHORAGE CENTER 118.0
LOW, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQ 118.0 (LEVEL ISLAND RCAG).

Flight Service

Flight Service 122.35
(SIT), COMMUNICATIONS PRVDD BY SITKA FSS ON FREQ 122.35 (PETERSBURG RCO).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

PAPG
Tue, 3/3 2:32 PM AKST
Tue, 3/3 3:00 PM AKST - Wed, 3/4 3:00 PM AKST
MVFR
3:00 PM AKST - 3:00 AM AKST
Light Rain and Snow
Overcast 2,000'
Scattered 500'
5sm
VRB° 4kts
MVFR
3:00 AM AKST - 9:00 AM AKST
Light Rain
Overcast 1,500'
Few 500'
6sm
VRB° 5kts
MVFR
9:00 AM AKST - 3:00 PM AKST
Light Rain and Snow
Overcast 1,500'
5sm
200° 5kts
TAF PAPG 032332Z 0400/0424 VRB04KT 5SM -RASN SCT005 OVC020
   FM041200 VRB05KT 6SM -RA FEW005 OVC015 WS020/18040KT
   FM041800 20005KT 5SM -RASN OVC015 AMD LTD TO CLD VIS AND WIND 0406/0415
PAPG
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
2100Z
2/26/26
0200Z
!PSG 02/214 PSG NAV LOC TYPE DIRECTIONAL AID LOC/DME U/S 2602252100-2602260200
2/24/26
2303Z
2/25/26
2303Z
!PSG 02/217 PSG APRON ALL FICON 1/4IN DRY SN OBS AT 2602242303. 2602242303-2602252303
2/24/26
2302Z
2/25/26
2302Z
!PSG 02/216 PSG TWY ALL FICON 1/4IN DRY SN OBS AT 2602242302. 2602242302-2602252302
2/24/26
2302Z
2/25/26
2302Z
Runway!PSG 02/215 PSG RWY 05 FICON 5/5/5 100 PCT 1/8IN DRY SN OBS AT 2602242302. 2602242302-2602252302
1/31/26
1434Z
7/31/26
1200Z
Runway!PSG 01/387 PSG RWY 05/23 SFC MARKINGS FADED 2601311434-2607311200
1/31/26
1428Z
3/31/26
1200Z
Runway!PSG 01/386 PSG RWY 05 4000FT DIST REMAINING SIGN LGT U/S
2601311428-2603311200
1/31/26
1427Z
3/31/26
1200Z
Runway!PSG 01/385 PSG RWY 23 2000FT DIST REMAINING SIGN AT RWY 23 LGT U/S 2601311427-2603311200
FDC
9/25/25
2034Z
5/7/26
2034Z
!FDC 5/0684 PSG ODP PETERSBURG JAMES A JOHNSON, PETERSBURG, AK.
PETERSBURG TWO DEPARTURE ...
TAKEOFF RUNWAY 5 NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
ALL OTHER DATA REMAINS AS PUBLISHED,
LVD VOR OUT OF SERVICE. 2509252034-2605072034EST
9/25/25
2034Z
!FDC 5/0683 PSG IAP PETERSBURG JAMES A JOHNSON, PETERSBURG, AK.
LDA-D, AMDT 7B...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LVD VOR OUT OF SERVICE. 2509252034-2605072034EST
No
APR-SEP 0630-1630
OCT-MAR 0500-1600
ALASKA DOT&PF SOUTHCOAST REGION
6860 GLACIER HWY
JUNEAU, AK 99801
Phone: 907-465-1779
IVAR ENGE
P.O. BOX 1108
PETERSBURG, AK 99811
Phone: 907-772-4624
SITKA FSS (SIT)
Toll Free: 1-800-478-6300
PSG
--
ACTVT MALSF RWY 23; REIL RWY 05; PAPI RWY 05 & 23; HIRL RWY 05/23 - CTAF.
N/A
Yes - Lighted
Yes
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Cargo Handling

Runway 05/23

6400 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

75,000lbs
160,000lbs
--
--
  Runway 05 Runway 23
True Heading 71°251°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 56° 47' 55"N 56° 48' 16"N
Longitude 132° 57' 41"W 132° 55' 52"W
Elevation 113' 106'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights Yes No
A110-11ARPT SAND LRGR GRADATION THAN FAA RCMDD/SEE AC150/5200-30.
A110-12CARGO OPS OVER 100000 LB 24 HR PPR - AMGR.
A110-13WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-14COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -10C.
A110-2BIRDS & WILDLIFE ON & INVOF ARPT.
A110-4MAINT DUTY HR OCT-MAR 0500-1600; APR-SEP 0600-1630.
A110-6PAEW ON RWY. RCMND VISUAL INSP BFR USE. CTC FSS FOR NOTAM.
A110-8PAJA ON RWY, TWY OR PRKG APRON NA.
A26ARFF SVC AVBL DURG SKED ACR OPS. CLSD TO ACR OPS MORE THAN 30 PAX SEATS; EXC PPR IN WRITING; AMGR DOT/PF P.O. BOX 1108 PETERSBURG AK 99833.
A30A-23ROAD 1500 FT FM THR; CLSD TO TAX.
A39-05/23PCR VALUE: 418/F/B/X/T
A43-05PAPI DOES NOT PRVD OBSTN CLNC BYD 2.0 NM FM THR.
A70-100907-772-4780.
A70-A907-772-4780 OR 907-518-0651.
A81-APTACTVT MALSF RWY 23; REIL RWY 05; PAPI RWY 05 & 23; HIRL RWY 05/23 - CTAF.
PETERSBURG JAMES A JOHNSON (ICAO: PAPG, IATA: PSG) is a public airport located in PETERSBURG, AK, US.
