PAOT
RALPH WIEN MEML
PublicPUB

1 miles S of KOTZEBUE, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
66° 53' 05"N 162° 35' 53"W
15' MSL
1015' MSL
11E
JET A, 100
KOTZEBUE (OTZ)
NOME
ANCHORAGE (ZAN)
7/11/24-8/8/24
PAOT MVFR
2:53 AM AKDT
Overcast 1,200'
10sm
40°F
38°F
29.85"Hg
290° 17kts
AO2 SLP107 T00440033 TSNO
PAOT 191053Z AUTO 29017KT 10SM OVC012 04/03 A2985 RMK AO2 SLP107 T00440033 TSNO
Add Your Business

PAOT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 123.6

ASOS

ASOS
907-442-2279
 135.45

Other

AFIS
 135.45

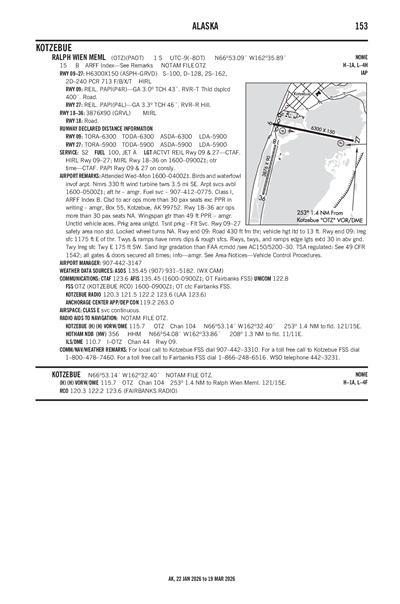

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PAOT
Wed, 9/18 9:32 PM AKDT
Wed, 9/18 10:00 PM AKDT - Thu, 9/19 10:00 PM AKDT
MVFR
10:00 PM AKDT - 6:00 AM AKDT
Showers in vicinity
Broken 1,500'
6sm
290° 13kts
MVFR
6:00 AM AKDT - 3:00 PM AKDT
Showers in vicinity
Overcast 2,500'
6sm
280° 9kts
VFR
3:00 PM AKDT - 10:00 PM AKDT
Overcast 5,000'
6sm
260° 7kts
PAOT 190532Z 1906/2006 29013KT P6SM VCSH BKN015
   FM191400 28009KT P6SM VCSH OVC025
   FM192300 26007KT P6SM OVC050
PAOT
Domestic
9/17/241518Z !OTZ 09/064 OTZ APRON ALL FICON WET OBS AT 2409171518. 2409171518-2409181518
9/17/241518Z !OTZ 09/063 OTZ TWY ALL FICON WET OBS AT 2409171518. 2409171518-2409181518
9/17/241516Z !OTZ 09/062 OTZ RWY 36 FICON 100 PCT WET OBS AT 2409171516. 2409171516-2409181516
9/17/241516Z !OTZ 09/061 OTZ RWY 18 FICON 100 PCT WET OBS AT 2409171516. 2409171516-2409181516
9/17/241515Z !OTZ 09/060 OTZ RWY 27 FICON 5/5/5 100 PCT WET OBS AT 2409171515. 2409171515-2409181515
8/29/242211Z !OTZ 08/176 OTZ RWY 09 RWY END ID LGT U/S 2408292211-2410271500
8/23/240316Z !OTZ 08/132 OTZ OBST TOWER LGT (ASR UNKNOWN) 669013.00N1625644.00W (1.3NM NE OTZ) (150FT AGL) U/S 2408230316-2508240316
FDC
8/30/241903Z !FDC 4/8351 OTZ IAP RALPH WIEN MEML, KOTZEBUE, AK.
ILS OR LOC RWY 9, AMDT 1A...
VOR RWY 27, ORIG-B...
VOR RWY 9, ORIG-D...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
OTZ VOR/DME UNMONITORED. 2408301903-2409301903EST
8/23/241652Z !FDC 4/4899 OTZ IAP RALPH WIEN MEML, KOTZEBUE, AK.
ILS OR LOC RWY 9, AMDT 1A...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
OTZ VOR OUT OF SERVICE AND HHM NDB OUT OF SERVICE.
2408231652-2409231652EST
8/22/241432Z !FDC 4/4167 OTZ IAP RALPH WIEN MEML, KOTZEBUE, AK.
VOR RWY 9, ORIG-D...
PLANVIEW NOTE: ARRIVALS ON B2, B3, B27, G18, AND V506 DESCEND TO 4300 IN HHM NDB HOLDING PATTERN PRIOR TO COMMENCING APPROACH NA,
HHM NDB OUT OF SERVICE. 2408221432-2410011500EST
7/11/240901Z !FDC 4/0058 OTZ IAP RALPH WIEN MEML, KOTZEBUE, AK.
VOR RWY 9, ORIG-D...
TERMINAL ROUTE: (IAF) OMPAE/OTZ 12.00 DME CCW TO (IAF) HUPUG/OTZ 12.00 DME NA.
2407110901-2607102146EST
7/11/240901Z !FDC 4/0057 OTZ IAP RALPH WIEN MEML, KOTZEBUE, AK.
ILS OR LOC RWY 9, AMDT 1A...
TERMINAL ROUTE: (IAF) OMPAE/OTZ 12.00 DME CCW TO (IAF) HUPUG/OTZ 12.00 DME NA.
2407110901-2607102146EST
4/20/231103Z !FDC 3/4619 OTZ IAP RALPH WIEN MEML, KOTZEBUE, AK.
ILS OR LOC RWY 9, AMDT 1A...
VOR RWY 9, ORIG-D...
EQUIPMENT REQUIREMENTS NOTE: RNP APCH-GPS FROM FIWWI.
2304201103-2504201103EST
No
WED-MON 0700-2359
TUE 0700-2359
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99701
Phone: 907-443-3411
ALVIN WERNEKE
BOX 55
KOTZEBUE, AK 99752
Phone: 907-442-3147
KOTZEBUE FSS (OTZ)
Toll Free: 1-800-478-7460
OTZ
--
ACTVT REIL RWY 09 & 27 - CTAF. HIRL RWY 09/27; MIRL RWY 18/36 ON 0700-2400; OTR TIME - CTAF. PAPI RWY 09 & 27 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
37
6
0
0
0
0
Minor
Minor
None
None
Cargo Handling

Runway 09/27

6300 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
91 /F/B/X/T
100,000lbs
128,000lbs
240,000lbs
--
  Runway 09 Runway 27
True Heading 102°282°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition FAIR FAIR
Latitude 66° 53' 22"N 66° 53' 10"N
Longitude 162° 36' 39"W 162° 34' 04"W
Elevation 13' 15'
Threshold Crossing Height 43 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3.3°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18/36

3876 ft. x 90 ft.
GRVL
Fair
NONE
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 194°14°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 66° 53' 06"N 66° 52' 29"N
Longitude 162° 36' 34"W 162° 36' 57"W
Elevation 11' 11'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-11NMRS 330 FT WIND TURBINE TWRS 3.5 MI SE.
A110-12WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-18RAVENS INVOF ARPT.
A110-20TSA REGULATED: SEE 49 CFR 1542; ALL GATES & DOORS SECURED ALL TIMES; INFO - AMGR.
A110-22IREG SFC TWY E 175 FT SW.
A110-3ARPT SVCS AVBL 0700-2000; AFT HR - AMGR.
A110-5PRKG AREA UNLGTD. TSNT PRKG - FLT SVC.
A110-7TWYS & RAMPS HAVE NMRS DIPS & ROUGH SFCS.
A110-8SAND LRGR GRADATION THAN FAA RCMDD/SEE AC150/5200-30.
RALPH WIEN MEML (ICAO: PAOT, IATA: OTZ) is a public airport located in KOTZEBUE, AK.
