PANW
NEW STUYAHOK
PublicPUB

1 miles W of NEW STUYAHOK, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
59° 27' 05"N 157° 22' 23"W
371' MSL
1371' MSL
16E
None Listed
DILLINGHAM (DLG)
KODIAK
ANCHORAGE (ZAN)
10/31/24-11/28/24
PANW LIFR
2:56 AM AKST
Mist
Overcast 300'
1.25sm
27°F
26°F
29.41"Hg
020° 4kts
AO2 UPB15E38SNE15B38E49 SLP968 P0000 60000 T10281033 11028 21039 56010 FZRANO
PANW 091156Z AUTO 02004KT 1 1/4SM BR OVC003 M03/M03 A2941 RMK AO2 UPB15E38SNE15B38E49 SLP968 P0000 60000 T10281033 11028 21039 56010 FZRANO
Add Your Business

PANW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3P

AWOS-3P
907-693-3086
 120.275

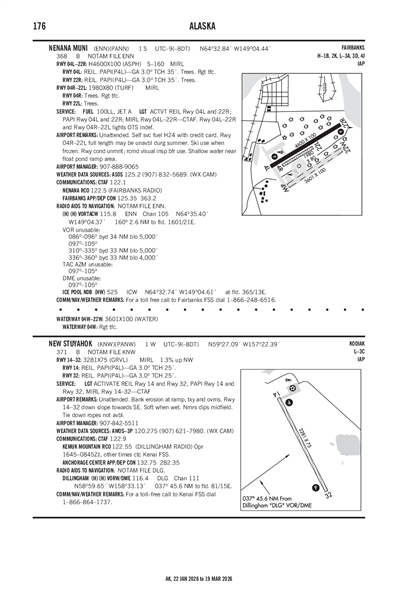

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PADL (43nm)
Sat, 11/9 2:22 AM AKST
Sat, 11/9 3:00 AM AKST - Sun, 11/10 3:00 AM AKST
IFR
3:00 AM AKST - 8:00 AM AKST
Mist
Overcast 1,500'
Broken 500'
3sm
010° 7kts
MVFR
8:00 AM AKST - 12:00 PM AKST
Overcast 6,000'
Broken 1,500'
6sm
020° 12kts
MVFR
12:00 PM AKST - 4:00 PM AKST
Overcast 3,000'
6sm
020° 14kts
Gusts 26kts
MVFR
4:00 PM AKST - 11:00 PM AKST
Light Snow
Overcast 3,000'
6sm
360° 16kts
Gusts 26kts
VFR
11:00 PM AKST - 3:00 AM AKST
Overcast 10,000'
6sm
360° 12kts
PADL 091122Z 0912/1012 01007KT 3SM BR BKN005 OVC015
   FM091700 02012KT P6SM BKN015 OVC060
   FM092100 02014G26KT P6SM OVC030
   FM100100 36016G26KT 6SM -SN OVC030
   FM100800 36012KT P6SM OVC100
PANW
Domestic
10/22/241611Z !KNW 10/006 KNW RWY 32 RWY END ID LGT U/S 2410221611-2411301500EST
10/22/241610Z !KNW 10/005 KNW RWY 14 PAPI U/S 2410221610-2411302359EST
10/22/241608Z !KNW 10/004 KNW RWY 32 PAPI U/S 2410221608-2411302359
10/22/241607Z !KNW 10/003 KNW RWY 14 RWY END ID LGT U/S 2410221607-2411302359
No
UNATNDD
ALASKA DOT&PF CENTRAL REGION
PO BOX 196900
ANCHORAGE, AK 99519-6900
Phone: 907-269-0749
KEVIN HARDIN
BOX 250
DILLINGHAM, AK 99576
Phone: 907-842-5511
DILLINGHAM FSS (DLG)
Toll Free: LC842-5275
KNW
--
ACTVT MIRL RY 14/32 AND PAPI & REIL RYS 14 & 32 - CTAF.
ACTVT ROTG BCN - CTAF.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 14/32

3281 ft. x 75 ft.
GRVL
Good
NONE
MED

--
--
--
--
  Runway 14 Runway 32
True Heading 153°333°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 59° 27' 20"N 59° 26' 51"N
Longitude 157° 22' 38"W 157° 22' 09"W
Elevation 371' 327'
Threshold Crossing Height 25 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-10WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-11RY SLOPES DOWN TOWARD SOUTHEAST END OF RY.
A110-12BANKS ERODING AT RAMP, TAXIWAY AND RUNWAY OVERRUNS.
A110-13RWY SOFT WHEN WET.
A110-14NUMEROUS DIPS AT MIDFIELD
NEW STUYAHOK (ICAO: PANW, IATA: KNW) is a public airport located in NEW STUYAHOK, AK.
