PANO

NONDALTON

PublicPUB

1 miles NNE of NONDALTON, AK

View on Map

Status

Operational

Coordinates

59° 58' 49"N 154° 50' 21"W

Elevation

314' MSL

Pattern Alt

1314' MSL

Mag Variation

13E

Fuel

None Listed

FSS

ILIAMNA (ILI)

Sectional

KODIAK

ARTCC

ANCHORAGE (ZAN)

Data Effective

4/17/25-5/15/25

PAIL (14nm) VFR

1:53 PM AKST RAW

Clear

Viz

10sm

Temp

-19°F

Dew

-28°F

Pres

29.58"Hg

Wind

020° 13kts

Gusts 16kts

RMK

AO2 SLP026 T12831333

METAR PAIL 082253Z 02013G16KT 10SM CLR M28/M33 A2958 RMK AO2 SLP026 T12831333

Add Your Business

PANO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.

Your Information

Business

No frequencies available for this airport.

Terminal Area Forecast

PAIL (14nm)

RAW

Reported

Thu, 1/8 8:28 AM AKST

Valid

Thu, 1/8 9:00 AM AKST - Fri, 1/9 9:00 AM AKST

VFR

9:00 AM AKST - 9:00 AM AKST

Sky Clear

Viz

6sm

Wind

350° 11kts

TAF PAIL 081728Z 0818/0918 35011KT P6SM SKC AMD LTD TO VIS WX AND CLD

PANO

No NOTAM Available

ATC Tower

Attendance

UNATNDD

Owner

ALASKA DOT&PF SOUTHCOAST REGION
PO BOX 112506
JUNEAU, AK 99811-2506
Phone: 907-465-1779

Manager

TREFIM ANDREW
PO BOX 187
ILIAMMA 99606
Phone: 907-571-1261

FSS

ILIAMNA FSS (ILI)
Toll Free: LC571-1240

NOTAM

ILI

Light Schedule

Lights

ACTVT MIRL RY 02/20; PAPI & REIL RYS 02 & 20; WINDSOCK LGTS - CTAF.
ACTVT ROTG BCN - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Cargo Handling

Runway 02/20

Dimensions

2800 ft. x 75 ft.

Surface Type

GRAVEL

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 02	Runway 20
True Heading	38°	218°
Traffic Pattern	Right
Markings	NSTD	NSTD
Markings Condition
Latitude	59° 58' 38"N	59° 58' 60"N
Longitude	154° 50' 38"W	154° 50' 04"W
Elevation	305'	314'
Threshold Crossing Height	30 ft. AGL	28 ft. AGL
Visual Glide Path Angle	3.5°	3.5°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	RY COND NOT MONITORED; RCMD VISUAL INSPECTION PRIOR TO USING.
A110-2	WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-3	STRONG AND VARIABLE CROSSWINDS AT OR NEAR THE RWY SFC.
A110-5	WATER TANK, 55 AGL/431 AMSL, LOCATED 2,129 FEET FROM DEPARTURE END OF RUNWAY 20, 398 FEET RIGHT OF CENTERLINE; ANTENNA TOWER, 45 AGL/421 AMSL, LOCATED 2,032 FEET FROM DEPARTURE END OF RUNWAY 20, 420 FEET RIGHT OF CENTERLINE.
A110-6	COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -13C.
A40-02/20	RY 02/20 EDGE LGTS WHITE FULL LENGTH OF RY.
A42-02	RY 02/20 EDGE MARKED WITH REFLECTIVE CONES. THLDS MARKED WITH REFLECTIVE CONES AND THLD PANELS.
A43-02	PAPI UNUSBL BYD 4 DEG L OF CNTRLN.
A81-APT	ACTVT MIRL RY 02/20; PAPI & REIL RYS 02 & 20; WINDSOCK LGTS - CTAF.
A81-BCN	ACTVT ROTG BCN - CTAF.

NONDALTON (ICAO: PANO, IATA: 5NN) is a public airport located in NONDALTON, AK.

iFlightPlanner

PANO

NONDALTON

PublicPUB

PANO FBOs

Send Message to Airport Company

Enter your information and message below.

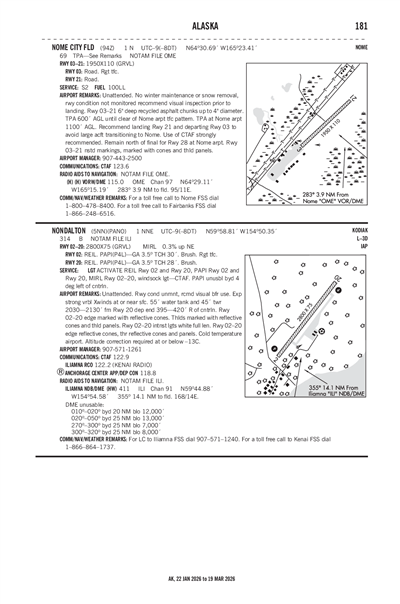

FAA A/FD Pages
