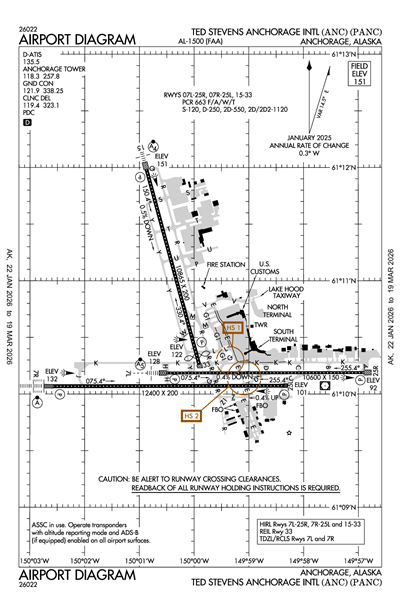

TED STEVENS ANCHORAGE INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PANC
ICAO PANCIATA ANCLocal ANC
TED STEVENS ANCHORAGE INTL
PublicPUB

4 miles SW of ANCHORAGE, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
61° 10' 27"N 149° 59' 53"W
Elevation
151' MSL
Pattern Alt
1151' MSL
Mag Variation
15°E
Declination
16°E
Fuel
JET A, JET A-1, 100LL, 100
FSS
KENAI (ENA)
Sectional
ANCHORAGE
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PANC VFR
4:53 PM AKST
Clear
10sm
15°F
-10°F
29.48"Hg
330° 3kts
AO2 SLP988 T10941233
METAR PANC 040153Z 33003KT 10SM CLR M09/M23 A2948 RMK AO2 SLP988 T10941233
+ Add Your Business

PANC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 135.5
(907) 243-2847
ASOS (907) 271-5278

Common

UNICOM 122.95

Clearance

Clearance Delivery 119.4
Clearance Delivery 128.65
Secondary

Ground

ANCHORAGE GROUND 121.9

Tower

ANCHORAGE TOWER 118.3

Arrival

AMOTT STAR 126.4
NEELL STAR 126.4
YESKA STAR 126.4

Approach

ANCHORAGE APPROACH 118.6
250-330 TED ABV 1500 FT
ANCHORAGE APPROACH 118.6
Initial Contact - 331-045 TED ABV 2500 FT
ANCHORAGE APPROACH 119.1
331-045 TED 2500 FT & BLW
ANCHORAGE APPROACH 119.1
250-330 TED 1500 FT & BLW
ANCHORAGE APPROACH 123.8
206-249 TED
ANCHORAGE APPROACH 126.4
046-205 TED
ANCHORAGE APPROACH 134.1
Secondary

Departure

ANCHORAGE DEPARTURE 118.6
Initial Contact - 331-045 TED ABV 2500 FT
ANCHORAGE DEPARTURE 118.6
250-330 TED ABV 1500 FT
ANCHORAGE DEPARTURE 119.1
250-330 TED 1500 FT & BLW
ANCHORAGE DEPARTURE 119.1
331-045 TED 2500 FT & BLW
ANCHORAGE DEPARTURE 123.8
206-249 TED
ANCHORAGE DEPARTURE 126.4
046-205 TED
POTTER DP 126.4
TURNAGAIN DP 126.4

Flight Service

Flight Service 122.2
(ENA)

Emergency

Emergency 121.5

Other

CLASS C 118.6
250-330 TED ABV 1500 FT
CLASS C 118.6
331-045 TED ABV 2500 FT
CLASS C 119.1
250-330 TED 1500 FT & BLW
CLASS C 119.1
331-045 TED 2500 FT & BLW
CLASS C 123.8
206-249 TED
CLASS C 126.4
046-205 TED

Terminal Area Forecast

PANC
Tue, 3/3 2:21 PM AKST
Tue, 3/3 3:00 PM AKST - Wed, 3/4 9:00 PM AKST
VFR
3:00 PM AKST - 9:00 PM AKST
Sky Clear
6sm
010° 8kts
TAF PANC 032321Z 0400/0506 01008KT P6SM SKC
PANC
EffectiveExpiresCategoryNOTAM
Domestic
2/26/26
1900Z
2/26/26
2200Z
Runway!ANC 02/474 ANC RWY 33 RVRR U/S 2602261900-2602262200
2/26/26
1900Z
2/26/26
2200Z
Runway!ANC 02/473 ANC RWY 15 RVRT U/S 2602261900-2602262200
2/24/26
2348Z
2/25/26
2348Z
!ANC 02/472 ANC APRON ALL FICON PATCHY ICE AND PATCHY COMPACTED SN OBS AT 2602242348. 2602242348-2602252348
2/24/26
2347Z
2/25/26
2347Z
!ANC 02/471 ANC TWY ALL FICON PATCHY ICE AND WET OBS AT 2602242347. 2602242347-2602252347
2/23/26
1308Z
4/30/26
1530Z
!ANC 02/461 ANC TWY J IRREGULAR SFC 2602231308-2604301530
2/18/26
1540Z
3/19/26
1900Z
!ANC 02/394 ANC TWY G IN PAVEMENT RWY GUARD LGT AT RWY 07R/25L NOT STD 2602181540-2603191900
2/18/26
1535Z
3/19/26
1900Z
!ANC 02/393 ANC TWY H IN PAVEMENT RWY GUARD LGT BTN APCH END RWY 07L AND TWY K NOT STD 2602181535-2603191900
2/13/26
1301Z
!ANC 02/271 ANC TWY J STOP BAR LGT U/S 2602131301-2603312200EST
1/29/26
1152Z
7/31/26
2100Z
!ANC 01/770 ANC TWY E LOCATION SIGN BTN REMOTE APN SPOT R11 AND REMOTE APN SPOT R12 MISSING 2601291152-2607312100
1/20/26
2024Z
Runway!ANC 01/498 ANC RWY 15 SEQUENCED FLG LGT U/S 2601202024-2606151500EST
12/11/25
1503Z
5/31/26
2200Z
!ANC 12/228 ANC TWY Q, TWY R BTN ALASKA CARGO PORT RAMP AND TWY Q CLSD 2512111503-2605312200
FDC
10/28/25
1409Z
!FDC 5/7504 ANC IAP TED STEVENS ANCHORAGE INTL, ANCHORAGE, AK.
RNAV (GPS) RWY 7L, AMDT 3...
LNAV MDA 620/HAT 492 ALL CATS.
2510281409-2710282359EST
10/22/25
1455Z
!FDC 5/4674 ANC IAP TED STEVENS ANCHORAGE INTL, ANCHORAGE, AK.
RNAV (GPS) Y RWY 7R, AMDT 5...
LPV DA 369/HAT 237 ALL CATS.
2510221455-2710221454EST
10/20/25
1849Z
!FDC 5/3256 ANC IAP TED STEVENS ANCHORAGE INTL, ANCHORAGE, AK.
RNAV (GPS) RWY 15, AMDT 3...
LNAV/VNAV MDA 406/HAT 255 ALL CATS.
2510201849-2710202359EST
10/15/25
1304Z
!FDC 5/1068 ANC IAP TED STEVENS ANCHORAGE INTL, ANCHORAGE, AK.
RNAV (RNP) RWY 33, AMDT 1A...
RNP 0.11 DA 465/HAT 344 ALL CATS. RNP 0.20 DA 542/HAT 421 ALL CATS, VISIBILITY ALL CATS 1 1/4..
2510151304-2710151304EST
10/2/25
0901Z
10/2/26
0901Z
!FDC 5/2534 ANC STAR TED STEVENS ANCHORAGE INTL, ANCHORAGE,
AK..TAGER NINE ARRIVAL..MC GRATH TRANSITION (MCG.TAGER9) NOT AUTH
EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
MCG VOR R-102 UNUSABLE BEYOND 20NM.
2510020901-2610020901EST
9/29/25
1622Z
!FDC 5/2001 ANC IAP TED STEVENS ANCHORAGE INTL, ANCHORAGE, AK.
ILS OR LOC RWY 7L, AMDT 5...
S-LOC 7L VISIBILITY CATS C/D/E RVR 3500.
2509291622-2709301622EST
8/6/25
1858Z
!FDC 5/2149 ANC SID TED STEVENS ANCHORAGE INTL, ANCHORAGE, AK.
TURNAGAIN EIGHT DEPARTURE...
DEPARTURE PROCEDURE DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
ENA VOR 348-015 BEYOND 20NM UNUSABLE ALL ALTITUDES.
2508061858-2708081857EST
Yes
ALL
STATE OF ALASKA DOTPF
BOX 196960
ANCHORAGE, AK 99519
Phone: 907-266-2600
AARON DANIELSON
BOX 196960
ANCHORAGE, AK 99519
Phone: 907-266-2545
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
ANC
--
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Cargo Handling

Runway 07L/25R

10600 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 07L Runway 25R
True Heading 90°270°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 61° 10' 11"N 61° 10' 11"N
Longitude 150° 00' 30"W 149° 56' 54"W
Elevation 128' 92'
Threshold Crossing Height 63 ft. AGL 60 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 07R/25L

12400 ft. x 200 ft.
ASPH CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 07R Runway 25L
True Heading 90°270°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 61° 10' 04"N 61° 10' 04"N
Longitude 150° 02' 34"W 149° 58' 22"W
Elevation 132' 101'
Threshold Crossing Height 72 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights No

Runway 15/33

10865 ft. x 200 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 15 Runway 33
True Heading 165°345°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 61° 11' 59"N 61° 10' 16"N
Longitude 150° 00' 52"W 149° 59' 54"W
Elevation 151' 122'
Threshold Crossing Height 78 ft. AGL 60 ft. AGL
Visual Glide Path Angle 3.2° 3°
Visual Slope Indicator P4R P4R
Approach Lights MALSF
Centerline Lights Yes Yes
Runway End Identifier Lights Yes
A110-1BIRDS INVOF ARPT SPRING - FALL.
A110-17489 FT UNLGTD TWR 2.5 MI NE.
A110-2NON-RADIO NIGHT OPS NA; NON-PARROT OPS 1 HR PPR; NON-RADIO OPS PPR; MUST PRVD ETA & REMAIN WI 15 MIN - ATCT 907-271-2700 WKDAYS 0730-1600; AFT HR & HOL - FAA 907-271-5936.
A110-20PTNS OF TWY K BTN TWY H & J NOT VIS FM ATCT.
A110-25COMPASS CLBR PAD N/A.
A110-30R TURN OUT OF RAMP PRKG R-2 THRU R-4 NA.
A110-33FLT PLANNING IN ANCHORAGE BOWL AREA - RCO 122.55.
A110-34FAA RAMP PPR WITH ANC FIFO MON-FRI 0600-1430 - 135.85 OR 907-271-2414 OR AVN 405-954-9780.
A110-35ANCHORAGE WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV.
A110-43TWY V RSTRD TO 12500 LB OR LESS; SUBJECT TO JET BLAST W OF TWY E.
A110-45TSNT MIL PPR.
A110-53NOISE SENSITIVE AREA S & E; RWY 07R, 07L, 15 TBJT/TURBOFAN DEP EMPLOY FAA CLOSE IN NADP OR ICAO PROC B NADP WHEN SAFETY PERMITS; INFO - AMGR.
A110-55TWY V, SCTY GATE E OF TWY E - PCL 121.75 5 TIMES; TWY H-2, LAKESHORE TWY GATES - PCL 121.75 3 TIMES; IF INOP ALLOW 30 SEC RESET & NOTIFY LHD OPS - 907-266-2600.
A110-56PPR FOR GND TIME GTR THAN 4 HR AT ARPT CTL SPOTS; APVL REQ 48 HR PRIOR TO DEP FOR ANC - GATE MGMT 907 266-2633 OR EMAIL: DOT.AIA.OPS.GATEMANAGEMENT@ALASKA.GOV.
A110-57P RAMP PRKG SPOTS P1/2/3 JET BLAST HAZ; EXIT USING MIN THRUST REQ.
A110-58COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -21C.
A110-8WSO - 907-266-5105.
A30A-07RBACK TAX FM TWY J FOR DEP NA.
A30A-25L200 FT BLAST PAD.
A39-07L/25RPCR VALUE: 663/F/A/W/T
A39-07R/25LPCR VALUE: 663/F/A/W/T
A39-15/33PCR VALUE: 663/F/A/W/T
TED STEVENS ANCHORAGE INTL (ICAO: PANC, IATA: ANC) is a public airport located in ANCHORAGE, AK, US.
