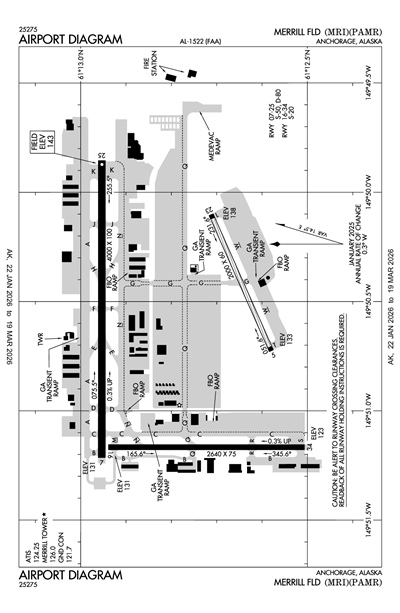

MERRILL FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAMR
ICAO PAMRIATA MRILocal MRI
MERRILL FLD
PublicPUB

2 miles E of ANCHORAGE, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
61° 12' 49"N 149° 50' 41"W
Elevation
143' MSL
Pattern Alt
1143' MSL
Mag Variation
15°E
Declination
19°E
Fuel
JET A, 100
FSS
KENAI (ENA)
Sectional
ANCHORAGE
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PAMR VFR
4:53 PM AKST
Clear
10sm
14°F
-8°F
29.48"Hg
170° 4kts
AO2 SLP986 T11001222
METAR PAMR 040153Z 17004KT 10SM CLR M10/M22 A2948 RMK AO2 SLP986 T11001222
+ Add Your Business

PAMR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.25
ASOS 124.25
(907) 271-5277

Common

CTAF 126.0
ACTVT REIL RWY 07, 16, 25, 34; MIRL RWY 07/25 & 16/34 - CTAF. PAPI RWY 07, 25 & 34; VASI RWY 16 OPR CONSLY.; WHEN ATCT CLSD CTC MERRILL WX - CTAF OR 271-4355.
UNICOM 122.95

Ground

MERRILL GROUND 121.7
0700-2200L.

Tower

MERRILL TOWER 126.0
0700-2200L.
MERRILL TOWER 127.55
0700-2200L., Secondary

Approach

ANCHORAGE APPROACH 119.1

Departure

ANCHORAGE DEPARTURE 119.1

Other

CLASS C 119.1

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

PAED (2nm)
Tue, 3/3 5:30 AM AKST
Tue, 3/3 5:00 AM AKST - Wed, 3/4 11:00 AM AKST
VFR
5:00 AM AKST - 11:00 AM AKST
Sky Clear
6sm
29.41"Hg
020° 3kts
TAF COR PAED 031430Z 0314/0420 02003KT 9999 SKC QNH2942INS TXM09/0323Z TNM28/0316Z
PAMR
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
0140Z
3/2/26
0300Z
!MRI 02/148 MRI OBST CRANE (ASN UNKNOWN) 611300N1494800E (2NM E MRI) (100FT AGL) DLY 1700-0300 2602250140-2603020300
2/25/26
0130Z
2/25/26
1700Z
!MRI 02/147 MRI AD AP SFC COND NOT REP 2602250130-2602251700
2/1/26
0239Z
Runway!MRI 02/003 MRI RWY RWY 07/25 CHANGED TO RWY 08/26 2602010239-PERM
1/14/26
1850Z
5/1/26
1530Z
Runway!MRI 01/119 MRI RWY 26 VASI U/S 2601141850-2605011530
1/14/26
1850Z
5/1/26
1530Z
Runway!MRI 01/118 MRI RWY 08 VASI U/S 2601141850-2605011530
1/6/26
0025Z
4/30/26
0130Z
!MRI 01/027 MRI APRON WHISKEY RAMP CLSD EXC SKI 2601060025-2604300130
1/6/26
0025Z
4/30/26
0130Z
Runway!MRI 01/026 MRI RWY 05/23 CLSD EXC SKI 2601060025-2604300130
12/17/25
1733Z
5/1/26
1530Z
Runway!MRI 12/098 MRI RWY 26 RWY END ID LGT U/S 2512171733-2605011530
12/17/25
1733Z
5/1/26
1530Z
Runway!MRI 12/097 MRI RWY 08 RWY END ID LGT U/S 2512171733-2605011530
2/4/25
2259Z
2/5/27
2359Z
!MRI 02/011 MRI OBST CRANE (ASN UNKNOWN) 6111N14948W (2NM SE MRI) (190FT AGL) FLAGGED AND LGTD 2502042259-2702052359
Yes
MON-FRI 0730-1730
MUNICIPALITY OF ANCHORAGE
800 MERRIL FIELD DR.
ANCHORAGE, AK 99501
Phone: 907-343-6303
EARL MALPASS
800 MERRIL FIELD DR
ANCHORAGE, AK 99501
Phone: 907-343-6301
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
MRI
--
ACTVT REIL RWY 07, 16, 25, 34; MIRL RWY 07/25 & 16/34 - CTAF. PAPI RWY 07, 25 & 34; VASI RWY 16 OPR CONSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 05/23

2000 ft. x 60 ft.
ASPH GRVL
Good
NONE


--
--
--
--
  Runway 05 Runway 23
True Heading 66°246°
Traffic Pattern
Markings
Markings Condition GOOD GOOD
Latitude 61° 12' 35"N 61° 12' 43"N
Longitude 149° 50' 43"W 149° 50' 05"W
Elevation 133' 138'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No

Runway 07/25

4000 ft. x 100 ft.
ASPH
Good
NONE
MED

50,000lbs
80,000lbs
--
--
  Runway 07 Runway 25
True Heading 90°270°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 61° 12' 57"N 61° 12' 57"N
Longitude 149° 51' 12"W 149° 49' 50"W
Elevation 131' 143'
Threshold Crossing Height 29 ft. AGL 29 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 16/34

2640 ft. x 75 ft.
ASPH
Fair
NONE
MED

20,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 180°0°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 61° 12' 56"N 61° 12' 30"N
Longitude 149° 51' 09"W 149° 51' 09"W
Elevation 131' 123'
Threshold Crossing Height 22 ft. AGL 21 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V2R P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-11WHEN ATCT CLSD CTC MERRILL WX - CTAF OR 271-4355.
A110-13FLT PLANNING IN ANCHORAGE BOWL AREA - RCO 122.55.
A110-19NONMOVEMENT AREA ACFT CTC GND CTL BFR TAX.
A110-20ANCHORAGE WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-23PTNS OF TWY C BTN TWY S & N AND PTNS OF TWY Q NOT VIS FM TWR.
A110-24TWY B SOUTH OF TWY M, TWY G BTN TWY N & RWY 05/23, TWY Q EAST OF TWY C & ALL SFCS SOUTH OF RWY 05/23 UNCTLD.
A110-25COMPASS ROSE AVBL WITH PRIOR CDN - ATCT.
A110-26ARR/DEP ROUTES - SEE AREA NOTICES; SPL NOTICE CARTEE ASP.
A110-28NOISE ABATEMENT; TGL OR PAT WORK NA 2200-0700.
A110-29ALASKA RGNL HOSPITAL 2OK HELI ON ARPT; SEE SEPARATE LISTING FOR INFO.
A110-4BIRDS & SEAGULLS ON & INVOF ARPT.
A110-5PPR OVR 12500 LB.
A110-6ALL RWY & TWY LGTS NONSTD HEIGHT.
A110-71-8 FT SNOW BERMS ADJ TO RWYS & TWYS DURG WINTER.
A30-05/23USED SEASONALLY AS SNOW RWY. RCMD SKI EQUIP ACFT USE TO MINIMIZE WHEEL RUTTING.
A33-05/23_SURFFIRST 60 FT PAVED; RMNG GRVL.
A81-APTACTVT REIL RWY 07, 16, 25, 34; MIRL RWY 07/25 & 16/34 - CTAF. PAPI RWY 07, 25 & 34; VASI RWY 16 OPR CONSLY.
E147TPA FOR ACFT 105 KTS OR LESS 900 FT MSL. ACFT GREATER THAN 105 KTS 1200 FT MSL.
MERRILL FLD (ICAO: PAMR, IATA: MRI) is a public airport located in ANCHORAGE, AK, US.
