No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

PALU
CAPE LISBURNE LRRS
PrivatePVT

0 miles N of CAPE LISBURNE, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
68° 52' 30"N 166° 06' 40"W
14' MSL
1014' MSL
07E
None Listed
KOTZEBUE (OTZ)
CAPE LISBURNE
ANCHORAGE (ZAN)
10/31/24-11/28/24
PALU VFR
2:55 AM AKST
Clear
10sm
17°F
10°F
29.74"Hg
130° 7kts
AO2 SLP072 T10841123 11063 21091 53004
PALU 091155Z AUTO 13007KT 070V140 10SM CLR M08/M12 A2974 RMK AO2 SLP072 T10841123 11063 21091 53004
Add Your Business

PALU FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 126.2

No communication frequencies available for this airport.

FAA A/FD Pages

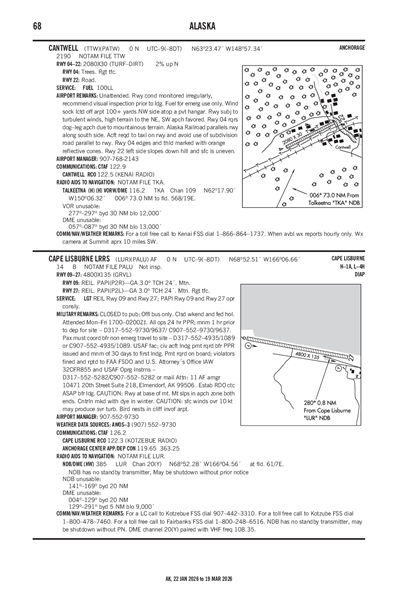

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
PALU
Domestic
1/1/242345Z !PALU 01/004 LUR APRON MAIN RAMP LGT ALL U/S 2401012345-PERM
1/1/242345Z !PALU 01/003 LUR RWY 09/27 REDL U/S 2401012345-PERM
1/1/242345Z !PALU 01/002 LUR RWY 09/27 RTHL U/S 2401012345-PERM
Military
9/26/241952Z !PALU V0694/24 LUR AERODROME INSTRUMENT APPROACH PROCEDURE LIMITED RNAV (GPS) RWY 27 LNAV MDA AND CIRCLING MINIMA: CAT AB 1360-2 1/2 1346 (1400-2 1/2); CAT C 1360-3 1346 (1400-3). 2409261952-2504302359
No
MON-FRI 0800-1700 CLSD WKEND & HOLS.
U.S. AIR FORCE
11 AIR FORCE ELMENDORF AFB
ANCHORAGE, AK 99506-2270
U.S. AIR FORCE
11 AIR FORCE ELMENDORF AFB
ELEMENDORF AFB, AK 99506-2270
Phone: 907-552-9730
KOTZEBUE FSS (OTZ)
Toll Free: 1-800-478-7460
PALU
--
ACTVT HIRL RY 09/27, TWY & RAMP EDGE LGTS, DISTANCE REMAINING LGTS - 126.2. PAPI AND REIL OPERATE 24 HRS.
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Cargo Handling

Runway 09/27

4800 ft. x 135 ft.

GRAVEL
NONE
HIGH

--
--
--
--
  Runway 09 Runway 27
True Heading 101°281°
Traffic Pattern Left Right
Markings NONE NONE
Markings Condition FAIR FAIR
Latitude 68° 52' 35"N 68° 52' 26"N
Longitude 166° 07' 44"W 166° 05' 36"W
Elevation 13' 14'
Threshold Crossing Height 24 ft. AGL 24 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-21CAUTION: RY LOCATED AT BASE OF STEEP MOUNTAIN. MOUNTAIN SLOPES IN APCH ZONE BOTH ENDS OF RY.
A110-22CAUTION: SURFACE WINDS OVER 10 KTS MAY PRODUCE SEVERE TURBULENCE.
A110-23CAUTION: NUMEROUS BIRD NESTS IN CLIFF INVOF ARPT.
A110-24ALL MILITARY, GOVERNMENT, AND CIVILIAN AIRCRAFT MUST OBTAIN A PPR NUMBER 24 HRS PRIOR TO SCHEDULED ARRIVAL BUT NO LATER THAN 1 HR PRIOR TO DEPARTURE FOR THE SITE. CONTACT SITE PERSONNEL AT DSN 317-552-9730/9637 OR C (907) 552-9730/9637.
A110-25ALL CIVIL ACFT OPERATORS MUST HAVE A CURRENT CIVIL AIRCRAFT LANDING PERMIT (CALP) BEFORE A PPR CAN BE ISSUED. IAW AIR FORCE INSTRUCTION 10-1001 (HTTP://STATIC.E-PUBLISHING.AF.MIL/PRODUCTION/1/AF_A3_5/PUBLICATION/AFI10-1001/AFI10-1001.PDF) AT LEAST 30 DAYS PRIOR TO FIRST INTENDED LANDING. FAILURE TO OBTAIN AND HAVE ONBOARD APPROVED CALP WILL RESULT IN FINES LEVIED AGAINST VIOLATORS AND REPORTS FORWARDED TO THE FAA FSDO AND U.S. ATTORNEY'S OFFICE IAW 32 CFR 855 AND USAF OPERATING INSTRUCTIONS.
A110-26CONTACT 611 ASUS/LRAM AT DSN: 317-552-1448/4176 OR COM: 907-552-1448/4176 FOR CALPS. MAIL CALP APPLICATION TO: ATTN: 11 AF AIRFIELD MANAGER 10471 20TH STREET SUITE 231, JBER, AK 99506. CIVIL AIRCRAFT LANDING PERMIT (CALP) CONTACT NUMBERS DSN: 317-552-1448/4176 OR COM: (907) 552-1448/4176, E-MAIL: AKLANDINGPERMITS@US.AF.MIL.
A110-27ESTABLISH RADIO CONTACT AS SOON AS POSSIBLE PRIOR TO LANDING.
A110-28PASSENGERS MUST COORDINATE ALL TRAVEL WITH ARS PROGRAM MANAGEMENT (DSN 317-552-4400/9630 OR C907-552-4400/9630) PRIOR TO ANY NON-EMERGENCY TRAVEL TO THE SITE.
A110-29AFLD CLSD WKENDS AND ALL FEDERAL HOL.
CAPE LISBURNE LRRS (ICAO: PALU, IATA: LUR) is a private airport located in CAPE LISBURNE, AK.
