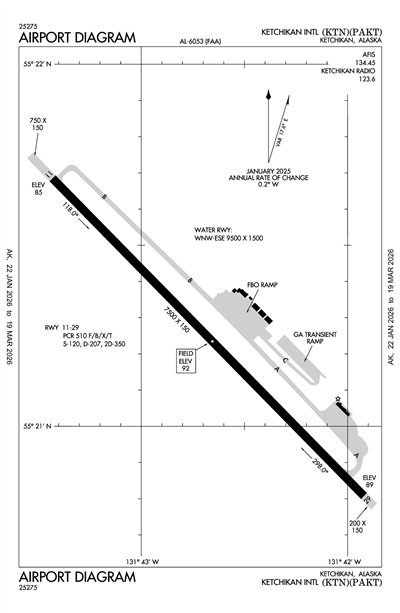

KETCHIKAN INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAKT
ICAO PAKTIATA KTNLocal KTN
KETCHIKAN INTL
PublicPUB

1 miles W of KETCHIKAN, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
55° 21' 15"N 131° 42' 40"W
Elevation
92' MSL
Pattern Alt
1092' MSL
Mag Variation
18°E
Declination
21°E
Fuel
JET A, 100LL
FSS
KETCHIKAN (KTN)
Sectional
KETCHIKAN
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PAKT MVFR
1:53 AM AKST
Mist
Overcast 3,200'
Scattered 2,700'
Scattered 1,600'
5sm
45°F
43°F
29.43"Hg
140° 21kts
Gusts 36kts
AO2 PK WND 14036/1051 SLP966 T00720061 PWINO TSNO $
METAR PAKT 041053Z AUTO 14021G36KT 5SM BR SCT016 SCT027 OVC032 07/06 A2943 RMK AO2 PK WND 14036/1051 SLP966 T00720061 PWINO TSNO $
+ Add Your Business

PAKT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 134.45
(907) 247-8801

Common

CTAF 123.6
WHEN KTN FSS CLSD ACTVT MALSR RWY 11 & 29; HIRL RWY 11/29 - CTAF. PAPI RWY 11 & 29 OPR CONSLY.

Center

ANCHORAGE CENTER 118.5
LOW, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 118.5/284.6 (ANNETTE ISLAND RCAG).

Flight Service

Flight Service 121.5
(JNU)
Flight Service 122.2
(JNU)
Flight Service 123.6
(JNU)

Terminal Area Forecast

PAKT
Tue, 3/3 11:16 PM AKST
Tue, 3/3 11:00 PM AKST - Wed, 3/4 9:00 PM AKST
MVFR
11:00 PM AKST - 7:00 AM AKST
Light Rain
Overcast 1,500'
Scattered 600'
6sm
130° 13kts
Gusts 27kts
IFR
7:00 AM AKST - 11:00 AM AKST
Rain and Mist
Overcast 1,500'
Broken 600'
2sm
120° 15kts
MVFR
11:00 AM AKST - 9:00 PM AKST
Light Rain
Broken 1,500'
6sm
140° 7kts
TAF PAKT 040816Z 0408/0506 13013G27KT P6SM -RA SCT006 OVC015
   FM041600 12015KT 2SM RA BR BKN006 OVC015
   FM042000 14007KT 6SM -RA BKN015 AMD LTD TO CLD VIS AND WIND TIL 041500
PAKT
No NOTAM Available
No
0600-2130
ALASKA DOT&PF SOUTHCOAST REGION
6860 GLACIER HIGHWAY
JUNEAU, AK 99801
Phone: 907-465-1786
ALEX PUERA
1000 ARPT TERMINAL WAY
KETCHIKAN, AK 99901
Phone: 907-225-6800
KETCHIKAN FSS (KTN)
Toll Free: LC225-9481
KTN
--
WHEN KTN FSS CLSD ACTVT MALSR RWY 11 & 29; HIRL RWY 11/29 - CTAF. PAPI RWY 11 & 29 OPR CONSLY.
WHEN KTN FSS CLSD OPR CONSLY.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Beaching Gear
Cargo Handling

Runway 11/29

7500 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
207,000lbs
350,000lbs
--
  Runway 11 Runway 29
True Heading 136°316°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 55° 21' 41"N 55° 20' 48"N
Longitude 131° 43' 26"W 131° 41' 55"W
Elevation 85' 89'
Threshold Crossing Height 50 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights

Runway WNW/ESE

9500 ft. x 1500 ft.

WATER
NONE


--
--
--
--
  Runway WNW Runway ESE
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1TRRN CAUSES TURB ON ARR & DEP ROUTES.
A110-13USCG HELI 55-21-27.6N/131-42-19.8W; INVOF KETCHIKAN INTL ARPT & SEAPLAN BASE; MED-VAC MISSIONS ONLY - POC COMMANDER CG DISTRICT 17, 709 W 9TH ST, RM 661. BOX 25517 JUNEAU, AK 99802 - 907-463-2247/2000.
A110-16WX CAMERAS AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-17TWY C LGTS OTS INDEF.
A110-18PPR FOR LDG DURG UNATNDD HRS - FBO 907-531-9891 FOR ARNGMT & CALL OUT CHARGE.
A110-2ALERT: SPL ATC RULES PART 93 & STD VFR ARR & DEP PROC & PAT INFO - SEE REG NOTICE.
A110-21GA APRON; TWY C; NE SECTION OF MAIN APRON PCN 21/F/B/X/T.
A110-22DOCK W OF ARPT CLSD NOV 1 - APR 1; PPR OVNGT - AMGR; FERRY BTW ARPT & CITY OPR CONSLY WHEN ARPT ATNDD.
A110-4BIRDS ON & INVOF ARPT.
A110-5PRIOR TO OPS ON APRON/TWY ALL ACFT CTC KTN FSS & ADZ INTNS.
A110-6SFC COND RPRTS REFLECT CONDS WHILE ARPT ATNDD ONLY.
A110-7CTN AIR TAXI & BOATS IN HARBOR; FLOATING DEBRIS PSBL.
A110-8SNOW & ICE REMOVAL NA WHEN ARPT UNATTND.
A14ALEX PEURA
A23-11WX PMTG FOR LIGHT SINGLE/TWIN ENG.
A24LNDG FEE FOR GA ACFT UNDER 6000 LB & FLOAT PLANE USE OF SPB FLOAT.
A26ACR OPS MORE THAN 30 PAX NA IN EXCESS OF 15 MIN BFR OR AFT SKED ARR OR DEP WO PPR WITH AMGR & CFM ARFF SVC AVBL BFR LDG OR TKOF.
A30-11/29SAND USED TO ENHANCE FRICTION MAY NOT MEET FAA SPECS.
A39-11/29PCR VALUE: 510/F/B/X/T
A43-11PAPI UNUSBL 5 DEGS LEFT AND RIGHT OF CNTRLN.
A43-29PAPI UNUSBL BYD 6 NM.
A70-100LL0630-2030 - 122.95 OR 907-531-9891.
A76-BCHGRSKED ACR SVC AVBL; OTR TIMES PPR.
A81-APTWHEN KTN FSS CLSD ACTVT MALSR RWY 11 & 29; HIRL RWY 11/29 - CTAF. PAPI RWY 11 & 29 OPR CONSLY.
A81-BCNWHEN KTN FSS CLSD OPR CONSLY.
KETCHIKAN INTL (ICAO: PAKT, IATA: KTN) is a public airport located in KETCHIKAN, AK, US.
