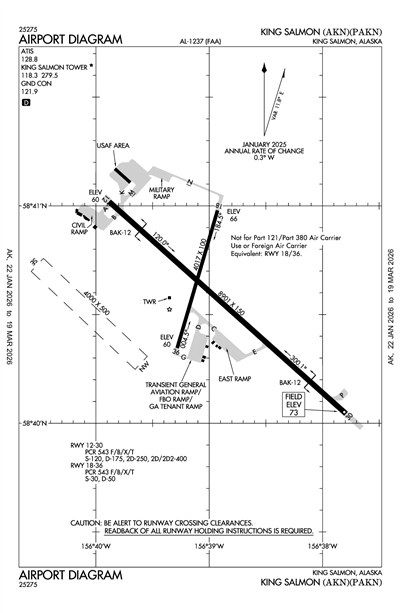

KING SALMON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAKN
ICAO PAKNIATA AKNLocal AKN
KING SALMON
PublicPUB

0 miles SE of KING SALMON, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
58° 40' 35"N 156° 38' 55"W
Elevation
73' MSL
Pattern Alt
1073' MSL
Mag Variation
12°E
Declination
11°E
Fuel
JET A, 100LL
FSS
KENAI (ENA)
Sectional
KODIAK
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PAKN VFR
6:54 PM AKST
Clear
10sm
-1°F
-14°F
N/A
Calm
AO2 SLPNO T11831256 PWINO FZRANO TSNO $
METAR PAKN 040354Z AUTO 00000KT 10SM CLR M18/M26 RMK AO2 SLPNO T11831256 PWINO FZRANO TSNO $
+ Add Your Business

PAKN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 128.8
ASOS 128.8
(907) 246-7506

Common

CTAF 121.9
CTAF 352.05. FREQ 121.9 SIMULCAST WITH 352.05.; WHEN ATCT CLSD ACTVT MALSR RWY 12; PAPI RWY 12 & 30; MIRL RWY 18/36; HIRL RWY 12/30 - CTAF.; MIL FIGHTER/EMERG DVRSN CTC WARRIOR/ELMENDORF SOF 395.15; NON FIGHTER/EMERG CTC KING SALMON OPS. 24 HR POINT MNTS CTAF DURG OPS HR.
UNICOM 122.95

Ground

KING SALMON GROUND 121.9
0800-2000 1 AUG-14 JUN. 0800-2200 15 JUN- 31 JUL.

Tower

KING SALMON TOWER 118.3
0800-2000 1 AUG-14 JUN. 0800-2200 15 JUN- 31 JUL.

Center

ANCHORAGE CENTER 124.8
LOW, DILLINGHAM RCAG IS BACKUP WHEN KING SALMON RCAG OTS.; APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 124.8/354.0 (KING SALMON RCAG).

Flight Service

Flight Service 121.5
(ENA)
Flight Service 121.9
(ENA)
Flight Service 122.2
(ENA)

Terminal Area Forecast

PAKN
Tue, 3/3 2:32 PM AKST
Tue, 3/3 3:00 PM AKST - Wed, 3/4 3:00 PM AKST
VFR
3:00 PM AKST - 9:00 PM AKST
Sky Clear
6sm
330° 7kts
VFR
9:00 PM AKST - 9:00 AM AKST
Scattered 2,500'
6sm
340° 6kts
VFR
9:00 AM AKST - 3:00 PM AKST
Few 10,000'
6sm
350° 6kts
TAF PAKN 032332Z 0400/0424 33007KT P6SM SKC
   FM040600 34006KT P6SM SCT025
   FM041800 35006KT P6SM FEW100
PAKN
EffectiveExpiresCategoryNOTAM
Domestic
3/1/26
1700Z
3/2/26
0500Z
!AKN 02/204 AKN SVC TWR CLSD MNT CTAF 121.9 2603011700-2603020500
2/24/26
1540Z
2/25/26
1540Z
!AKN 02/231 AKN APRON ALL FICON PATCHY ICE OBS AT 2602241540. 2602241540-2602251540
2/24/26
1540Z
2/25/26
1540Z
!AKN 02/230 AKN TWY ALL EXC A FICON PATCHY ICE OBS AT 2602241540. 2602241540-2602251540
2/24/26
1537Z
2/25/26
1537Z
Runway!AKN 02/229 AKN RWY 12 FICON 5/5/5 100 PCT WET OBS AT 2602241537. 2602241537-2602251537
2/24/26
1537Z
2/25/26
1537Z
Runway!AKN 02/228 AKN RWY 36 FICON 3/5/5 100 PCT FROST OBS AT 2602241537. 2602241537-2602251537
2/24/26
0200Z
3/1/26
0500Z
!AKN 02/205 AKN SVC TWR CLSD MNT CTAF 121.9 DLY 0200-0500
2602240200-2603010500
2/23/26
2100Z
2/28/26
2145Z
!AKN 02/206 AKN SVC TWR CLSD MNT CTAF 121.9 DLY 2100-2145
2602232100-2602282145
2/23/26
1911Z
5/23/26
2359Z
!AKN 02/221 AKN TWY A CLSD 2602231911-2605232359
2/21/26
1612Z
Runway!AKN 02/199 AKN RWY 30 PAPI U/S 2602211612-2603291500EST
FDC
2/20/26
2154Z
3/20/26
2154Z
!FDC 6/7686 AKN IAP U.S. DOD KING SALMON, KING SALMON, AK.
HI - ILS Z OR LOC Z RWY 12, AMDT 8...
PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AKN VORTAC OUT OF SERVICE. 2602202154-2603202154EST
2/20/26
2154Z
3/20/26
2154Z
!FDC 6/7685 AKN IAP KING SALMON, KING SALMON, AK.
ILS Y OR LOC Y RWY 12, AMDT 19A...
LOC BC RWY 30, AMDT 6A...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
AKN VORTAC AND AUB NDB OUT OF SERVICE.
2602202154-2603202154EST
2/4/26
2112Z
!FDC 6/0382 AKN IAP KING SALMON, KING SALMON, AK.
VOR Y OR TACAN Y RWY 12, AMDT 14...
VOR Y OR TACAN Y RWY 30, AMDT 12B...
TACAN PORTION NA,
AKN TACAN AZIMUTH OUT OF SERVICE. 2602042112-2603042112EST
Yes
0700-1700
ALASKA DOT&PF SOUTHCOAST REGION
PO BOX 112500
JUNEAU, AK 99811
Phone: 907-465-1763
FLOYD WILSON
PO BOX 65
KING SALMON, AK 99613
Phone: 907-246-3325
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
AKN
--
WHEN ATCT CLSD ACTVT MALSR RWY 12; PAPI RWY 12 & 30; MIRL RWY 18/36; HIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Cargo Handling

Runway 12/30

8901 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
175,000lbs
250,000lbs
400,000lbs
  Runway 12 Runway 30
True Heading 132°312°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition POOR POOR
Latitude 58° 41' 02"N 58° 40' 04"N
Longitude 156° 39' 53"W 156° 37' 48"W
Elevation 60' 73'
Threshold Crossing Height 66 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No

Runway 18/36

4017 ft. x 100 ft.
ASPH
Fair
GRVD
MED

30,000lbs
50,000lbs
--
--
  Runway 18 Runway 36
True Heading 196°16°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 58° 40' 60"N 58° 40' 22"N
Longitude 156° 38' 56"W 156° 39' 17"W
Elevation 66' 60'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway NW/SE

4000 ft. x 500 ft.

WATER
NONE


--
--
--
--
  Runway NW Runway SE
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10FIGHTER ARR EXP RDCD SEPN; SIMILAR APCH CHARCS & DALGT 3000 FT; DISSIMILAR APCH CHARCS & NGT 6000 FT; AHD/BHND FRMN LNDG 6000 FT.
A110-11600 FT SAFETY AREA AER 12.
A110-12RCR DURG 11TH AF FIGHTER FLYING WINDOW; COORD RCR WITH KING SALMON OPS 907-439-3001/907-439-6000. OPS RSTRD TO LOW APCH/FSL ONLY.
A110-14FLIGHT ORIG OUTSIDE AK REFER TO USAF FCG; CSTMS NOT AVBL.
A110-15SNOW/ICE REMOVAL & ARPT HAZ COND RPRTD DURG ATND HR.
A110-16USAF FAC CIV OPRD WITH LTD SUPPORT; CALL 24 HR PRIOR TO ARR FOR OPS HR; MIL CONFIRM FUEL RQMNTS 24-48 HR PRIOR.
A110-17MIL FIGHTER/EMERG DVRSN CTC WARRIOR/ELMENDORF SOF 395.15; NON FIGHTER/EMERG CTC KING SALMON OPS. 24 HR POINT MNTS CTAF DURG OPS HR.
A110-2FLOCKS OF LRG BIRDS INVOF DURG SEASON.
A110-20PVT JET PRKG SE SECTION OF E RAMP - AMGR FOR INFO.
A110-26GA APRON PAVEMENT CRUMBLING; PSBL FOD HAZ. JET ACFT BE ALERT DURG RUN UP TO AVOID JET WASH DMG.
A110-27WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-28TWY P CLSD. APRON SPOTS 4 - 7 N OF MIL HANGAR CLSD EXC PROP ACFT.
A110-29ARFF AVBL FOR PART 121 ACR INVOLVED IN ETOPS WITH 30 MIN NOTICE.
A110-3OFF PAVEMENT OPS BY ACFT & HEL NA AT ACR APRON. LNDG, TKOF OR PRKG FM DIRT OR GRASS NA.
A110-31NWS BLN LAUNCH FAC ON ARPT; SEE INSIDE BACK COVER FOR OPS DETAIL.
A110-32LOCKED WHEEL TURN NA ALL SFCS.
A110-33TSA REG ARPT; SEE 49 CFR 1542. ALL GATES & DOORS RMN SECURE ALL TIMES. TSNT OR UNFAMILIAR PILOTS - AMGR FOR INFO.
A110-34BUSINESS JET PRKG GTR THAN 1 HR 48 HR PPR.
A110-7CIV TSNT PRKG ON SE RAMP ONLY; OTR PRKG GTR THAN 48 HR RQRS PERMIT.
A26CLSD TO ACR OPS WITH MORE THAN 30 PAX SEATS EXC PPR IN WRITING - AMGR PO BOX 65 KING SALMON AK 99613.
A26-CARFF EQUIP STAFFED DURG ACR ACT ONLY.
A30-18/36NOT INSPD FOR MIL OPS. RWY 18/36 NOT AVBL FOR PART 121/380 SKED AND NON-SKED OPS WITH PAX CARRYING OPS MORE THAN 30 PAX SEATS. 1 IN DIP ON CNTRLN 1850 FT FM AER 36 EXTDS TO 3 IN DIP 25 FT WIDE ON W EDGE.
A30-NW/SEALSO USED BY BOATS. RWY NW/SE NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A39-12/30PCR VALUE: 543/F/B/X/T
A39-18/36PCR VALUE: 543/F/B/X/T
A47-12TOUCHDOWN RVR AVBL 0800-2000 1 AUG-14 JUN; 0800-2200 15 JUN- 31 JUL.
A70-100LL100LL & JET A AVBL AT SEAPLANE BASE FM TRUCK OR UNICOM 122.95.
A75-HMKD TSNT PRKG N END OF GA RAMP & E END OF CARGO RAMP.
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 12; PAPI RWY 12 & 30; MIRL RWY 18/36; HIRL RWY 12/30 - CTAF.
E100CTAF 352.05. FREQ 121.9 SIMULCAST WITH 352.05.
E60-12_BAK-12BAK-12 1190 FT FM THR; RWY 12 BAK-12 REQ 30 MIN NOTICE 950 FT RUNOUT.
E60-30_BAK-12BAK-12 1340 FT FM THR; BAK-12 REQ 30 MIN NOTICE 1200 FT RUNOUT.
KING SALMON (ICAO: PAKN, IATA: AKN) is a public airport located in KING SALMON, AK, US.
