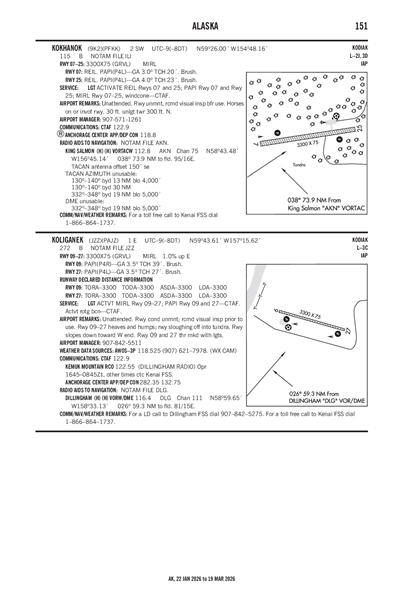

KOLIGANEK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAJZ
ICAO PAJZIATA KGKLocal JZZ
KOLIGANEK
PublicPUB

1 miles E of KOLIGANEK, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
59° 43' 36"N 157° 15' 37"W
Elevation
272' MSL
Pattern Alt
1272' MSL
Mag Variation
12°E
Declination
13°E
Fuel
None Listed
FSS
DILLINGHAM (DLG)
Sectional
KODIAK
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PANW (17nm) VFR
12:56 AM AKST
Clear
10sm
32°F
32°F
29.66"Hg
340° 8kts
AO2 SLPNO FZRANO $
METAR PANW 040956Z AUTO 34008KT 10SM CLR A2966 RMK AO2 SLPNO FZRANO $
+ Add Your Business

PAJZ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 118.525
(907) 621-7978

Common

CTAF 122.9
ACTVT ROTG BCN - CTAF.; ACTVT MIRL RWY 09/27; PAPI RWY 09 & 27 - CTAF.

Center

ANCHORAGE CENTER 132.75
LOW, KING SALMON RCAG IS BACKUP WHEN DILLINGHAM RCAG OTS.; APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQS 132.75/282.35 (DILLINGHAM RCAG).

Flight Service

Flight Service 122.55
(DLG), COMMUNICATIONS PRVDD BY DILLINGHAM FSS ON FREQ 122.55 0745-2345 (KEMUK MOUNTAIN RCO) OTHER TIMES CTC KENAI FSS.; MONITORED BY ENA FSS WHEN DLG FSS CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

PADL (56nm)
Tue, 3/3 8:30 PM AKST
Tue, 3/3 9:00 PM AKST - Wed, 3/4 9:00 PM AKST
MVFR
Temporary 9:00 PM AKST - 1:00 AM AKST
Broken 1,400'
6sm
Calm
VFR
9:00 PM AKST - 9:00 PM AKST
Few 1,400'
6sm
010° 6kts
TAF PADL 040530Z 0406/0506 01006KT P6SM FEW014
   TEMPO 0406/0410 P6SM BKN014
PAJZ
EffectiveExpiresCategoryNOTAM
Domestic
2/24/26
2120Z
!JZZ 02/005 JZZ SVC AUTOMATED WX BCST SYSTEM U/S 2602242120-2603281500EST
1/10/26
2341Z
!JZZ 01/003 JZZ SVC AUTOMATED WX BCST SYSTEM VIS UNREL 2601102341-2605301500EST
No
UNATNDD
ALASKA DOT & PF CENTRAL REGION
PO BOX 196900
ANCHORAGE, AK 99519
Phone: 907-269-0749
KEVIN HARDIN
BOX 250
DILLINGHAM, AK 99576
Phone: 907-842-5511
DILLINGHAM FSS (DLG)
Toll Free: LC842-5275
JZZ
--
ACTVT MIRL RWY 09/27; PAPI RWY 09 & 27 - CTAF.
ACTVT ROTG BCN - CTAF.
N/A
Yes
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 09/27

3300 ft. x 75 ft.
GRAVEL
Good
NONE
MED

--
--
--
--
  Runway 09 Runway 27
True Heading 106°286°
Traffic Pattern
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 59° 43' 41"N 59° 43' 32"N
Longitude 157° 16' 08"W 157° 15' 06"W
Elevation 237' 272'
Threshold Crossing Height 39 ft. AGL 27 ft. AGL
Visual Glide Path Angle 3.5° 3.5°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY COND UNMNT; RCMD VISUAL INSP PRIOR TO USE.
A110-3WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A30-09/27SLOPES DOWN TOWARD W END.
A33-09/27_SURFHEAVES & HUMPS; RWY SLOUGHING OFF INTO TUNDRA.
A42-09_MARKTHR MKD WITH LGTS.
A42-27_MARKTHR MKD WITH LGTS
A81-APTACTVT MIRL RWY 09/27; PAPI RWY 09 & 27 - CTAF.
A81-BCNACTVT ROTG BCN - CTAF.
KOLIGANEK (ICAO: PAJZ, IATA: JZZ) is a public airport located in KOLIGANEK, AK, US.
