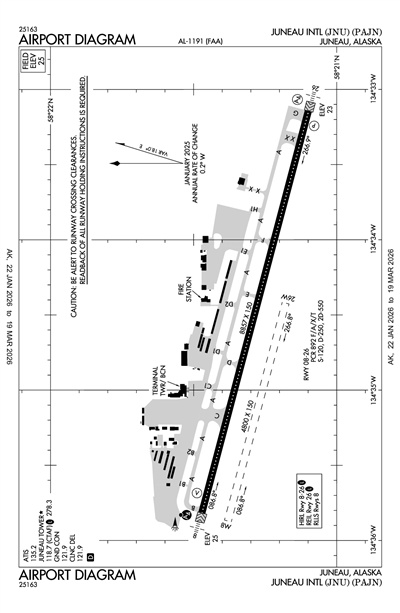

JUNEAU INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAJN
ICAO PAJNIATA JNULocal JNU
JUNEAU INTL
PublicPUB

7 miles NW of JUNEAU, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
58° 21' 17"N 134° 34' 42"W
Elevation
25' MSL
Pattern Alt
1025' MSL
Mag Variation
18°E
Declination
20°E
Fuel
JET A-1+, 100LL
FSS
JUNEAU (JNU)
Sectional
JUNEAU
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PAJN IFR
6:53 PM AKST
Light Snow and Mist
Overcast 4,900'
Broken 3,700'
Scattered 1,200'
2sm
21°F
19°F
29.50"Hg
260° 3kts
AO2 SNB01 SLPNO P0000 T10611072 $
METAR PAJN 040353Z COR 26003KT 2SM -SN BR SCT012 BKN037 OVC049 M06/M07 A2950 RMK AO2 SNB01 SLPNO P0000 T10611072 $
+ Add Your Business

PAJN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 135.2
ASOS (907) 789-1243

Common

CTAF 118.7
WHEN ATCT CLSD ACTVT MALSF RWY 08; REIL RWY 26; HIRL RWY 08/26 - CTAF. VASI RWY 08; PAPI RWY 26 OPR CONSLY.; WHEN ATCT CLSD ARPT ADZY SVC - CTAF.
UNICOM 122.95
FUEL SVC - UNICOM OR 907-789-0055/5622.

Clearance

Clearance Delivery 121.9

Ground

JUNEAU GROUND 121.9
1 APR - SEP 30 0600 - 2300, 1 OCT - MAR 31, 0700 - 2000.

Tower

JUNEAU TOWER 118.7
1 APR - SEP 30 0600 - 2300, 1 OCT - MAR 31, 0700 - 2000.
JUNEAU TOWER 120.7
1 APR - SEP 30 0600 - 2300, 1 OCT - MAR 31, 0700 - 2000., Secondary - SEASONAL USE ONLY

Center

ANCHORAGE CENTER 133.9
LOW/HIGH, APCH/DEP SVC PRVDD BY ANCHORAGE ARTCC ON FREQ 133.9 (MOUNT ROBERT BARRON RCAG).

Flight Service

Flight Service 122.15

Military

NG OPS 64.7
NG OPS 124.65

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

PAJN
Tue, 3/3 5:07 PM AKST
Tue, 3/3 5:00 PM AKST - Wed, 3/4 3:00 PM AKST
IFR
5:00 PM AKST - 7:00 PM AKST
Light Snow and Mist
Overcast 1,500'
Broken 900'
2sm
VRB° 4kts
VFR
Temporary 5:00 PM AKST - 7:00 PM AKST
Light Snow and Mist
Broken 4,000'
Scattered 900'
6sm
Calm
IFR
7:00 PM AKST - 3:00 AM AKST
Light Snow and Mist
Overcast 2,500'
Scattered 900'
2sm
070° 5kts
LIFR
3:00 AM AKST - 11:00 AM AKST
Snow
Overcast 1,000'
0.5sm
100° 3kts
IFR
11:00 AM AKST - 3:00 PM AKST
Light Freezing Drizzle
No Clouds
2sm
Calm
IFR
11:00 AM AKST - 3:00 PM AKST
Light Snow
Overcast 1,000'
2sm
110° 5kts
TAF PAJN 040207Z 0402/0424 VRB04KT 2SM -SN BR BKN009 OVC015
   TEMPO 0402/0404 6SM -SN BR SCT009 BKN040
   FM040400 07005KT 2SM -SN BR SCT009 OVC025 WS020/17025KT
   FM041200 10003KT 1/2SM SN OVC010
   FM042000 11005KT 2SM -SN OVC010
   PROB30 0420/0424 2SM -FZDZ
PAJN
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
1730Z
2/25/26
2330Z
!JNU 02/490 JNU SVC WIND SYSTEM EAGLE CREST NOT AVBL 2602251730-2602252330
2/25/26
0345Z
2/26/26
0345Z
!JNU 02/501 JNU TWY H1 CLSD 2602250345-2602260345
2/25/26
0343Z
2/26/26
0343Z
!JNU 02/500 JNU APRON ALL FICON 1/2IN WET SN BA MEDIUM TO POOR OBS AT 2602250343. 2602250343-2602260343
2/25/26
0342Z
2/26/26
0342Z
!JNU 02/499 JNU TWY ALL EXC H1 FICON 1/8IN SLUSH BA MEDIUM OBS AT 2602250342. 2602250342-2602260342
2/25/26
0341Z
2/26/26
0341Z
Runway!JNU 02/498 JNU RWY 08 FICON 5/5/5 100 PCT WET OBS AT 2602250341. 2602250341-2602260341
2/20/26
1748Z
3/7/26
1748Z
!JNU 02/390 JNU OBST TOWER LGT (ASR 1003201) 582217.00N1343708.00W (1.6NM WNW JNU) 157.2FT (142.1FT AGL) U/S 2602201748-2603071748
1/22/26
1855Z
!JNU 01/708 JNU NAV LOC TYPE DIRECTIONAL AID RWY 08 U/S 2601221855-2609271500EST
1/22/26
1751Z
3/26/26
0759Z
!JNU 01/705 JNU TWY G SIGN EAST FACING SIDE MISSING 2601221751-2603260759
1/22/26
1643Z
3/1/26
1500Z
Runway!JNU 01/700 JNU RWY 08W/26W WATERLANE CLSD 2601221643-2603011500
FDC
2/24/26
1800Z
!FDC 6/8801 JNU ODP JUNEAU INTL, JUNEAU, AK.
JUNEAU SEVEN DEPARTURE ...
SISTERS ISLAND TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SSR VORTAC OUT OF SERVICE. 2602241800-2603022200EST
2/24/26
1800Z
3/2/26
2200Z
!FDC 6/8797 JNU IAP JUNEAU INTL, JUNEAU, AK.
LDA X RWY 8, AMDT 12E...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SSR VORTAC OUT OF SERVICE. 2602241800-2603022200EST
2/24/26
1800Z
3/2/26
2200Z
!FDC 6/8794 JNU ODP JUNEAU INTL, JUNEAU, AK.
ASORT TWO DEPARTURE ...
DEPARTURE PROCEDURE DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SSR VORTAC OUT OF SERVICE. 2602241800-2603022200EST
1/28/26
1720Z
!FDC 6/8069 JNU SPECIAL JUNEAU INTL, JUNEAU, AK.
RNAV (GPS) T RWY 8, ORIG--A...
CIRCLING NA AT NIGHT.
2601281720-2801281719EST
1/22/26
0905Z
1/22/28
1837Z
!FDC 6/5803 JNU SID JUNEAU INTL, JUNEAU, AK.
JUNEAU SEVEN DEPARTURE (OBSTACLE) ...
JUNEAU SEVEN DEPARTURE (OBSTACLE)...SSR VORTAC CLIMB IN HOLD
PATTERN NA. PRIOR TO DEPARTURE ADVISE ATC IF UNABLE TO REACH MEA
FOR ROUTE OF FLIGHT BY SSR VORTAC.
ALL OTHER DATA REMAINS AS PUBLISHED 2601220905-2801221837EST
12/2/25
1323Z
!FDC 5/3113 JNU IAP JUNEAU INTL, JUNEAU, AK.
LDA X RWY 8, AMDT 12E...
PROCEDURE NA.
2512021323-2607141323EST
9/21/24
0136Z
!FDC 4/8830 JNU SPECIAL JUNEAU INTL, JUNEAU, AK.
LDA Z RWY 8, AMDT 11A...
PROCEDURE NA, PER FLIGHT CHECK.
2409210136-2609202330EST
Yes
ALL
CITY OF JUNEAU
155 S SEWARD
JUNEAU, AK 99801
Phone: 907-789-7821
ANDRES DELGADO
1873 SHELL SIMMONS DR, SUITE 200
JUNEAU, AK 99801
Phone: 907-789-7821
JUNEAU FSS (JNU)
Toll Free: 1-866-297-2236
JNU
--
WHEN ATCT CLSD ACTVT MALSF RWY 08; REIL RWY 26; HIRL RWY 08/26 - CTAF. VASI RWY 08; PAPI RWY 26 OPR CONSLY.
N/A
Yes - Lighted
Yes
Yes
Buoy, Hanger, Tie-Down
NOT a Landing Rights Airport
Airport of Entry
Major
Major
None
None
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction

Runway 08/26

8857 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
--
  Runway 08 Runway 26
True Heading 105°285°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 58° 21' 28"N 58° 21' 06"N
Longitude 134° 35' 49"W 134° 33' 09"W
Elevation 25' 23'
Threshold Crossing Height 38 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3.5° 3.5°
Visual Slope Indicator V2L P4L
Approach Lights MALSF MALS
Centerline Lights Yes Yes
Runway End Identifier Lights No Yes

Runway 08W/26W

4800 ft. x 150 ft.

WATER
NONE


--
--
--
--
  Runway 08W Runway 26W
True Heading 105°285°
Traffic Pattern
Markings
Markings Condition
Latitude 58° 21' 23"N 58° 21' 11"N
Longitude 134° 35' 52"W 134° 34' 25"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10JUNEAU FSS - LCL 907-789-7380.
A110-11TSNT PUB DOCK SW CORNER.
A110-13SEE SPL NOTICES & GENOT FOR INFO ON OPS IN JUNEAU AREA.
A110-15LENA POINT, PEDERSON HILL & SISTERS IS WX CAMERAS AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-20COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW 1C.
A110-21APRON TERM RAMP CLSD TO ROTORCRAFT. CUST RAMP APRON CLSD TO WINGSPAN GTR THAN 79 FT. INTL ROTORCRAFT USE E-1 NG RAMP.
A110-22FUEL SVC - UNICOM OR 907-789-0055/5622.
A110-3NG 24 HR PPR - C907-789-3366. WKDAY 0730-1600 CTC NG OPS 10 MIN BFR LNDG - 124.65.
A110-4WILDLIFE & BIRDS ON & INVOF ARPT.
A110-5BATTLESHIP IS RLLS GROUPING; CNTR LGT 582132.88N 1344012.22W. JDL LOC RLLS GROUPING; CNTR LGT 582132.02N 1343810.39W.
A110-6HVY HEL & ACFT ACT APR 15-OCT 1; FULL LEN GASTINEAU CHNL & WI 5 MI.
A110-7PARAGLIDING ACT 3 MI N; INVOF THUNDER MOUNTAIN & OVR GASTINEAU CHNL NEARS DOWNTOWN APR 15-OCT 1; 6000 FT & BLW.
A110-9TPA 1500 AGL FOR LARGE TURBINE ACFT; 1000 FT AGL FOR FIXED WING ACFT; 500 FT AGL FOR HELICOPTERS.
A30-08/26SAND USED FOR FRICTION MAY NOT MEET FAA SPECS.
A39-08/26PCR VALUE: 892/F/A/X/T
A43-08VASI UNUSBL BYD 06 DEGS LEFT OF CNTRLN. VASI ALIGNED 13 DEG R OF CNTRLN; NOT VIS ON CNTRLN.
A43-26RWY 26 PAPI UNUSBL BYD 2 NM DUE TO TRRN.
A49-08RLLS LGT: JNUB BATTLESHIP ISLAND, JNUA ENGINEERS CUT, JNU WETLANDS/FLATS.
A49-26NSTD; LEN 800 FT.
A71SINGLE/TWIN PROP ENG; TURBIN & AVIONICS.
A81-APTWHEN ATCT CLSD ACTVT MALSF RWY 08; REIL RWY 26; HIRL RWY 08/26 - CTAF. VASI RWY 08; PAPI RWY 26 OPR CONSLY.
A86WHEN ATCT CLSD ARPT ADZY SVC - CTAF.
JUNEAU INTL (ICAO: PAJN, IATA: JNU) is a public airport located in JUNEAU, AK, US.
